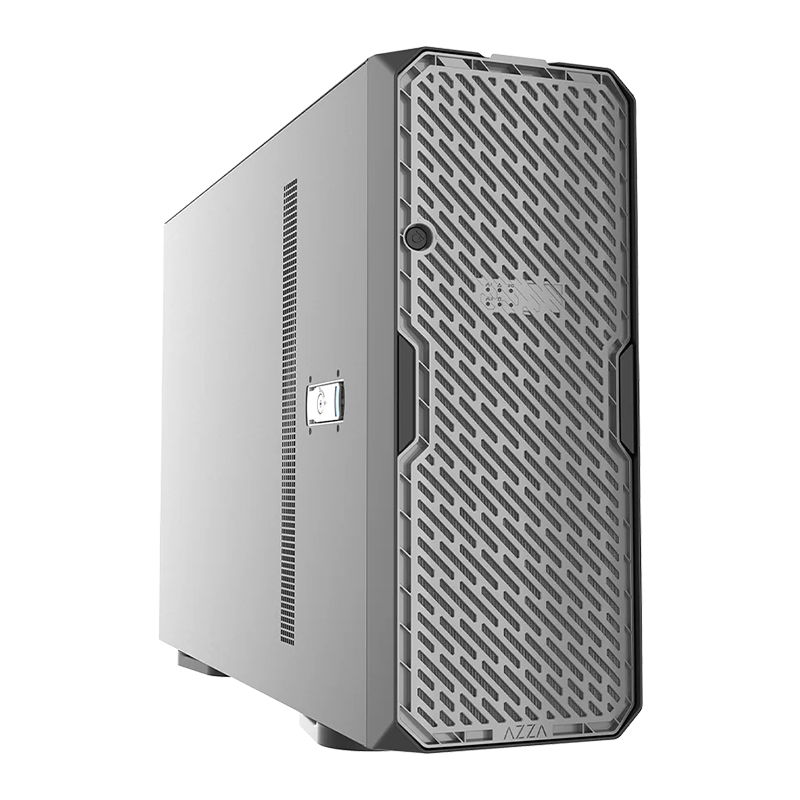

AZZA Trail Dual Mode ATX Case (680X-01 IW)

Chassis

1.0-1.2 mm SGCC

Front Panel

Plastic Panel

Side Panel

Left: Metal Right: Metal

Security

Intrusion Switch; Key Lock on Front Door (Included)

COMPATIBILITY

Max CPU Cooler Height

Up to 180mm

Max VGA card length

Up to 370mm long video card

Motherboard Support

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Expansion Slots

8 x Full Height and Full Length (Up to Double Width 4-GPU Support, EEB Only)

Card Retainer : Optional

STORAGE & I/O

Slim ODD

0

Drive Bays

External:2x5.25" and 1x3.5

Hot-swap: 2x 4-bay 3.5 SAS/SATA Hot-swap Module

Security

Intrusion Switch; Key Lock on Front Door (Included)

Expansion slots

8

Indicators

1 x Power Status

1 x HDD Activity

2 x LAN Activity

1 x Power

1 x UID

Front Ports

1 x Power On/Off

1 x SystemReset

2 x USB3.0

1 x Audio combo

1 x Type C

DIMENSION

Chassis Dimension (D*W*H)

680 x 438 x 175 mm Rack (when rack-mounted)

COOLING & SUPPORT

Middle (Default)

3x 120x38mm, PWM, 2500RPM(Included) or

360 Radiator(option)

Rear CPU Fan Module for Internal

2x 80x38mm, PWM, 6300RPM(Included)

Rear GPU Fan for External

2 x 80x38mm, PWM, 6000RPM(option)

Supports Water Cooling

Middle: up to 360mm

Power Supply

ATX PSU or 2U Redundant(2U CRPS)
