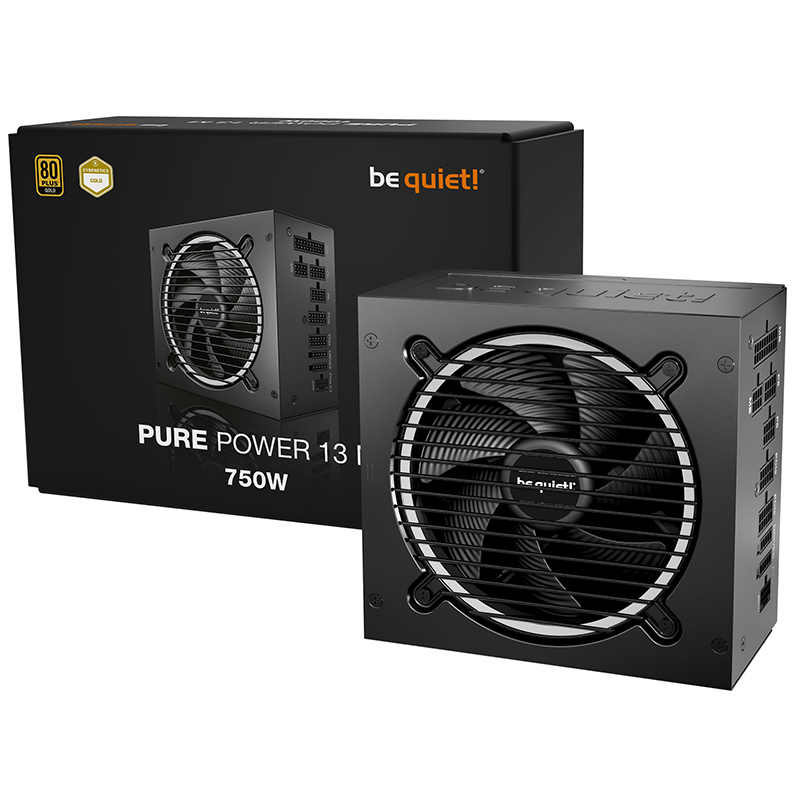

be quiet! 750W Pure Power 13 M 80+ Gold PCIe 5.1 ATX 3.1 Power Supply (BP026AU)

be quiet! 750W Pure Power 13 M 80+ Gold PCIe 5.1 ATX 3.1 Power Supply (BP026AU)
  • Power-Supply-PSU-be-quiet-750W-Pure-Power-13-M-80-Gold-PCIe-5-1-ATX-3-1-Power-Supply-BP026AU-6
  • Power-Supply-PSU-be-quiet-750W-Pure-Power-13-M-80-Gold-PCIe-5-1-ATX-3-1-Power-Supply-BP026AU-2
  • Power-Supply-PSU-be-quiet-750W-Pure-Power-13-M-80-Gold-PCIe-5-1-ATX-3-1-Power-Supply-BP026AU-4
  • Power-Supply-PSU-be-quiet-750W-Pure-Power-13-M-80-Gold-PCIe-5-1-ATX-3-1-Power-Supply-BP026AU-3
$145.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 66hrs and 4mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    be quiet! 750W Pure Power 13 M 80+ Gold PCIe 5.1 ATX 3.1 Power Supply (BP026AU)
  • Model Number:
    BP026AU
  • Brand:
  • Warranty Period:
    10 Year

Description

Power-Supply-PSU-be-quiet-750W-Pure-Power-13-M-80-Gold-PCIe-5-1-ATX-3-1-Power-Supply-BP026AU-1



SPECIFICATIONS:

GENERAL DATA


Model

Pure Power 13 M | 750W

Continuous power (W)

750

Peak power (W)

820

Form factor

Version 3.1

Form factor EPS 12V

Version 2.92

Topology

LLC + SR + DC/DC

Voltage (Vac)

100 - 240

Frequency (Hz)

50 - 60

Input current (A)

10 / 5

Power factor at 100% load

>0.98

Modern standby

Power consumption in standby (W)

<0.1

Average life time (h / 25°C)

>100,000

Operating temperature up to (°C)

40

EFFICIENCY


80 PLUS certification

Gold

Efficiency (%) at 230V, 2% load

71.9

Efficiency (%) at 230V, 10% load

90.6

Efficiency (%) at 230V, 20% load

93.4

Efficiency (%) at 230V, 50% load

94.3

Efficiency (%) at 230V, 100% load

92.6

FAN AND COOLING TECHNOLOGY


Fan

Silence-optimized be quiet! fan

Fan size (mm)

120

Bearing technology

Rifle

Motor technology

4-pole fan motor

Max. fan speed (rpm)

1800

dB(A) at 20% load

14.8

dB(A) at 50% load

14.8

dB(A) at 100% load

20.8

OUTPUT


12V single rail operation

+3.3V (A)

20

+5V (A)

20

+12V1 (A)

62.5

+12V2 (A)

N/A

+12V3 (A)

N/A

+12V4 (A)

N/A

+12V5 (A)

N/A

+12V6 (A)

N/A

-12V (A)

0,3

+5Vsb (A)

3

Max. combined power 12V (W)

750

Max. combined power 12V-2x6 (W)

600

Max. combined power 3.3V + 5V (W)

120

Hold-up time at 100% load (ms)

20.9

Hold-up time at 80% load (ms)

28.62

Power good signal (ms)

100 - 150

CABLES AND CONNECTORS


Modular cables

Sleeved cables

Flat cables

Maximum cable length (cm)

95

Cable length to motherboard   (cm)

55

No. of cables

8

ATX-Motherboard (20+4-pin)

1

P4+4 (CPU)

1

P8 (CPU)

1

12V-2x6 cables

1

PCI-e 6+2-pin (GPU)

4

SATA

6

PATA

2

PROTECTION


OTP (over temperature protection)

OCP (over current protection)

OPP (over power protection)

SCP (short circuit protection)

OVP (over Voltage protection)

UVP (under Voltage protection)

SIP (Surge & Inrush protection)

SAFETY CERTIFICATION


BSMI

CB

CCC

CE

cTUVus

CU

FCC

RCM

TÜV

UKCA

ENVIRONMENTAL DIRECTIVES


Energy Star

8.0

ErP

WEEE

RoHS

SCOPE OF DELIVERY


Screws

Cable ties

User manual languages

CN, DE, EN, ES, FR, JP, PL, RU, TW

CASING


Dimensions without cable (L x W x H), (mm)

160 x 150 x 86

Weight (kg)

2.46

Color

Black
