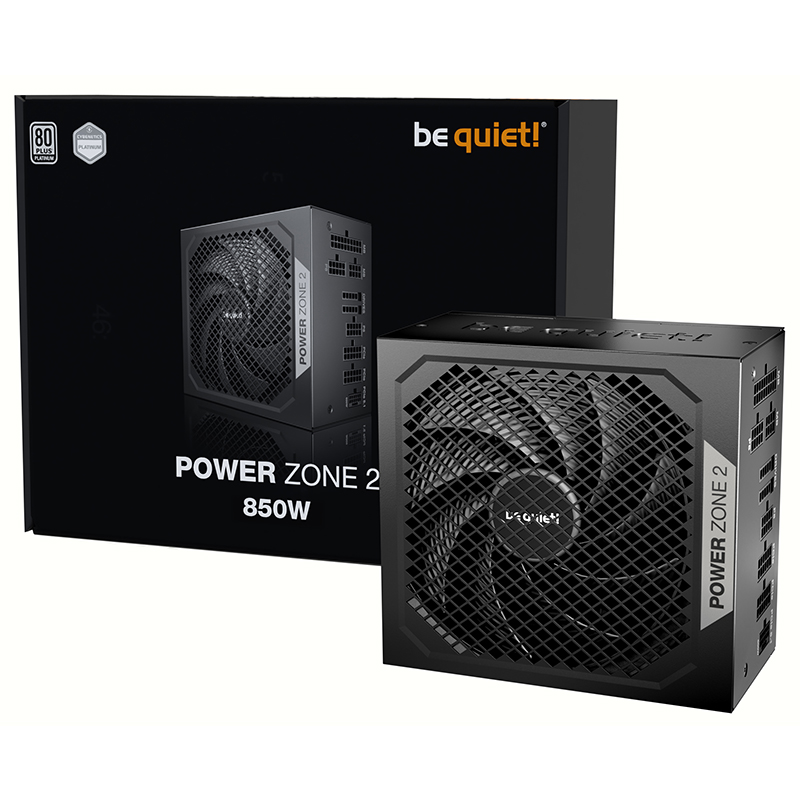

be quiet! 850W Power Zone 2 80+ Platinum Cybenetics PCIe 5.1 ATX 3.1 Power Supply (BP007AU)

be quiet! 850W Power Zone 2 80+ Platinum Cybenetics PCIe 5.1 ATX 3.1 Power Supply (BP007AU)
  • Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-8
  • Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-2
  • Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-3
  • Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-4
  • Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-6
  • Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-5
$249.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 54hrs and 52mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    be quiet! 850W Power Zone 2 80+ Platinum Cybenetics PCIe 5.1 ATX 3.1 Power Supply (BP007AU)
  • Model Number:
    BP007AU
  • Brand:
  • Warranty Period:
    10 Year

Description

Power-Supply-PSU-be-quiet-850W-Power-Zone-2-80-Platinum-Cybenetics-PCIe-5-1-ATX-3-1-Power-Supply-BP007AU-1




SPECIFICATIONS:

GENERAL DATA


Model

Power Zone 2 850W

Continuous power (W)

850

Peak power (W)

920

Form factor

Version 3.1

Form factor EPS 12V

Version 2.92

Topology

LLC + SR + DC/DC

Voltage (Vac)

100 - 240

Frequency (Hz)

50 - 60

Input current (A)

10 / 5

Power factor at 100% load

>0.98

Modern standby

✓

Power consumption in standby (W)

<0.18

Average life time (h / 25°C)

>100,000

Operating temperature up to (°C)

40

EFFICIENCY


80 PLUS certification

Platinum

Efficiency (%) at 230V, 2% load

68.3

Efficiency (%) at 230V, 10% load

89.9

Efficiency (%) at 230V, 20% load

93.0

Efficiency (%) at 230V, 50% load

94.1

Efficiency (%) at 230V, 100% load

92.3

FAN AND COOLING TECHNOLOGY


Cybenetics Noise Rating

A+

Fan

Pure Wings 3

Fan size (mm)

140

Bearing technology

Rifle

Motor technology

4-pole fan motor

Max. fan speed (rpm)

2100

dB(A) at 10% load

6.5

dB(A) at 20% load

6.5

dB(A) at 50% load

6.5

dB(A) at 100% load

24.9

OUTPUT


12V single rail operation

✓

+3.3V (A)

20

+5V (A)

20

+12V1 (A)

70.8

+12V2 (A)

N/A

+12V3 (A)

N/A

+12V4 (A)

N/A

+12V5 (A)

N/A

+12V6 (A)

N/A

-12V (A)

0.5

+5Vsb (A)

3

Max. combined power 12V (W)

849.6

Max. combined power 12V-2x6 (W)

600

Max. combined power 3.3V + 5V (W)

120

Hold-up time at 100% load (ms)

21.1

Hold-up time at 80% load (ms)

29.0

Power good signal (ms)

100 - 150

CABLES AND CONNECTORS


Modular cables

✓

Sleeved cables

✓

Flat cables

✓

Maximum cable length (cm)

100

Cable length to motherboard (cm)

60

No. of cables

8

ATX-Motherboard (20+4-pin)

1

P4+4 (CPU)

1

P8 (CPU)

1

P4 (CPU)

1

12V-2x6 cables

1

PCI-e 6+2-pin (GPU)

3

SATA

7

PATA

1

PROTECTION


OTP (over temperature protection)

✓

OCP (over current protection)

✓

OPP (over power protection)

✓

SCP (short circuit protection)

✓

OVP (over Voltage protection)

✓

UVP (under Voltage protection)

✓

SIP (Surge & Inrush protection)

✓

SAFETY CERTIFICATION


CB

✓

CE

✓

cTUVus

✓

CU

✓

FCC

✓

TÜV

✓

UKCA

✓

ENVIRONMENTAL DIRECTIVES


Energy Star

8.0

ErP

✓

WEEE

✓

RoHS

✓

Triman

✓

SCOPE OF DELIVERY


Screws

✓

Cable ties

✓

User manual languages

DE, EN, FR, PL, ES, RU, UA

CASING


Dimensions without cable (L x W x H), (mm)

160 x 150 x 86

Color

Black
