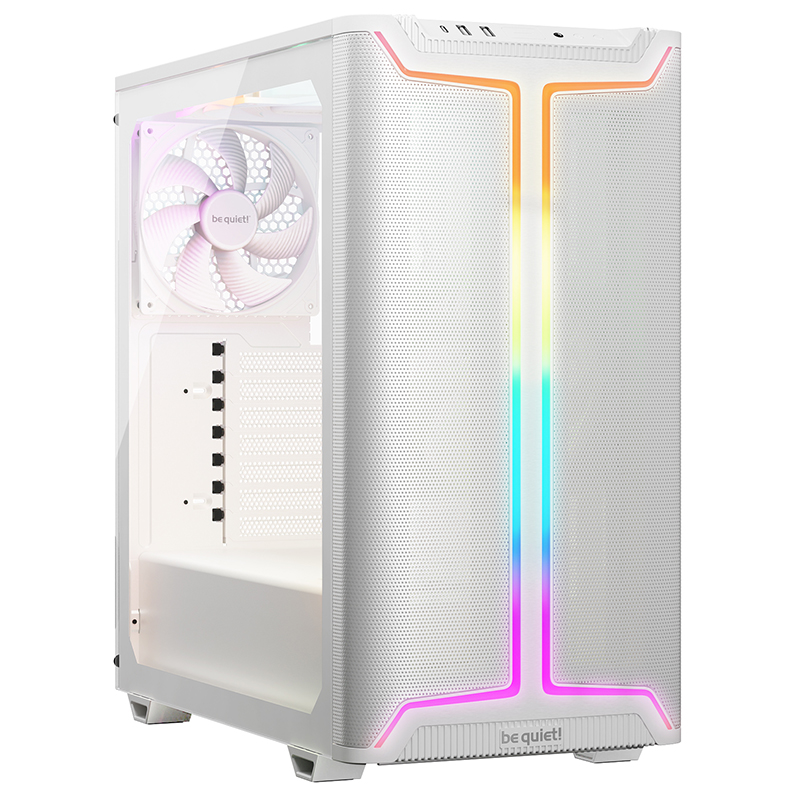

be Quiet! Pure Base 501 DX ATX Case - White (BGW77)

Name: be Quiet! Pure Base 501 DX ATX Case - White (BGW77)
Brand: Be Quiet
SKU: 84180
Price: 109.00 AUD
Availability: InStock

Pure Base 501 DX White case: ATX/M‑ATX/mini‑ITX support, 450 × 231 × 463 mm, 7 slots, 3×140 mm PWM fans (1200 rpm, 21.9 dB), up to 6 fans, optional radiators, 2×3.5″ + 5×2.5″ bays, USB‑C, 2 USB‑A, HD‑audio, glass side, anti‑vibration HDD/PSU, CE/UKCA.

$109.00

Was: ~~$149.0~~

Save $40.0

or 4x fortnightly payments of $330 with ZipPay
Learn more

- +

Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

Wish Add to Wishlist

Buy Now, Pay Later:

Click & Collect

Your store is set to:

Loading... Contact Store Question Mark Delays

Same Day Dispatch

Order within 11hrs and 13mins

Question Mark Delays

Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

GENERAL DATA
Model	Pure Base 501 DX White
Color option	White
Motherboard compatibility	ATX / M-ATX / Mini-ITX
Case size excl. stands (L x W x H), (mm)	450 x 231 x 449
Case size incl. stands (L x W x H), (mm)	450 x 231 x 463
Volume (l)	39.2
PSU form factor	ATX PS/2
Net weight (kg)	7.9
Expansion slots	7
PRE-INSTALLED FANS
Fan at top	1x Pure Wings 3 140mm PWM White
Fan at front	1x Pure Wings 3 140mm PWM White
Fan at rear	1x Pure Wings 3 140mm PWM White
Dimensions (L x W x H), (mm)	140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm)	1200
Airflow at 100% PWM / 12V (CFM / m3/h)	57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O)	0.96
Noise level at 100% PWM / 12V (dB(A))	21.9
Voltage range (V DC)	5 - 13.2
Input power (W)	3.6
Input current (A)	0.06
Connector	4-pin PWM
Lifespan (h / 25°C)	80,000
MAXIMUM FAN INSTALLATION
Maximum fans	6
Top (mm)	2x 140 / 2x 120
Front (mm)	2x 140 / 3x 120
Rear (mm)	1x 140 / 1x 120
OPTIONAL RADIATOR INSTALLATION
Top (mm)	120 / 240
Front (mm)	120 / 140 / 240 / 280 / 360
Rear (mm)	120 / 140
PSU COMPATIBILITY
Maximum dimensions excl. bottom fan (mm)	200
Maximum dimensions incl. bottom fan (mm)	180
GRAPHICS CARD
HDD cage (in height of graphics card) installed (mm)	368
HDD cage (in height of graphics card) removed (mm)	368
Maximum PCIe slots with vertical graphics card (pcs.)	5
DRIVE BAY CAPACITY
3.5 slots (scope of delivery)	2
3.5 slots (max.)	2
2.5 slots (scope of delivery)	5
2.5 slots (max.)	5
I/O PANEL
USB 3.2 Gen. 2 Type C	1
USB 3.2 Type A	2
HD Audio I/O	Mic + Audio
INSULATION AND DAMPING
Side panel insulation mats	✓
Anti-vibration decoupled HDD	✓
Anti-vibration decoupled PSU	✓
SCOPE OF DELIVERY
Screw set (Drives/Motherboard)	✓
Additional standoffs (pcs.)	1
LED strips (pcs.)	2
Cable ties (pcs.)	12
REMOVEABLE DUST FILTERS
Top	1
Front	1
Bottom	1
MATERIAL
Top cover	Steel
Front panel	ABS
Side panel	Steel
Side panel window	Glass
Stands	ABS
SAFETY CERTIFICATION
Approvals	CE, UKCA
ENVIRONMENTAL DIRECTIVES
RoHS	✓
WEEE	✓
Triman	✓

Product Name:

be Quiet! Pure Base 501 DX ATX Case - White (BGW77)
Model Number:

BGW77
Brand:

Be Quiet
Warranty Period:

3 Year
