GENERAL DATA |
|

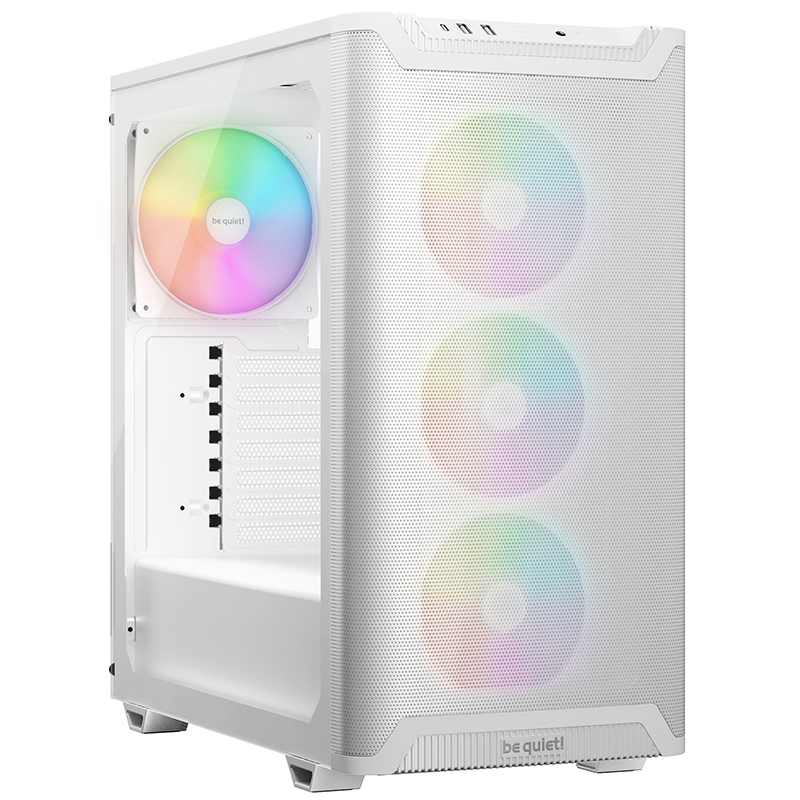

Model | Pure Base 501 LX White |
Color option | White |
Motherboard compatibility | ATX / M-ATX / Mini-ITX |
Case size excl. stands (L x W x H), (mm) | 450 x 231 x 449 |
Case size incl. stands (L x W x H), (mm) | 450 x 231 x 463 |
Volume (l) | 39.2 |
PSU form factor | ATX PS/2 |
Net weight (kg) | 7.9 |
Expansion slots | 7 |
PRE-INSTALLED FANS |
|
Fan at front | 3x Light Wings LX 120mm PWM White |
Fan at rear | 1x Light Wings LX 140mm PWM White |
Dimensions (L x W x H), (mm) | Front: 120 x 25 x 120 / Rear: 140 x 25 x 140 |
Fan speed at 100% PWM / 12V (rpm) | 1600 / 1200 |
Airflow at 100% PWM / 12V (CFM / m3/h) | 51.5 / 87.5 | 56.0 / 95.0 |
Air Pressure at 100% PWM / 12V (mm H2O) | 1.34 / 0.90 |
Noise level at 100% PWM / 12V (dB(A)) | 25.5 / 22.9 |
Voltage range (V DC) | 5 - 13.2 |
Input power (W) | 3.8 / 3.6 |
Input current (A) | 0.10 / 0.09 |
Connector | 4-pin PWM |
Lifespan (h / 25°C) | 60,000 |
MAXIMUM FAN INSTALLATION |
|
Maximum fans | 6 |
Top (mm) | 2x 140 / 2x 120 |
Front (mm) | 2x 140 / 3x 120 |
Rear (mm) | 1x 140 / 1x 120 |
OPTIONAL RADIATOR INSTALLATION |
|
Top (mm) | 120 / 240 |
Front (mm) | 120 / 140 / 240 / 280 / 360 |
Rear (mm) | 120 / 140 |
PSU COMPATIBILITY |
|
Maximum dimensions excl. bottom fan (mm) | 200 |
Maximum dimensions incl. bottom fan (mm) | 180 |
GRAPHICS CARD |
|
HDD cage (in height of graphics card) installed (mm) | 368 |
HDD cage (in height of graphics card) removed (mm) | 368 |
Maximum PCIe slots with vertical graphics card (pcs.) | 5 |
DRIVE BAY CAPACITY |
|
3.5 slots (scope of delivery) | 2 |
3.5 slots (max.) | 2 |
2.5 slots (scope of delivery) | 5 |
2.5 slots (max.) | 5 |
COOLING |
|
Max.construction height of CPU cooler unit (mm) | 178 |
I/O PANEL |
|
USB 3.2 Gen. 2 Type C | 1 |
USB 3.2 Type A | 2 |
HD Audio I/O | Mic + Audio |
INSULATION AND DAMPING |
|
Top panel insulation mats | ✓ |
Side panel insulation mats | ✓ |
Anti-vibration decoupled HDD | ✓ |
Anti-vibration decoupled fan | ✓ |
Anti-vibration decoupled PSU | ✓ |
Anti-vibration decoupled motherboard-tray | ✓ |
SCOPE OF DELIVERY |
|
Screw set (Drives/Motherboard) | ✓ |
Additional standoffs (pcs.) | 1 |
Cable ties (pcs.) | 12 |
REMOVEABLE DUST FILTERS |
|
Top | 1 |
Front | 1 |
Bottom | 1 |
MATERIAL |
|
Top cover | Steel |
Front panel | ABS |
Side panel | Steel |
Side panel window | Glass |
Stands | ABS |
SAFETY CERTIFICATION |
|
Approvals | CE, UKCA |
ENVIRONMENTAL DIRECTIVES |
|
RoHS | ✓ |
WEEE | ✓ |
Triman | ✓ |
