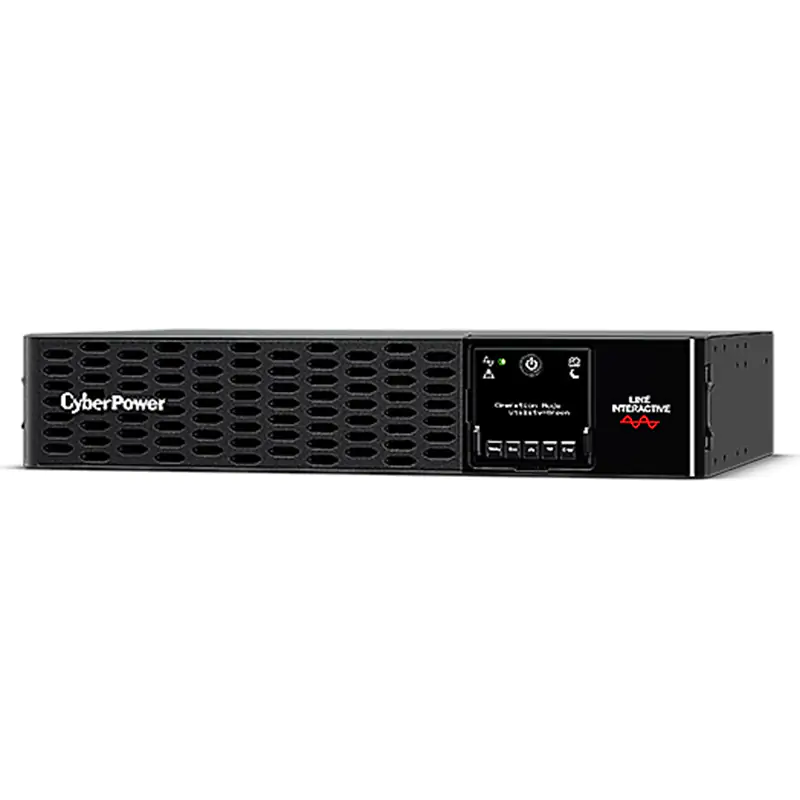

CyberPower PRO Rack/Tower LCD 1500VA/1500W (10A) 2U Line Interactive U
CyberPower PR1500ERTXL2U with rackmount design guarantees power backup protection for home theatre systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
FEATURES
Line-interactive UPS Topology
Energy Saving Technology
Active PFC Compatible
Pure Sine Wave Output
Night Mode Design
Tool-less Battery Replacement
High Output Power Factor
Automatic Voltage Regulation (AVR)
Overload Protection
Critical/Non-critical Load Outlets
Hot-swappable Batteries
Extended Battery Module (EBM)
Surge and Spike Protection
EMI and RFI Filtration
LCD Status Display
USB Connectivity Port
Serial Connectivity Port
Emergency Power Off (EPO)
PortPowerPanel® Management Software
SNMP/HTTP Remote Management Capability (Optional)
Rack/Tower Convertible Configurations
Specifications
GENERAL
Phase
Single Phase
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS™ Bypass Technology
Active PFC Compatibility
Yes
INPUT
Generator Compatibility
Yes
Nominal Input Voltage ( Vac )
220
230
240
Input Voltage Range ( Vac )
159 ~ 288
Adjustable Voltage Range ( Vac )
151 ~ 302 Vac
Input Frequency ( Hz )
50 ± 3
60 ± 3
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
10
Input Connector Type
IEC C14
Detachable Power Cord Plug Type
AU
Power Cord Length (ft.)
10
Power Cord Length (m.)
3.05
OUTPUT
Capacity (VA)
1500
Capacity (Watts)
1500
On Battery Waveform
Pure Sine Wave
On Battery Voltage(s) ( Vac )
220 ± 5%
230 ± 5%
240 ± 5%
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Power Factor
1
Automatic Voltage Regulation (AVR)
Double Boost, Single Buck
Overload Protection
Internal Current Limiting , Circuit Breaker
Outlet(s) - Total
10
Outlet Type
IEC C13 x 10
Outlet(s) - Battery & Surge Protected
10
Outlet(s) - Critical Load (CL)
5
Outlet(s) - Non-Critical Load (NCL)
5
Typical Transfer Time ( ms )
4
BATTERY
Runtime at Half Load ( min )
19.3
Runtime at Full Load ( min )
6.5
Typical Recharge Time ( Hours )
3
Start On Battery
Yes
User-replaceable
Yes
Hot-swappable
Yes
Battery Type
Sealed Lead-acid
Battery Cartridge
RBP0129
RBP Quantity ( pcs )
1
Extended Battery Module (EBM)
BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs )
Unlimited
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
2430
EMI/RFI Filtration
Yes
Network Protection RJ45
1-in, 1-out
MANAGEMENT & COMMUNICATIONS
LCD Panel
Yes
LCD Orientation
Rotatable LCD panel
LCD Information Display
Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Event & Log
