TECHNICAL INFORMATION |
|
Number of Screens | 1 |
Screen Size Class | 24" |
Viewable Screen Size | 23.8" |
Screen Mode | Full HD |
Panel Technology | In-plane Switching (IPS) Technology |
Response Time Details | 5 ms GTG (Fast) 8 ms GTG |
Aspect Ratio | 16:9 |
Pixel Pitch | 0.27450 mm x 0.27450 mm |
Horizontal Viewing Angle | 178° |
Vertical Viewing Angle | 178° |
Mount Type | Panel Mount |
HDCP Supported | Yes |
Maximum Adjustable Height | 150 mm |
Tilt Angle | -5° to 21° |
Swivel Angle | -45° to 45° |
Pivot Angle | +/-90° |
Features | Anti-glare Arsenic-free Glass BFR Free Cable Lock Slot Flicker-free Low Blue Light Mercury-free PVC Free Security Lock |
Adjustable Stand | Yes |
Stand Adjustments | Height Pivot Swivel Tilt |
Stand Included | Yes |
Pivot | Yes |
Glass Hardness | 3H |
Surface Treatment | Anti-glare |
Flicker Free | Yes |
Display Screen Type | Flat Panel |
VIDEO |
|
Maximum Resolution | 1920 x 1080 |
Standard Refresh Rate | 120 Hz |
Colour Supported | 16.7 Million Colours |
Native Contrast Ratio | 1,500:1 |
Brightness | 300 cd/m² |
Color Gamut | 99% BT.709 (CIE 1931) 99% sRGB (CIE 1931) |
Maximum Preset Resolution | 1920 x 1080 at 120 Hz |
Pixel Per Inch (PPI) | 93 |
Colour Depth | 8-bit (6-bit + FRC) |
INTERFACES/PORTS |
|
HDMI | Yes |
HDMI Version | 1.4 |
USB | Yes |
DisplayPort | Yes |
USB Type-C | Yes |
Number of HDMI Inputs | 1 |
Total Number of HDMI Ports | 1 |
Number of USB Ports | 5 |
Number of DisplayPorts | 1 |
Total Number of USB Type-C Ports | 2 |
USB Type-C (Power Delivery) Downstream | 15 W |
Number of USB Type-C (Power Delivery) Ports | 2 |
Number of DisplayPort 1.4 (HDCP 1.4) | 1 |
DisplayPort Input | Yes |
Number of HDMI 1.4 (HDCP 1.4) | 1 |
USB Type-B | Yes |
Number of USB Type-C Downstream Ports | 2 |
Number of USB Type-A Downstream Ports (Rear) | 2 |
Number of USB Type-B Upstream Ports (Rear) | 1 |
Number of USB Type-C Downstream Ports (Front) | 2 |
USB Type-A (Front) | No |
USB Type-A (Rear) | Yes |
USB Type-A Downstream Data Rate (Rear) | 640 MB/s |
USB Type-B Upstream Data Rate (Rear) | 640 MB/s |
USB Type-C (Front) | Yes |
USB Type-C Downstream Data Rate (Front) | 640 MB/s |
USB Type-C Power Delivery Downstream (Front) | 15 W |
Interface/Port Details | 1 HDMI port/s (HDCP 1.4) (Supports up to 1920 x 1080,120 Hz as specified in HDMI 1.4) 1 DisplayPort 1.4 (HDCP 1.4) port/s 2 USB Type-A 5Gbps downstream port/s 1 USB Type-B 5Gbps upstream port/s 2 USB-C 5Gbps downstream port/s, Power Charging up to 15 W |
Network (RJ-45) | No |
BUILT-IN DEVICES |
|
Built-in Devices | USB Hub |
Webcam | No |
ENVIRONMENTAL CONDITIONS |
|
Operating Temperature Range | 0°C to 40°C |
Non-operating Temperature Range | -20°C to 60°C |
Operating Humidity Range | 10% to 80% (Non-condensing) |
Non-operating Humidity Range | 5% to 90% (Non-condensing) |
Maximum Operating Altitude | 5 km |
Maximum Non-operating Altitude | 12.19 km |
POWER DESCRIPTION |
|
Input Voltage Range | 100V AC to 240V AC |
Operating Power Consumption | 11.70 W |
Standby Power Consumption | 300 mW |
Off-Mode Power Consumption | 300 mW |
Frequency | 50 Hz 60 Hz |
Maximum Power Consumption | 74 W |
Voltage Current | 1.50 A |
Input Voltage Range/Current Details | 100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.5 A |
PHYSICAL CHARACTERISTICS |
|
VESA Mount Compatible | Yes |
VESA Mount Standard | 100 x 100 |
Color Family | Grey |
Product Color | Dark Grey |
Height | 314.23 mm |
Width | 538.64 mm |
Depth | 50.03 mm |
Height with Stand | 496.53 mm |
Width with Stand | 538.64 mm |
Depth with Stand | 181.75 mm |
Compressed Height with Stand | 364 mm |
Extended Height with Stand | 496.53 mm |
Bezel Width (Top) | 5.80 mm |
Bezel Width (Bottom) | 12 mm |
Bezel Width (Left) | 5.80 mm |
Bezel Width (Right) | 5.80 mm |
Weight (Approximate) | 2.96 kg |
Stand Height | 410.80 mm |
Stand Width | 249.80 mm |
Stand Depth | 181.75 mm |
Weight (with Packaging) with Stand | 6.66 kg |
Weight (with Packaging) without Stand | 5.15 kg |
Weight with Stand & Cables (Approximate) | 4.87 kg |
MISCELLANEOUS |
|

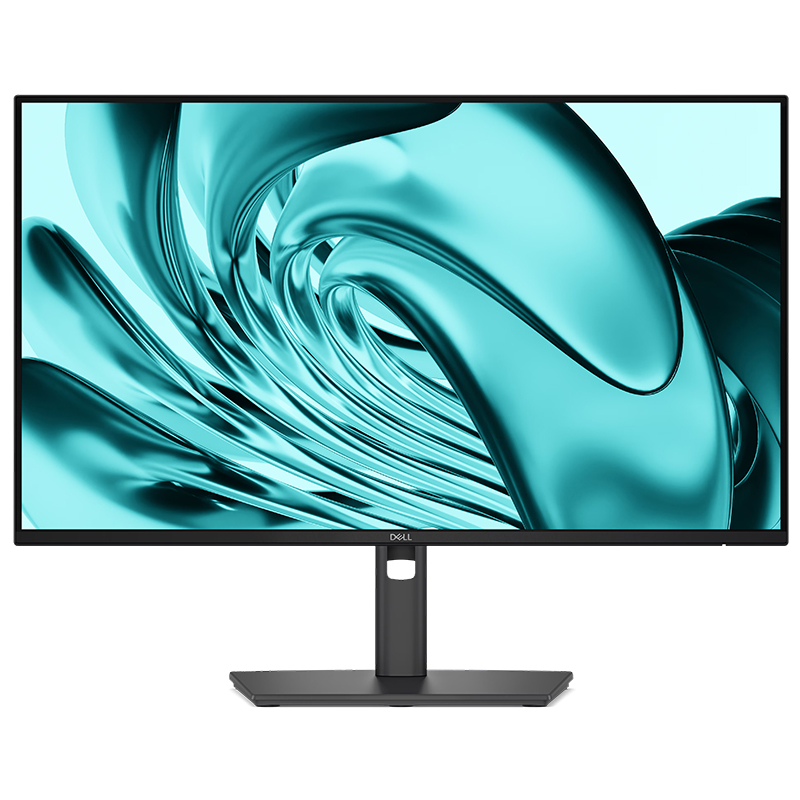

Package Contents | Pro P 24 Monitor - P2426H Stand Power cable 1 x DisplayPort-DisplayPort cable - 1.80 m 1 x HDMI cable - 1.80 m (for selected countries only) 1 x USB Type-A to Type-B upstream cable - 1.80 m QR card Safety, Environmental, and Regulatory Information |
Certifications & Standards | BFR/PVC free monitor (excluding external cables) Arsenic-Free glass and Mercury-Free for the panel only California CEC Meets NFPA 99 leakage current requirements. Dell and the Environment Product Safety, EMC and Environmental Datasheets Dell Regulatory Compliance Home Page GS Mark |
Platform Supported | Windows |
Energy Star | Yes |
TAA Compliant | Yes |
TCO Certified | Yes |
Eye Comfort Certification | Yes |
Eye Comfort Rating | 4 Star |
Dell Display and Peripheral Manager Compatibility | Yes |
Remote Asset Management | Dell Display and Peripheral Manager (DDPM) |
Cable Type Included | Power cable 1 x DisplayPort-DisplayPort cable - 1.80 m 1 x HDMI cable - 1.80 m (for selected countries only) 1 x USB Type-A to Type-B upstream cable - 1.80 m |
Environmentally Friendly | Yes |
Environmental Certification | China Environmental United Certification Center (CEC) Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) TCO Certified 10.0 TCO Certified Edge |
Energy Efficiency Certification | ENERGY STAR 8.0 |
Energy Efficiency Compliance | Energy-related Products Directive Lot 5 (ErP Lot 5) Korea Minimum Energy Performance Standards (MEPS) Minimum Energy Performance Standards (MEPS) Environmental Compliance China Restriction of Hazardous Substances (China RoHS) Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) |
AUDIO |
|
Speakers | Yes |
