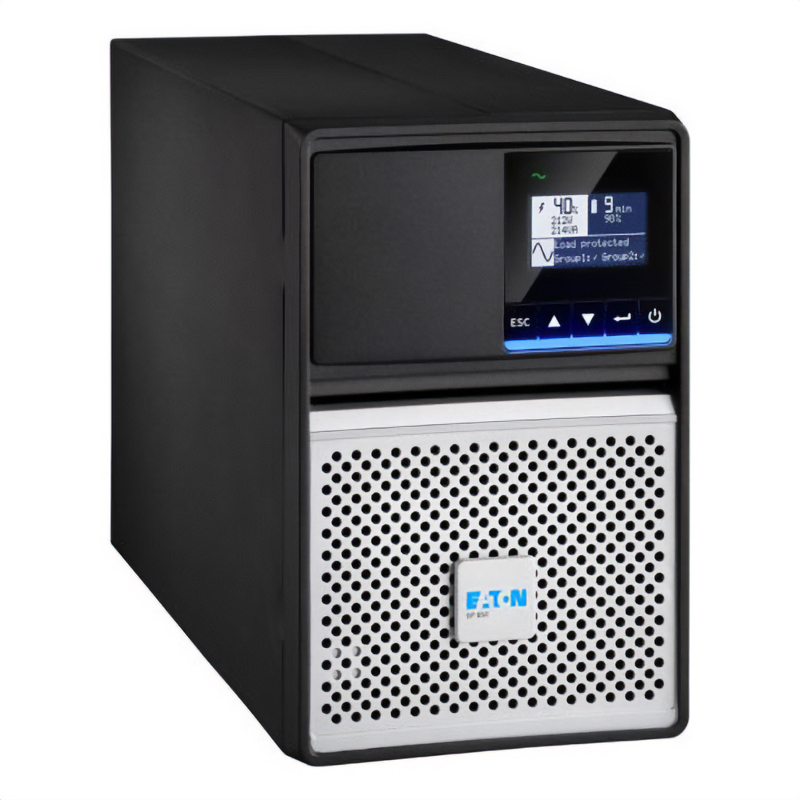

Eaton 5P 850i AU G2 850VA/680W Tower UPS With LCD (5P850IAUG2)

850VA/680W tower UPS, line‑interactive pure sinewave with booster/fader, 160‑294V input range, 230V ±6/‑10% output, 2 AU & 3 IEC C13 outlets (2 switched groups), USB/RS232, battery‑management, <30dB noise.

Eaton 5P 850i AU G2 850VA/680W Tower UPS With LCD (5P850IAUG2)
  • UPS-Power-Protection-Eaton-5P-Gen2-850VA-680W-Tower-UPS-With-LCD-5P850AUG2-2
$799.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 20hrs and 1mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

Rating (VA/W)

850VA / 680W

Format

Tower

Technology

Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)

Input nominal voltage

200V-240V

Input voltage range without using batteries

160V-294V (adjustable to 150V-294V)

Input frequency range without using batteries

47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode

Output voltage

230V (+6 / -10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V), 50 / 60 Hz + / - 0.1 Hz (autosensing)

Input

IEC C14 (10A)

Outputs

2 x AU 10A, 3 x IEC C13 (10A)

Switched outlets groups

2 outlet groups

Typical backup times *

200W: 26

300W: 15

400W: 10

600W: 5

Battery management

Eaton ABM + or constant voltage charging method (user selectable), enhanced battery life time prediction based on usage conditions, battery exchange wizard, automatic battery test, deep discharge protection

Communication ports

1 USB port + 1 serial RS232 port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini terminal block for Remote ON/OFF and Remote Power OFF

Communication slot

1 slot for Network-M3, INDGW-M2 or Relay-MS cards

Operating temperature

0 to 40°C

Noise level

<30 dB @ typical load

Safety

IEC/EN 62040-1, UL1778, CSA22.2

EMC, Performance

IEC/EN 62040-2, IEC / EN 62040-3, FCC Class B, CISPR 32 Class B

Approvals

CE / CB report (TUV) / cTUVus / UKCA / Ukr / Cm

EcoDesign

RoHS, REACH, WEEE, Packaging directive, Battery directive, PEP Ecopassport

Dimensions W x D x H / Weight

150x345x233mm / 10.2kg




  • Product Name:
    Eaton 5P 850i AU G2 850VA/680W Tower UPS With LCD (5P850IAUG2)
  • Model Number:
    5P850IAUG2
  • Brand:
  • Warranty Period:
    3 Year
