Compatibility

USB 2.0/3.0/3.1/3.2

Installation Locations

Walls, ceilings, raceways and conduits.

Suitable Devices

Self-powered

Cable Type

Fiber/Copper hybrid

Connection

USB-C to USB-C

Tensile Strength

40N

Crush Load

480N

Dynamic Minimum Bend Radius

50mm (2.0in)

Minimum Duct Diameter

17mm (0.7in)

Cable Diameter

5mm (0.2in)

Operating Temperature

-4°F to 12°F (-20℃ to   50℃)

Notes

Installation:

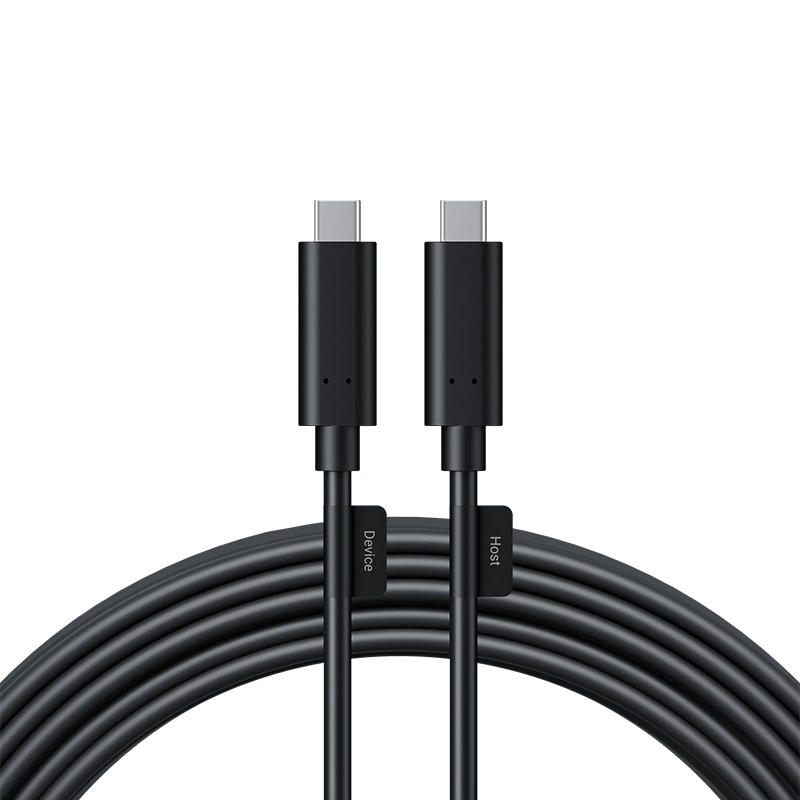

Connect the computer to Insta360 Connect by plugging the host end of the cable into the computer and the device end into Insta360 Connect.

Ensure you differentiate between the input and output ports when using the Extra Long USB-C Cable, as it supports one-way transmission only.

*Notes:

Before wiring, test the signal to ensure it is transmitting properly.

When wiring, use the wire puller at the front and avoid pulling the cable or connector directly.

The connector contains a built-in chip. Avoid drops and impacts, and always hold the connector when plugging or unplugging the cable.

Avoid heavy or sharp objects near the cable to prevent damage, and do not pull or tie it forcefully.
