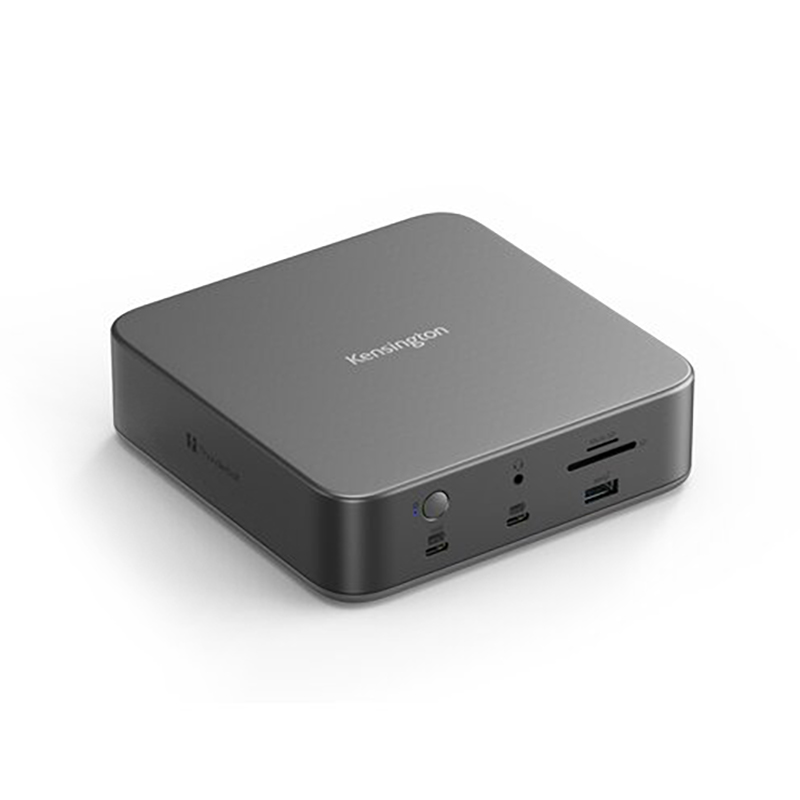

Kensington EQ Thunderbolt 5 Triple 4K Docking Station (K35231AP)

Driverless

Yes

Number of Screen Outputs

3

Video ports

1 x Thunderbolt 5 DFP, HDMI

Maximum resolution

8K

Power delivery

Up to 140W

Operating system(s)

macOS, Windows

Number of USB ports

3

USB fast charging

Yes

Docking station family

The Task Master

DockWorks

Yes (for Windows only)

Best For

A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging, MacBook M-Series models with Pro and Max chips

Compatibility

macOS 14.5 or above, Windows 11 (23H2 or later)

Card Reader

SD Cards and Micro SD card slots (UHS-II, SD4.0)

Features

EQ

USB-A ports

1 x USB-A 3.2 Gen2 10Gbps, 2 x USB-A 3.2 Gen1 5Gbps

USB-C ports

2 x USB-C® Gen2 10Gbps (1 x 30W, 1 x 7.5W)

Audio

1 x 3.5mm Combo Microphone & Headphone Port (front)

Data transfer speeds

Up to 80Gbps of bidirectional bandwidth, with Bandwidth Boost enabling up to 120Gbps for video-intensive usage

Ethernet Speed (Mbps)

10, 100, 1000, 2500

Maximum resolution supported

Triple 4K @ 144Hz(Win), Dual 8K @ 60Hz(Win), Triple 4K @ 60Hz(M5 Pro & M5 Max only)

Plug & play

Plug & play installation without need for drivers or downloads

Security slot compatibility

Kensington Nano Security Slot, Kensington Security Slot

System requirements

Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later)

Thunderbolt Ports

1 x Thunderbolt 5 host port 1 x Thunderbolt 5 downstream port

USB-C Power Delivery

Supports USB-C PD 3.1 (Up to 140W of laptop charging)

Video output

1 x Thunderbolt™ 5 DFP, 2 x HDMI v2.1

4K support

Yes
