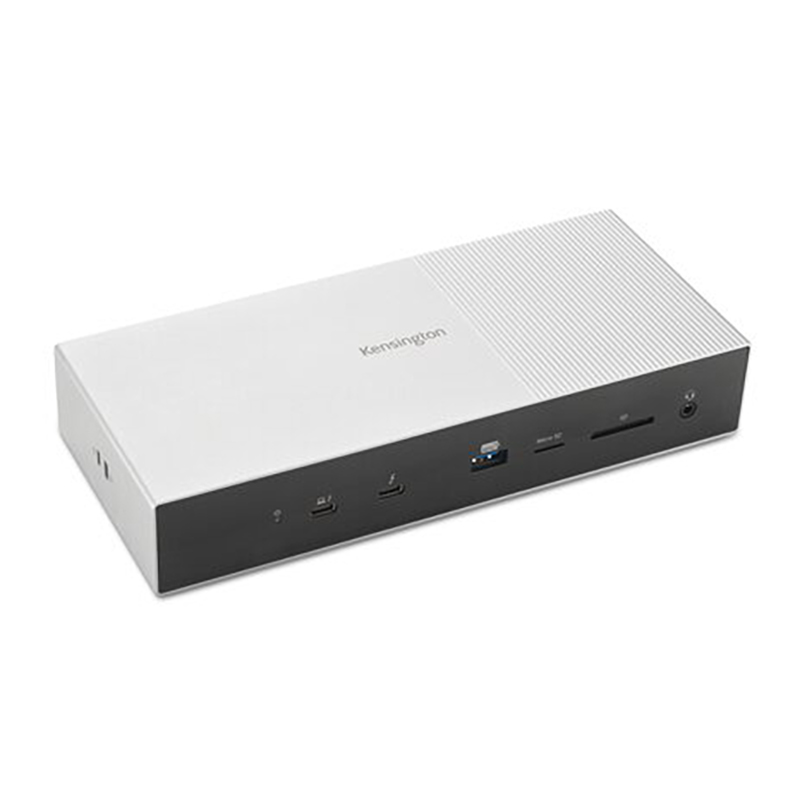

Kensington SD5000T5 Thunderbolt 5 Triple 4K Docking Station (K35201AP)

Driverless

Yes

Number of Screen Outputs

3

Video ports

3 x Thunderbolt 5 DFP

Maximum resolution

8K

Power delivery

Up to 140W

Operating system(s)

macOS, Windows

Number of USB ports

3

USB fast charging

Yes

Docking station family

The Innovator

DockWorks

Yes (for Windows only)

Best For

A Thunderbolt™ 5 laptop running Windows 11 (23H2 or later) with USB-C® PD 3.1 EPR support for up to 140W (28V/5A) charging

Colour

Platinum

Compatibility

macOS 14.5 or above, Windows 11 (23H2 or later)

Card Reader

SD Cards and Micro SD card slots (UHS-II, SD4.0)

Features

EQ

Certified For

Engineered for Intel® Evo™ Laptop Accessory Program, Works With Chromebook

USB-A ports

3 x USB-A 3.2 Gen2 10Gbps

Audio

1 x 3.5mm Combo Microphone & Headphone Port (front)

Data transfer speeds

Up to 80Gbps of bidirectional bandwidth, with Bandwidth Boost enabling up to 120Gbps for video-intensive usage

Ethernet Speed (Mbps)

10, 100, 1000, 2500 Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the   host computer.

Maximum resolution supported

Triple 4K @ 144Hz, Dual 8K @ 60Hz, Single 8K @ 60Hz, or 1080p @ 540Hz

Plug & play

Plug & play installation without need for drivers or downloads

Security slot compatibility

Kensington Nano Security Slot, Kensington Security Slot

System requirements

Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® devices running Windows 11 (23H2 or later) or macOS (14.5 or later)

Thunderbolt Ports

1 x Thunderbolt 5 host port 3 x Thunderbolt 5 downstream ports

USB-C Power Delivery

Supports USB-C PD 3.1 (Up to 140W of laptop charging)

Video output

3 x Thunderbolt™ 5 DFP

4K support

Yes
