Home  > Household Appliances  > Television  > Commercial Displays  > Interactive Panels > Maxhub Raptor V3 120in FHD A76+A55 64GB SSD 8GB RAM Android OS All-in-One Interactive Display (LX120V07)

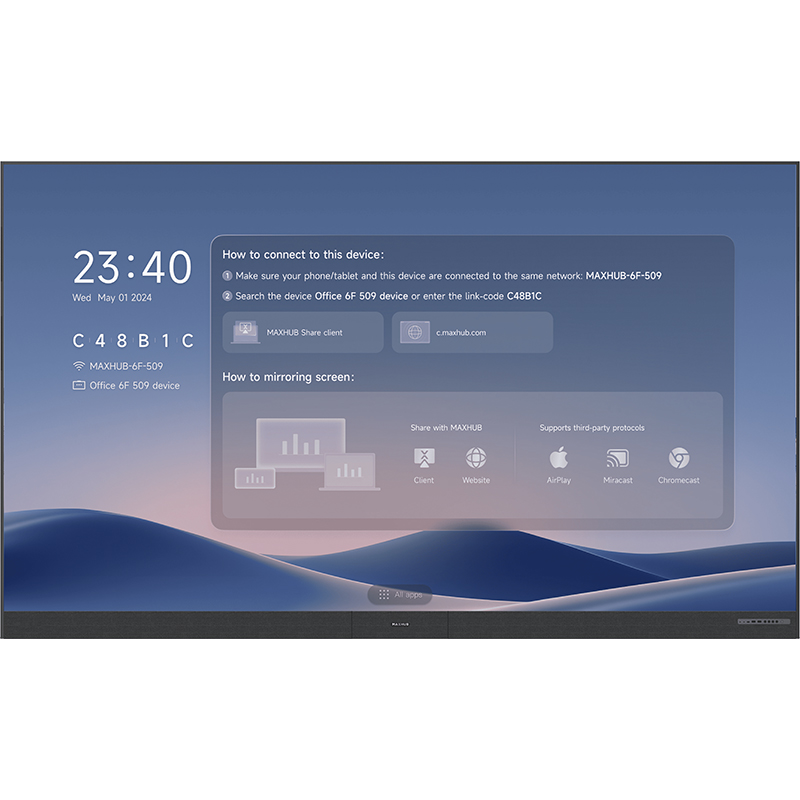

Maxhub Raptor V3 120in FHD A76+A55 64GB SSD 8GB RAM Android OS All-in-One Interactive Display (LX120V07)

Maxhub Raptor V3 120in FHD A76+A55 64GB SSD 8GB RAM Android OS All-in-One Interactive Display (LX120V07)
  • Interactive-Panels-Maxhub-Raptor-V3-120in-FHD-A76-A55-64GB-SSD-8GB-RAM-Android-OS-All-in-One-Interactive-Display-LX120V07-9
  • Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-2
  • Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-4
  • Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-3
  • Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-6
  • Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-5
  • Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-7
$38,800.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 13hrs and 18mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Maxhub Raptor V3 120in FHD A76+A55 64GB SSD 8GB RAM Android OS All-in-One Interactive Display (LX120V07)
  • Model Number:
    LX120V07
  • Brand:
  • Warranty Period:
    3 Year

Description

Interactive-Panels-MAXHUB-Raptor-Series-V3-120-1-3mm-Pixel-Pitch-1920-1080P-FHD-1





SPECIFICATIONS:

PRODUCT PARAMETER


Size

120 inch

Aspect Ratio

16:9

Pixel Pitch

1.3 mm

Resolution

1920×1080mm

Overall Size (L×H)

2694×1624mm

Display Area (L×H)

2664×1499mm

Screen Thickness

28mm

Net Weight

87kg( wall-mounting bar and stand not included)

Recommended Viewing Distance

≥2.8m

Maintenance Mode

Front Access

Installation Mode

Mobile stand, Stand, Wall-mounting

I/O Ports

2 x HDMI IN (HDMI2.0 *1, HDMI1.4 *3)

1 x HDMI OUT

1 x POE

1 x USB 2.0

2 x USB 3.0

1 x Type C

2 x 3.5 Audio Output

1 x 3.5 Audio Input

1 x RJ45 (RS232 Protocol)

1 x USB Out

2 x LAN



* USB Out is recommended for scenarios where the computer serves as the input source. By connecting directly to the computer via USB Out, it enables functionalities such as reading USB data.

OPTICAL PARAMETER


Brightness

100~600cd/㎡(Adjustable)

Refresh Rate

3840Hz

Gray Scale

13~16bit

Contrast

6500:1

Color Temperature

2300~9300K(Adjustable)

Viewing Angle

Horizontal 160°, Vertical 140°

LED Lifespan

 â‰¥100,000hrs

ELECTRICAL PARAMETER


Operation Voltage

100~240VAC 50/60Hz

Standby Power

≤0.5W

Average Power Consumption of Overall Unit

0.483KW

Maximum Power Consumption of Overall Unit

1.611KW

SYSTEM PARAMETER


Operating System

Android 13.0

CPU

Four Cortex-A76+ four Cortex-A55, frequency 2.4GHz

RAM

8GB

Storage

64GB

Media Format

Support mainstream video format such as

MPEG-1,MPEG-2, MPEG-4,H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1;

Support audio formats such as MP3;

Support JPG, JPEG, BMP, PNG, GIF and other image format.

ENVIRONMENTAL PARAMETER


Operation Temperature

-10℃~40℃

Operation Humidity

10%~80%RH No condensation
