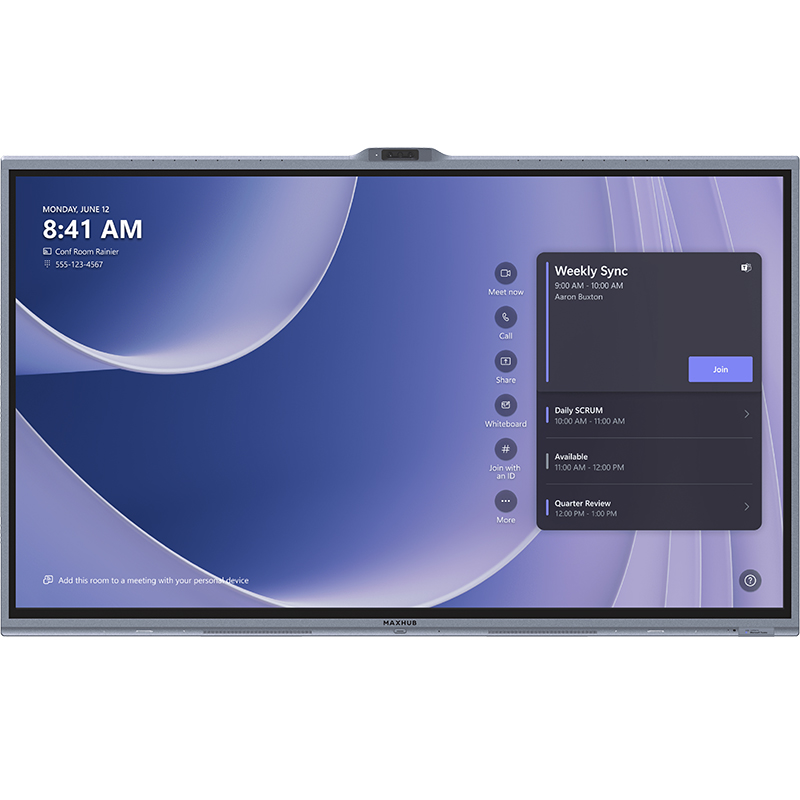

Maxhub XBoard V7 86in 4K UHD IPS i5-1240P 256GB SSD 16GB RAM W11IoT Microsoft Teams Rooms Interactive Touch Display (V865T)

Maxhub XBoard V7 86in 4K UHD IPS i5-1240P 256GB SSD 16GB RAM W11IoT Microsoft Teams Rooms Interactive Touch Display (V865T)
  • Interactive-Panels-Maxhub-XBoard-V7-86in-4K-UHD-IPS-W11IoT-Microsoft-Teams-Rooms-Interactive-Touch-Display-V865T-7
  • Interactive-Panels-MAXHUB-XBoard-V7-series-V865T-86-4K-Microsoft-Teams-Rooms-Interactive-Touch-Display-2
  • Interactive-Panels-MAXHUB-XBoard-V7-series-V865T-86-4K-Microsoft-Teams-Rooms-Interactive-Touch-Display-4
  • Interactive-Panels-MAXHUB-XBoard-V7-series-V865T-86-4K-Microsoft-Teams-Rooms-Interactive-Touch-Display-3
  • Interactive-Panels-MAXHUB-XBoard-V7-series-V865T-86-4K-Microsoft-Teams-Rooms-Interactive-Touch-Display-5
$9,999.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 17hrs and 49mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Maxhub XBoard V7 86in 4K UHD IPS i5-1240P 256GB SSD 16GB RAM W11IoT Microsoft Teams Rooms Interactive Touch Display (V865T)
  • Model Number:
    V865T
  • Brand:
  • Warranty Period:
    3 Year

Description

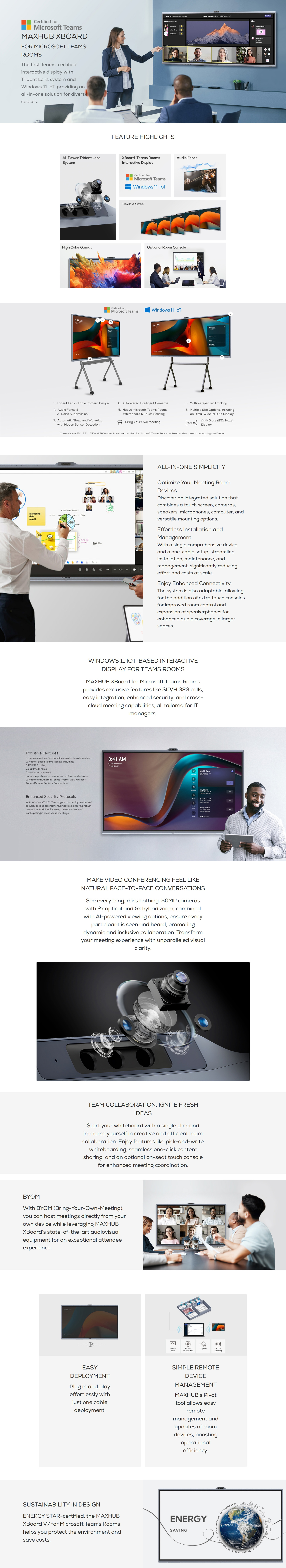

Interactive-Panels-MAXHUB-XBoard-V7-series-V865T-86-4K-Microsoft-Teams-Rooms-Interactive-Touch-Display-1




SPECIFICATIONS:

DISPLAY

Screen Size (Inch)

86

Aspect Ratio

16:9

Panel

IPS

Backlight

DLED

Glass

Zero parallax

3 mm thickness

9H Tempered

Surface Technology

25% haze; Non-glare technology

Resolution

3840x2160

Refresh Rate

60 Hz

Viewing Angle (HxV)

178"/178°

Color Gamut

90% NTSC

Display Orientation

Landscape

Response Time

8 ms

Life Time

>50,000 hours

Operation Hours (Hour / Day)

16 / 7

Display Color

1.07 B (10 bit)

Color Accuracy

Delta E ≤ 1.5

Sensor

Ambient light sensor; Motion sensor

CONNECTIVITY

I/O Ports (lnteractive Display)


HDMI In (2.0) x 2

To Connect an external source (disabled as default)

USB-A 2.0 x 1

To pair with wireless dongle -WTl3M/WT13S
To connect keyboards or mouse, etc.

Audio In x 1

To connect an external audio source to make XBoard a speaker

Audio Out x 1

3.5 mm mini-jack, to connect an external speaker system

RS232 x1

9 pin

Mic In (RJ45) x 1

To Connect up to a maximum of three UC BM45 as expansion speakerphones

Wireless Access Point

Yes (for wireless presentation )

CAMERA

Wide Camera

50MPx1
HFOV 86
°

Telephoto Camera

50MP x 2
HFOV (combined) 72
°

Zoom

Hybrid 5x

Al Features

Auto framing
Speaker tracking
Multiple-speaker tracking
Intelligent focus

AUDIO

Sound Channel

2.1

Speaker Power

2x10W+20W

MICROPHONE

Quantity

16-mic array

Pick-up Angle

180°

Pick-up Range

Best distance-8m / 26.2ft
Maximum distance 15m / 49.2ft

Feature

Intelligent audio fence
Al spatial sound
AEC (Auto echo cancellation)
ANC (Al noise cancellation)
AGC (Auto gain control)

TOUCH SYSTEM

Touch Technology

Intelligent Touchscreen Technology (infrared recognition)

Touch Point

50 points touch

Object Recognition Range

≥1.5 mm (0.06 inch)

Accuracy

±0.5 mm(0.02 inch)

Response Time

≤2.5 ms

Writing Height

≤ 1 mm (0.04 inch)

PC MODULE (SLOT-IN)

CPU

12th gen Intel Core i5-1240p

GPU

Intel® Iris® Xe Graphics eligible

Memory

16GB DDR4 (8GB x2)

Storage

256GB SSD(M.2)

Operating System

Windows 11 lOT

TPM 2.0

Yes

Inputs & Outputs

USB-A 3.0 x3
HDMlIn (2.0)x1*
(Content share in Teams Rooms mode)
HDMI Outx2
(For future use, do not support a 2nd display in teams room mode currently)
RJ45 x1(Ethernet)
RJ45x1
(For optional touch console -TCP30T)

Wi-Fi

Wi-Fi 6

Bluetooth

Bluetooth 5.1
