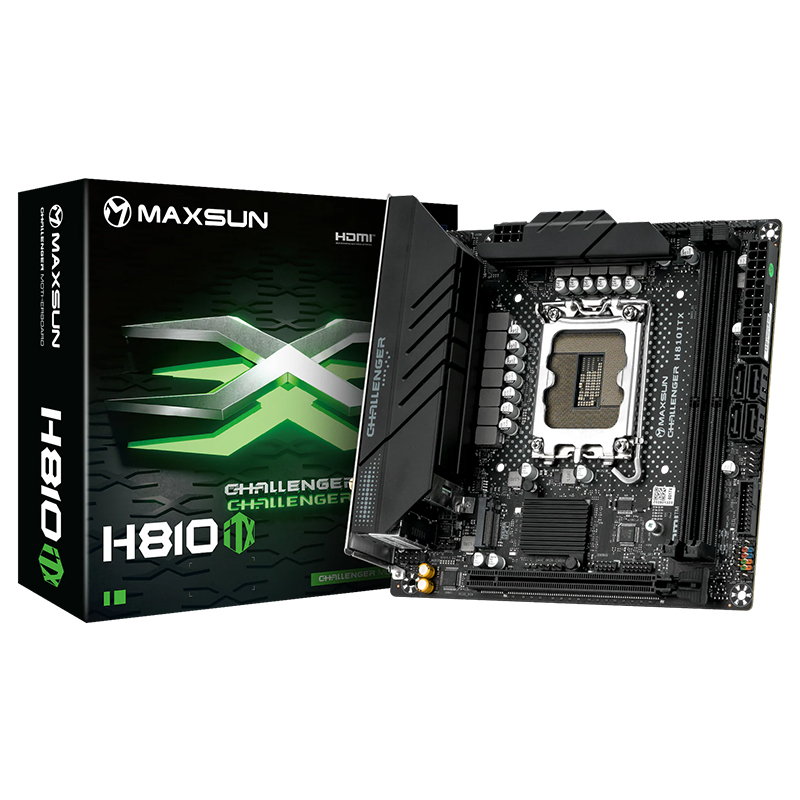

MAXSUN Challenger H810ITX WiFi LGA 1851 mini-ITX Motherboard (MS-Challenger-H810ITX-WIFI)

CPU Socket

Intel® LGA 1851, compatible with Intel® Core™ Ultra processors

Chipset

Intel® H810

Memory

2× DIMM DDR5 slots, up to 96GB

Dual-channel memory support

XMP support

Speeds: 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MHz

Display Outputs

1× HDMI™ 2.0 (up to 4K @ 60Hz)

2× DP 1.4 (up to 4K @ 60Hz)

Expansion Slots

1× PCIe x16 slot (PCIe 5.0 x16 mode)

Audio

Integrated Realtek ALC897 audio codec

Networking

1× Intel® i219V 1Gb Ethernet port

1× Intel® AX101 Wi-Fi 6 & Bluetooth 5.2 module

Storage

1× M.2 slot (PCIe 4.0 x4/x2, 2280) – Front

1× M.2 slot (PCIe 4.0 x4/x2, 2280) – Back

4× SATA 6Gb/s ports

USB Ports

Onboard:

1× USB 5G 19-pin header (supports 2× USB 5G ports)

1× USB 2.0 9-pin header (supports 2× USB 2.0 ports)

Rear I/O:

4× USB 10G Type-A

2× USB 5G Type-A

2× USB 2.0 Type-A

Other Features

1× 24-Pin ATX power connector

1× 8-Pin +12V power connector

1× 3-Pin ARGB header

1× Front-panel COM port header

1× CLR CMOS reset header

1× 4-Pin CPU FAN header

1× 4-Pin PUMP header

1× 4-Pin SYS FAN header

1× TPM header
