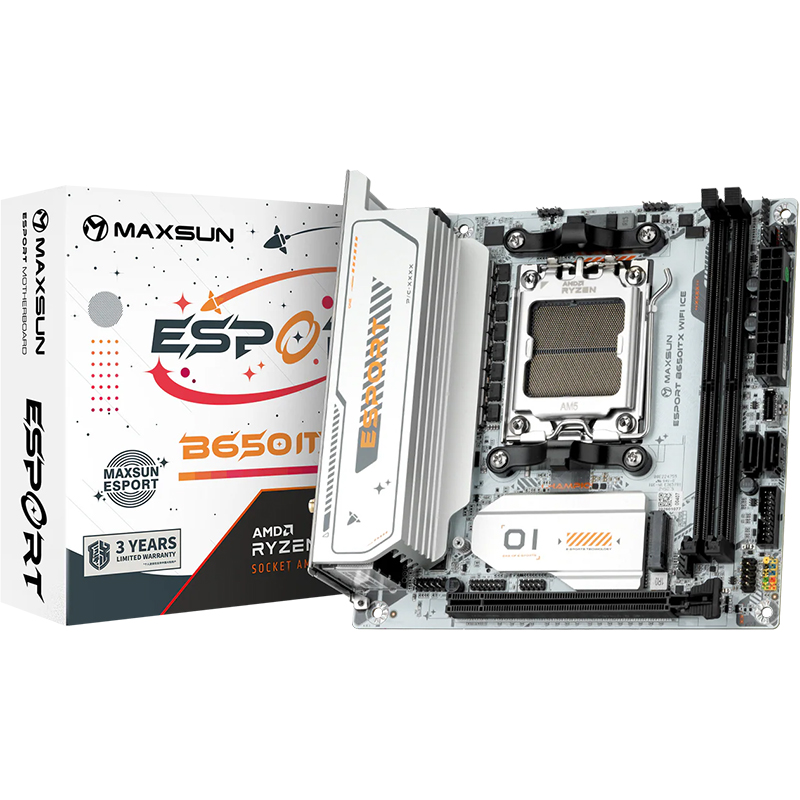

MAXSUN eSport B650ITX WIFI ICE AM5 ITX DDR5 Motherboard (MS-ES-B650ITX-WIFI-ICE)

Mini ITX (170 mm) board with AM5 socket for Ryzen 7000‑9000 (105‑180 W), B650 chipset, 2 DDR5 slots up to 96 GB (4800‑8000 MHz OC), HDMI 1.4 & DP, Realtek ALC897 audio, 2.5 Gb LAN, Wi‑Fi 6/BT 5.2, 2 PCIe 4.0 M.2, 2 SATA, USB‑C 10 Gb, RGB & fan headers.

MAXSUN eSport B650ITX WIFI ICE AM5 ITX DDR5 Motherboard (MS-ES-B650ITX-WIFI-ICE)
  • AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-7
  • AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-4
  • AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-5
$159.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 20hrs and 27mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    MAXSUN eSport B650ITX WIFI ICE AM5 ITX DDR5 Motherboard (MS-ES-B650ITX-WIFI-ICE)
  • Model Number:
    MS-ES-B650ITX-WIFI-ICE
  • Brand:
  • Warranty Period:
    3 Year

Description

AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-2
AMD-AM5-MAXSUN-eSport-B650ITX-WIFI-ICE-AM5-ITX-DDR5-Motherboard-MS-ES-B650ITX-WIFI-ICE-3



SPECIFICATIONS:

Motherboard Size

ITX (170 x 170 mm)

CPU Socket

AM5, compatible with Ryzen 7000/8000/9000 series processors, TDP: 105-180W

Chipset

AMDÂŽ B650 high-speed chipset

Memory

Slots: 2 DIMM DDR5 slots, supporting up to

96GBDual-channel support

Dual-channel support

Frequency Support:

4800/ 5200/ 5600(OC)/ 6000(OC)/ 6400(OC)/ 6800(OC)/ 7000(OC)/ 7200(0C)/ 7600(0C)/ 7800(OC)/ 8000(OC) MHz

Display

1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz)

1 x DisplayPort (up to 4096 x 2160 @ 60Hz)

Audio

Integrated Realtek ALC897 audio chip

Network

Integrated Realtek 8125BG/D LAN chip

Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2

1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi

Storage

2 x M.2 slots (supporting 2242/2280 PCle 4.0 x4/x2 SSDs)

2 x SATA 3.0 ports

USB Ports

Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0

Internal Headers: 1 x USB 2.0 header (supports 2 ports),

1 x USB 3.2 Gen 1 header (supports 2 ports),

1 x USB Type-C 10G port

Additional Features

1 x 24-PIN ATX power connector

RGB Headers:

8000(OC) MHz

2 x 5V ARGB headers,

1 x 12V RGB header with MAXSUN Sync support

1 x 8-PIN ATX12V power connector (12V input)

Fan Headers:

2 system fan headers,

1 CPU fan header

1 x COM A header

1 x Rear CLR_CMOS button

1 x TPM header
