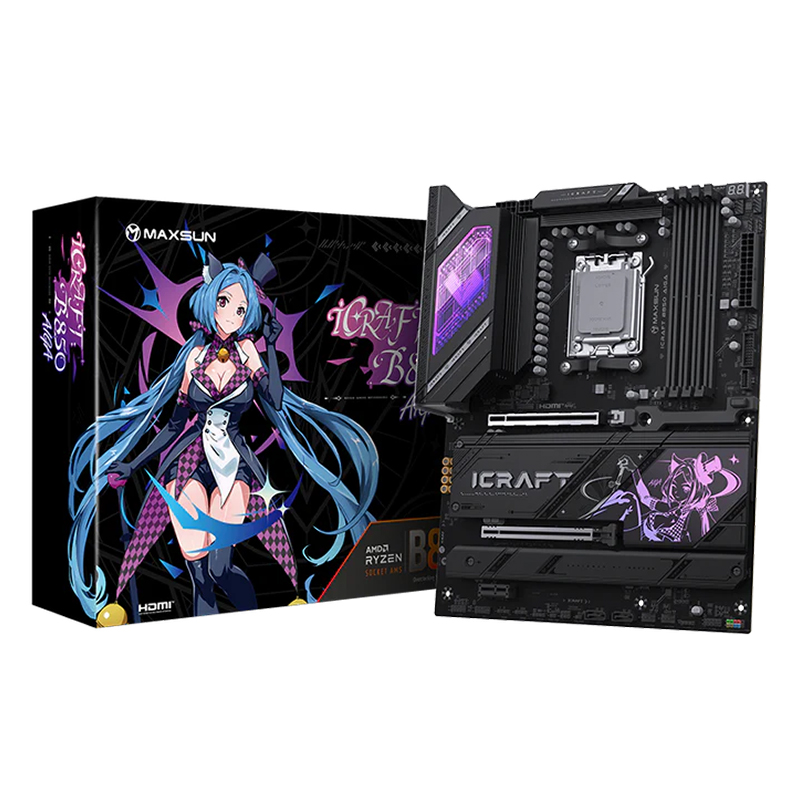

MAXSUN iCraft B850AIGA AM5 ATX Motherboard (MS-iCraft-B850-AIGA)

CPU Support

AMD® AM5 socket

Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series processors

Chipset

AMD® B850 chipset

Memory

4 × DIMM DDR5 slots, up to 256GB

Dual-channel architecture

Supports AMD® EXPO

Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6600(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7400(OC) / 7600(OC) / 8000(OC) / 8200(OC) / 8400(OC) MHz

Display Outputs

1 × HDMI™ 2.0 (up to 4K@60Hz)

1 × DisplayPort 1.4 (up to 4K@60Hz)

Graphics output depends on CPU capability (see AMD.com)

Expansion Slots

From AMD Ryzen™ 9000/8000/7000 CPUs:

• 1 × PCIe x16 slot (up to PCIe 5.0 x16/x8)

• 1 × PCIe x16 slot (up to PCIe 5.0 x8 or x4+x4 when bifurcation enabled; requires PCIeX16_A switch; Ryzen 8000 disables this slot)

From AMD B850 chipset:

• 1 × PCIe x1 slot (PCIe 3.0 x1 mode)

Audio

Realtek ALC1220 audio codec

Networking

1 × Realtek RTL8126 5Gb Ethernet port

1 × MediaTek MT7925 wireless module (Wi-Fi 7 + Bluetooth® 5.4)

Storage

4 × M.2 slots + 2 × SATA 6Gb/s

From Ryzen™ 9000/8000/7000 CPUs:

M.2_A: PCIe 5.0 x4/x2 (2242/2280)

M.2_B: PCIe 5.0 x4/x2 (2242/2280/22110)

From B850 chipset:

M.2_C: PCIe 4.0 x4/x2 (2242/2280/22110)

M.2_D: PCIe 4.0 x4/x2 (2242/2280/22110)

2 × SATA 6Gb/s ports

USB

Onboard USB:

1 × USB 20G Type-C® header

1 × USB 5G 19-pin header (supports 2 ports)

1 × USB 2.0 9-pin header (supports 2 ports)

1 × USB 2.0 4-pin header (supports 1 port)

Rear USB:

1 × USB 10G Type-C® (supports DP 1.4 video output up to 4K@60Hz)

4 × USB 10G Type-A

4 × USB 2.0 Type-A

Power Connectors

1 × 24-pin ATX Power Connector

2 × 8-pin +12V CPU Power Connectors

Lighting

3 × 3-pin ARGB headers

1 × 4-pin NRGB header

Other Connectors

1 × COM port header

1 × CLR_CMOS reset header

1 × 4-pin CPU fan header

1 × 4-pin PUMP header (DC control supported)

4 × 4-pin chassis fan headers
