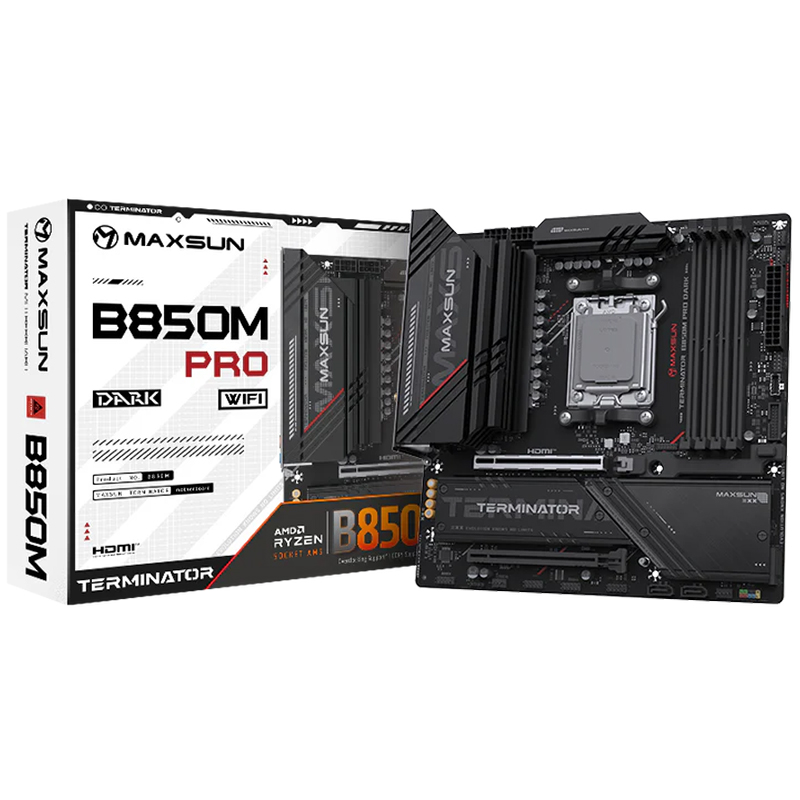

MAXSUN Terminator B850M Dark WiFi AM5 mATX Motherboard (MS-Terminator-B850M-DARK-WIFI)

CPU Support

AMD® AM5 socket

Compatible with AMD® Ryzen™ 7000, 8000 and 9000 Series processors

Chipset

AMD® B850 chipset

Power Delivery

8+2+1 phase 50A Dr.MOS power design

CPU TDP support: up to 170W

Memory

4 x DDR5 DIMM slots, up to 192GB

Dual-channel memory architecture

Supports AMD® EXPO memory overclocking

Supported speeds: 4800 / 5200 / 5600(OC) / 6000(OC) / 6400(OC) / 6800(OC) / 7000(OC) / 7200(OC) / 7600(OC) / 7800(OC) / 8000(OC) MHz

*Maximum supported memory frequency depends on the CPU and DRAM capabilities.

Graphics Output

1 x DisplayPort 1.2 (up to 4K @ 60Hz)

1 x HDMI™ 1.4 port (up to 4K @ 30Hz)

*Graphics specifications may vary by CPU.

Expansion Slots

From CPU: 1 x PCIe x16 slot (PCIe 5.0 x16 mode)

From B850 chipset: 1 x PCIe x4 slot (PCIe 4.0 x4 mode)

From B850 chipset: 1 x PCIe x4 slot (PCIe 4.0 x1 mode)

Storage Interfaces

2 x M.2 Key-M slots and 4 x SATA 6Gb/s ports

M.2_A (from CPU): PCIe 4.0 x4/x2, supports 2280/22110

M.2_C (from B850 chipset): PCIe 4.0 x4/x2, supports 2280

Networking

1 x Realtek RTL8125D 2.5Gb Ethernet

1 x Realtek RT8852BE wireless adapter supporting Wi-Fi 6 and Bluetooth® 5.2

USB Ports

Onboard USB headers (5 ports):

1 x USB 5Gbps 19-pin header supporting 2 additional USB 5Gbps ports

1 x USB 2.0 9-pin header supporting 2 additional USB 2.0 ports

1 x front USB 10Gbps Type-C connector

Rear I/O (9 ports):

4 x USB 5Gbps Type-A ports

4 x USB 2.0 Type-A ports

1 x USB 10Gbps Type-C port

Audio

Realtek ALC897 HD Audio Codec

5+1 audio jacks on rear I/O

Rear I/O

1 x DisplayPort 1.2

1 x HDMI™ 1.4

4 x USB 2.0 Type-A

1 x USB 10Gbps Type-C

1 x CLR_CMOS button

4 x USB 5Gbps Type-A

1 x Realtek 2.5Gb Ethernet

1 x Wi-Fi antenna connector

5+1 audio jacks

Internal Connectors

1 x 24-pin ATX power connector

1 x 8-pin +12V power connector

1 x 4-pin CPU_FAN header

1 x 4-pin PUMP header

2 x 4-pin SYS_FAN headers

2 x M.2 Key-M slots

4 x SATA 6Gb/s ports

1 x USB 5Gbps 19-pin header

1 x USB 2.0 9-pin header

1 x front USB 10Gbps Type-C connector

2 x 3-pin 5V ARGB headers

1 x 4-pin 5V NRGB header

1 x COM header

1 x front-panel audio header

1 x 10-1 pin system panel header

1 x  TPM header

Operating System

Windows® 11

Windows® 10 64-bit

Special Features

Distributed Debug LEDs

Maxsun Sync lighting control

CLR_CMOS quick button

Package Contents

1 x MS-Terminator B850M DARK WIFI motherboard

2 x SATA 6Gb/s cables

2 x Wi-Fi antennas

1 x warranty card

Weight

Motherboard net weight: 0.96kg

Motherboard gross weight: 1.33kg
