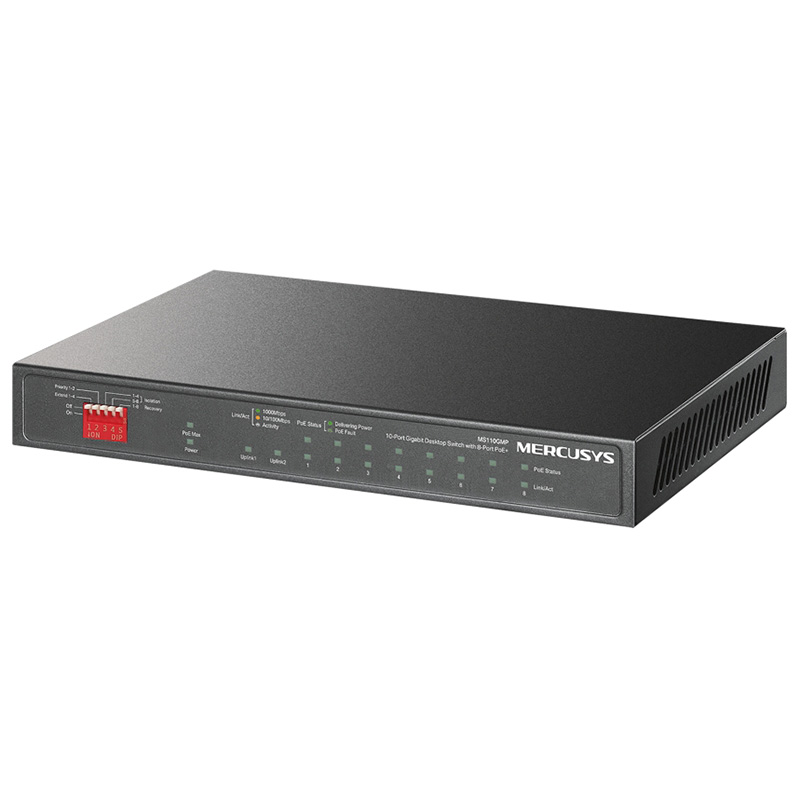

Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+
As a 10-port gigabit desktop switch with 8 PoE+ ports, MS110GMP is ideal for a wide range of applications, such as surveillance for offices, dormitories, and small businesses.

  • 8Γ— gigabit PoE+ ports, and 2Γ— Gigabit Uplink Ports

  • 8Γ— PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*

  • Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

  • Up to 250 m data and power transmission range under Extend Mode**

  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

  • Isolation Mode allows one-click client traffic separation for higher security and performance

  • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

  • Plug and play with no configuration required

  • Fanless design reduces power consumption and works silently in its location




SPECIFICATIONS:

SOFTWARE


Transfer Method

Store-And-Forward

Advanced Features

β€’ Compatible With IEEE 802.3af/at Compliant PDs

β€’ Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

β€’ Priority Mode Button (Ports 1–2)

β€’ Isolation Mode Button (Ports 1–4 / 5-8)

β€’ PoE Auto Recovery (Ports 1-8)

β€’ Mac Address Auto-Learning and Auto-Aging

β€’ IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

HARDWARE


Dimensions (W X D X H)

8.2 Γ— 4.9 Γ— 1.0 in (209 Γ— 126 Γ— 26 mm)

PoE Ports

RJ45 Ports

β€’ Standard: 802.3 af/at compliant

β€’ PoE Ports: Ports 1–8

β€’ Power Supply: 111 W

Interfaces

β€’ 8Γ— 10/100/1000 Mbps PoE+ Ports

β€’ 2Γ— 1000 Mbps RJ45 Ports

β€’ AUTO Negotiation

β€’ AUTO MDI/MDIX

Network Media

β€’ 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

β€’ EIA/TIA-568 100Ξ© STP (maximum 100m)

β€’ 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

β€’ EIA/TIA-568 100Ξ© STP (maximum 100m)

β€’ 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

β€’ EIA/TIA-568 100Ξ© STP (maximum 100m)

External Power Supply

External Power Adapter (Output: 53.5VDC / 2.43A)

Fan Quantity

Fanless

Physical Security Lock

Yes

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Mac Address Table

4K

Max Power Consumption

β€’ 7.93 W (220V / 50Hz with no PD connected)

β€’ 141.40 W (220V / 50Hz with 123 W PD connected)

Max Heat Dissipation

β€’ 27.04 BTU/h (220V / 50Hz with no PD connected)

β€’ 482.17 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE


Packet Forwarding Rate

14.88 Mpps

OTHERS


Certifications

FCC, CE, RoHS

Package Contents

β€’ MS110GMP

β€’ Power Adapter

β€’ Installation Guide

Environment

β€’ Operating Temperature: 0–40 ℃ (32–104 ℉)

β€’ Storage Temperature: -40–70 ℃ (-40–158 ℉)

β€’ Operating Humidity: 10–90% RH non-condensing

β€’ Storage Humidity: 5–90% RH non-condensing

Notes

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.




  • Product Name:
    Mercusys 10-Port Gigabit Desktop Switch with 8-Port PoE+ (MS110GMP)
  • Model Number:
    MS110GMP
  • Brand:
    Mercusys Mercusys
  • Warranty Period:
    5 Year
