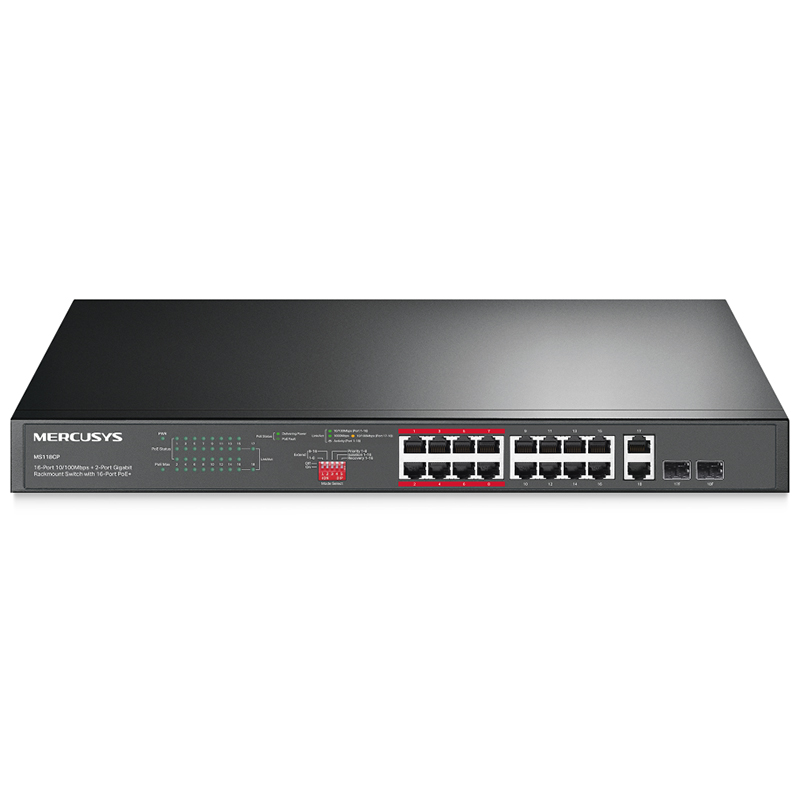

Mercusys 20-Port Gigabit Rackmount Switch with 16-Port PoE+

• 16× Gigabit PoE+ RJ45 ports, 2× Gigabit non-PoE RJ45 ports, and 2× Combo Gigabit SFP slots

• High PoE power budget with up to 30 W for each PoE port and 192 W* for all PoE ports

• Working with IEEE 802.3af/at compliant PDs

• Up to 250m data and power transmitting range under Extend Mode**

• Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor

• Isolation Mode allows one-click client traffic separation for higher security and performance

• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

• Plug and Play. No configuration or central management required.

*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

△Numbers after different modes represent the effective ports for that mode.
