Network Type

EU:

5G:N1/ N3/ N5/ N7/ N8/ N20/ N28/ N38/ N40/ N41/ N77/ N78 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700/ 2600/ 2300/ 2500/ 3700/ 3500 MHz)

FDD-LTE: B1/ B3/ B5/ B7 /B8/ B20/ B28 (2100/ 1800/ 850/ 2600/ 900/ 800/ 700 MHz)

TDD-LTE: B38/ B40/ B41/ B42/ B43 (2600/ 2300/ 2500/ 3500/ 3700 MHz)

HSPA+/UMTS: B1/ B5/ B8 (2100/ 850/ 900 MHz)

Wi-Fi Class

AX3000

Wi-Fi (2.4 GHz)

574 Mbps

Wi-Fi ( 5 GHz)

2402 Mbps

Frequency

5 GHz, 2.4 GHz

Wireless Standards

IEEE 802.11ax/ac/a/b/g/n

Reception Sensitivity

5 GHz:

11ax HE20: -64 dBm

11ax HE40: -61 dBm

11ax HE80: -59 dBm

11ax HE160: -56 dBm

11ac VHT20: -70 dBm

11ac VHT40: -67 dBm

11ac VHT80: -64 dBm

2.4 GHz:

11ax HE20: -66 dBm

11ax HE40: -62 dBm

11ac VHT20: -71 dBm

11ac VHT40: -67 dB

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz band1, 2 < 23dBm (EIRP)

5 GHz band3 < 30dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK / WPA3-SAE

Wireless Functions

Smart connect

WPS

Wireless Schedule

Wireless Clients Statistics

Easymesh

Multi-SSID

SOFTWARE

Operation Modes

5G/4G/3G Router

Wireless Router

Cellular Mode

5G Preferred

5G Only

4G Preferred

4G Only

3G Only

Cellular APN

Data Roaming

Network Search

Band Search

Profile Create

APN Settings

ISP File Upgrade

PIN Management

WAN Mode

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

DHCP

Server

DHCP Client List

Address Reservation

NAT Forwarding

ALG

Virtual Server

Port Triggering

UPnP

DMZ

Protocols

IPv4, IPv6

Data Settings

Data Statistics

Data Limit

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

Parental Controls

Time Control

Website Filtering

DDNS

DynDns

NO-IP

VPN Sever

Open VPN

PPTP VPN

IPSec VPN

SMS

Inbox

New Message

Outbox

Drafts

QoS

√

Security

IPv4 SPI Firewall

Service Filtering

Access Control

IP & MAC Binding

IPv6 Firewall

System Settings

Time Settings

LED Control

Diagnostics

Firmware Upgrade

Backup&Restore

Reboot Schedule

Administration

System Log

Traffic Statistics

Device Management

MERCUSYS APP

Web GUI

System Language

Czech

Danish

English

Spanish

French

Italian

Polish

Romanian

Russian

Turkish

Hungarian

Indonesian

Chinese - Taiwan

TR-069

√

HARDWARE

Dimensions (W X D X H)

190 × 130 × 69.7 mm

(7.5 × 5.1 × 2.7 in)

Interfaces

1× 2.5 Gbps LAN/WAN Port

1× Gigabit LAN Port

1× RJ11 Phone Port

2× 5G/4G External Antenna Ports

1× Nano SIM Card Slot

Antenna

Internal

Button

WPS, Reset Button

External Power Supply

12V/2A

LED

1× Power

1× Internet

1× Phone

3× Signal

NR Standard

4.67/1.25Gbps DL/UL

LTE Standard

Cat 19

1.6Gbps/200Mbps DL/UL

OTHERS

Package Contents

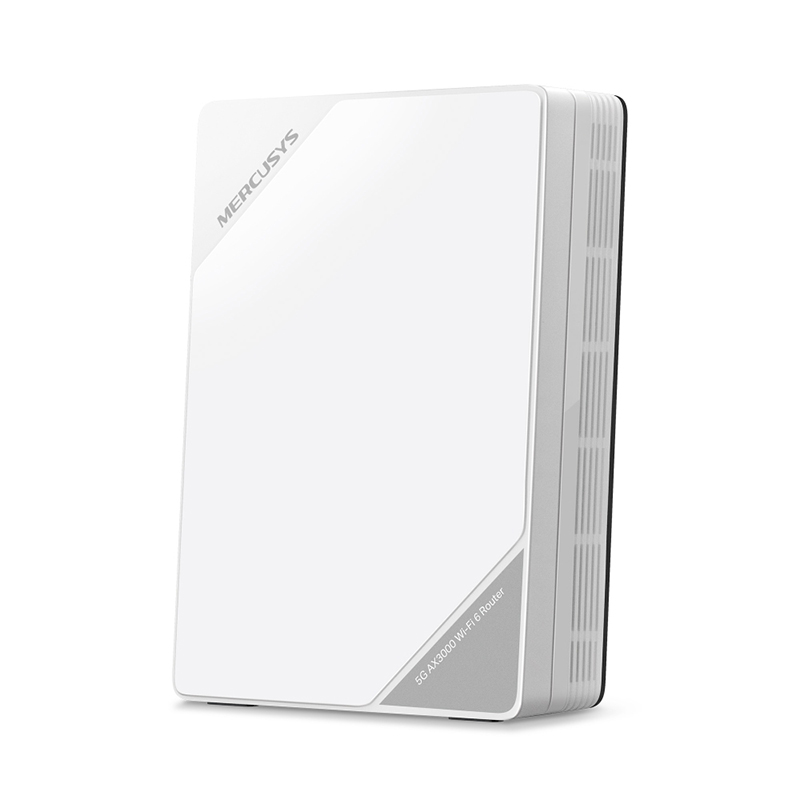

5G AX3000 Wireless Dual Band Router (MB520-5G)

Power Adapter

RJ45 Ethernet Cable

RJ11 Phone Cable

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
