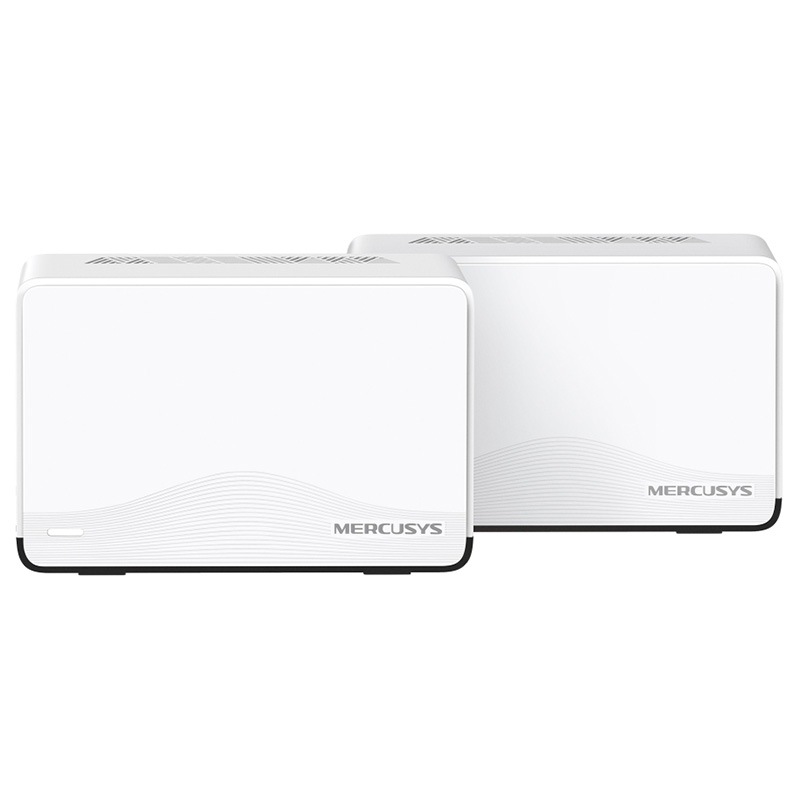

Mercusys Halo H27BE BE3600 Whole Home Mesh Wi-Fi 7 System (Halo H27BE(2-pack))

Wireless Standards

5 GHz: IEEE 802.11b/g/n/ac/ax/be mixed

2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

Signal Rate

2880 Mbps at 5 GHz

688 Mbps at 2.4 GHz

Reception Sensitivity

2.4G: -97dBm

5G: -98.5dBm

Transmission Power

5G band1 band2 < 23dBm

5G band3 < 30dBm

2.4G band < 20dBm

Wireless Security

WPA-PSK/WPA2-PSK/WPA3-SAE

Mesh protocol

802.11k/v/r

SOFTWARE

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

HARDWARE

Dimensions (W X D X H)

5 × 3.2 × 3.3 in (128 × 81.3 × 83.7 mm))

Interfaces

1× 2.5 Gbps Port + 2× 1 Gbps Ports (WAN/LAN auto-sensing)

Button

Reset button

OTHERS

Package Contents

2× Halo H27BE Units

1× RJ45 Ethernet Cable

2× Power Adapters

Quick Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
