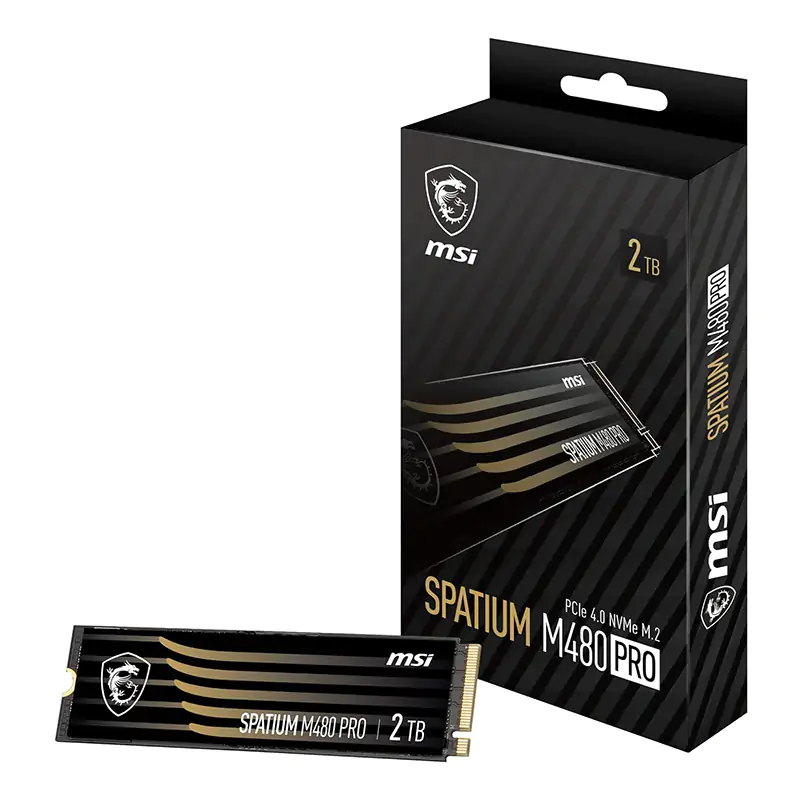

MSI Spatium M480 Pro 2TB PCIe M.2 NVMe SSD (MSI SPATIUM M480 2TB PRO)

Controller

PHISON E18

Flash Memory

3D NAND

DRAM Cache

2GB DDR4

Form Factor

M.2 2280

Interface

PCIe Gen4 x4, NVMe 1.4

Compatibility

PCIe Gen4 / Gen3 / Gen2 / Gen1

Dimensions

80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read Up To (MB/s)

7400

Sequential Write Up To (MB/s)

7000

Random Read 4KB Up To (IOPS)

1,000,000

Random Write 4KB Up To (IOPS)

1,000,000

Maximum Operating Power (W)

10.5

Idle Power PS3 (MW)

45

Low Power L1.2 (MW)

3

Operating Temperatures

0°C – 70°C

Storage Temperatures

-40°C – 85°C

Terabytes Written (TBW)

1400

Mean Time Between Failure (MTBF)

Up to 1,600,000 Hours

Advanced Features

TRIM (Performance Optimization, OS Support required)

SMART (Self-Monitoring, Analysis and Reporting Technology)

LDPC (Low Density Parity Check) ECC Algorithm

End to End Data Path Protection

APST (Autonomous Power State Transition)

AES256/Pyrite (Encryption, Data Security)
