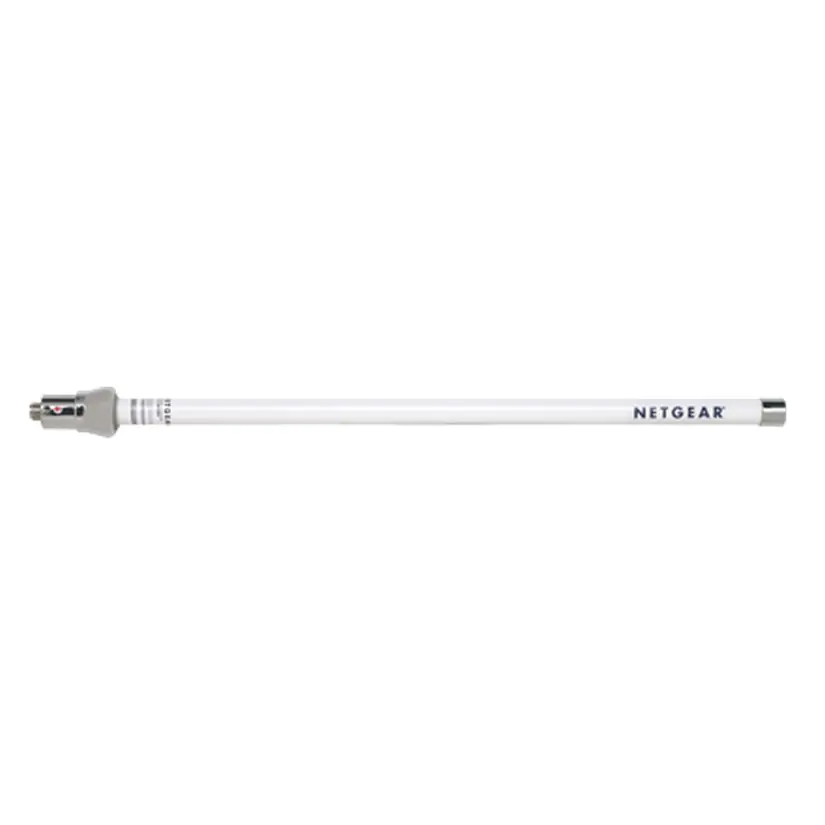

Netgear ANT2409, 9dBi Indoor/Outdoor Omni-directional Antenna

Netgear ANT2409, 9dBi Indoor/Outdoor Omni-directional Antenna
  • 6439_thumb_P_1518762831111
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 13hrs and 4mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.


  • Product Name:
    Netgear ANT2409, 9dBi Indoor/Outdoor Omni-directional Antenna
  • Model Number:
  • Brand:
  • Manufacturer Warranty:
    1 Year



Optimize WLAN Range and Power with the ProSAFE® 9 dBi Indoor/Outdoor Omni-directional Antenna
     The ANT2409 indoor/outdoor 2.4 GHz antenna provides extended point to multi-point coverage for wireless 802.11 b/g/n devices. Optimal for medium range indoor or outdoor point-to-multi-point applications. Included lightning arrestor helps prevent damage due to lightning-induced surges or static electricity in outdoor applications. Typically hung from crossbars of drop ceilings or on a rooftop, the waterproof and UV resistant ANT2409 includes wall and pole mounting materials for installation ease; antenna cable and grounding cable not included.
     NETGEAR ProSAFE® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.

   NETGEAR Warranty
  • This product is backed by a NETGEAR limited 1-year Hardware Warranty.

  • ProSupport Lifetime 24x7 Advanced Technical Support. (Remote diagnostics performed by our technical experts for prompt resolution of technical issues).

Data Sheet (PDF)Data Sheet (PDF)
Product NumberANT2409
Wireless SignalIEEE 802.11g
Typical ApplicationIndoor/outdoor
Maximum Outdoor Range*11.5 km (7.2 miles)
Frequency Range2400 2485 MHz
Gain**9 dBi
Beam WidthHorizontal 360° Vertical 30°
Operating Temperature-30º to 80º C (-22º to 176º F)
Dimensions625 x 75 x 56 mm (24.6 x 2.95 x 2.2 in)
Weight0.9 kg (2 lb)
  • Antenna - Reverse N female

  • Lightening Arrestor - Reverse N female

  • Adapter - Reverse SMA

Package Contents
  • Indoor/Outdoor 9 dBi Omni-directional

  • Antenna - ANT2409 (cable required, sold separately)

  • Wall and pole mount brackets and hanging materials

  • One reverse N type to reverse SMA adapter

  • 2 m low-loss antenna cable (connection for lightening arrestor)

  • Lightening arrestor

  • Installation guide and Warranty/support card

Note*Range estimation is based on FCC-compliant operation of two (2) 802.11 APs each with two (2) ANT24D18 antennas placed at 90 degree rotation, 5 m antenna cables, and lightning arrestors installed. With the antennas positioned 36 m above the ground, data rate should sustain 1 Mbps under ideal line-of-sight conditions.
   **Gain: A ratio of decibels to an isotropic antenna that is commonly used to measure antenna coverage.

* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
