Material

Plastic, rubber, PCB

Fan Rated Voltage

12 V DC, 0.2 A, 2.4 W

LED Quantity

8

Bearing

Fluid Dynamic Bearing (FDB)

Fan Connector

4-pin PWM

DIMENSIONS

Height

120mm

Width

120mm

Depth

26mm

COOLING

Speed

500 - 1,800 ± 180RPM

Airflow

78.86 CFM

Static Pressure

2.57 mm H2O

Noise

33.88 dBA

Bearing

Fluid Dynamic Bearing

Power Consumption

12 V DC, 0.2 A, 2.4 W

Connector

4-pin PWM

Output LED

8 LEDs

CONNECTIONS & CABLE LENGTH

PWM

4-pin PWM Fan Cable – 600mm x1

NZXT RGB

4-pin NZXT RGB Cable – 600mm x1

FAN LIFE

Hours

60,000

Years

6

RGB CONTROLLER

Dimensions

63.2 x 53.2 x 12.8mm

Weight

52.8g

Material(s)

Plastic, PCB, Magnets

Mounting

2x 3M Dual Lock

Connections

1 x USB 2.0 Header, 1 x SATA

Input Connector

12V DC / 2.6A

Output Channel Voltage

5V DC

RGB Lighting Channels

3

Lighting channels support

Up to 40 LEDs per channel and up to 120 LEDs combined total for the 3 channels

SYSTEM REQUIREMENTS

System Requirement

PC with available NZXT RGB lighting connector and Windows 11/10 operating system.

Internal Connector

Requires a USB 2.0 internal connector

OTHERS

Inside the Box

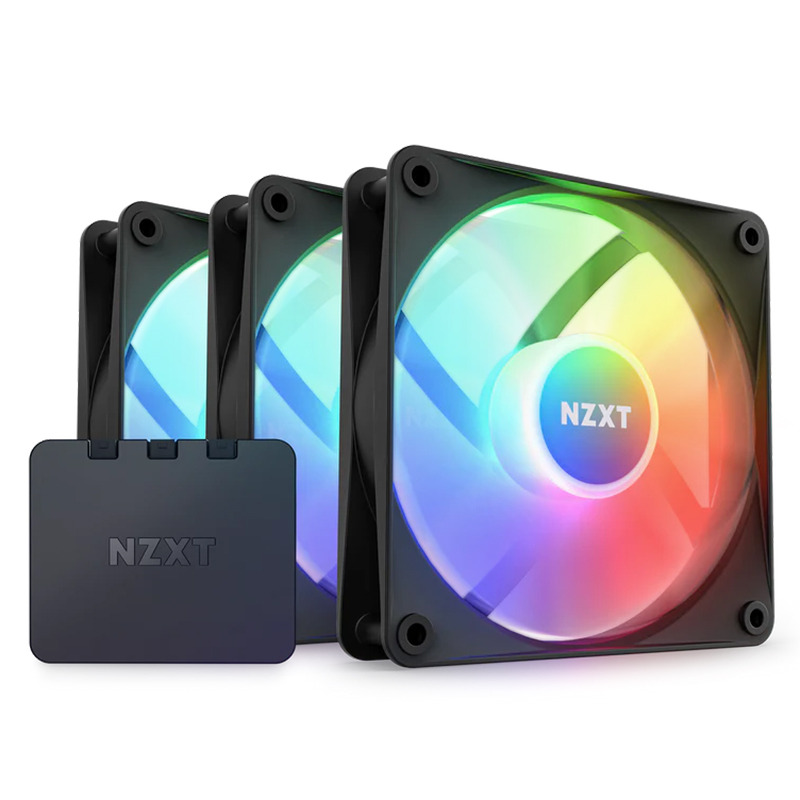

120mm RGB Fan x3

Mounting Screws x12

RGB Controller
