Dimensions

462 x 222 x 471 (DWH)

Form Factor

Mid Tower

Materials

Steel + Plastic + Wood

Mainboard Support

ATX, Micro-ATX , ITX

Front Access & Controls

Power, Reset, USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps)x 1, Headphone/Mic Combo Jack

Side Panel

4mm Tempered Glass

DRIVE BAYS

Expansion Slots

7

3.5″/2.5″

2/1

FAN SUPPORT

Top

3 x 120mm / 2 x 140mm

Right Hand Side

2 x 120mm

Power Supply Shroud

3 x 120mm

Rear

1 x 120

Included Fan(s)

2 x 120mm V12R PWM ARGB Reverse Fans on the right hand side + 1 x 120mm V12 PWM ARGB Fan in the rear

RADIATOR SUPPORT

Top

360/240/120mm

Right Hand Side

240/120mm

Rear

120mm (Length≤160mm)

CLEARANCE

Max GPU Length

≤435mm

< 280mm (with right-side radiator installed)

Max CPU Cooler Height

≤175mm

Max PSU Length

(Include Cable) ≤ 270mm

MISCELLANEOUS

Dust Filter

Top / Bottom / Right Hand Side

Net Weight

7.03 Kg

Gross Weight

8.65 Kg

Special Features

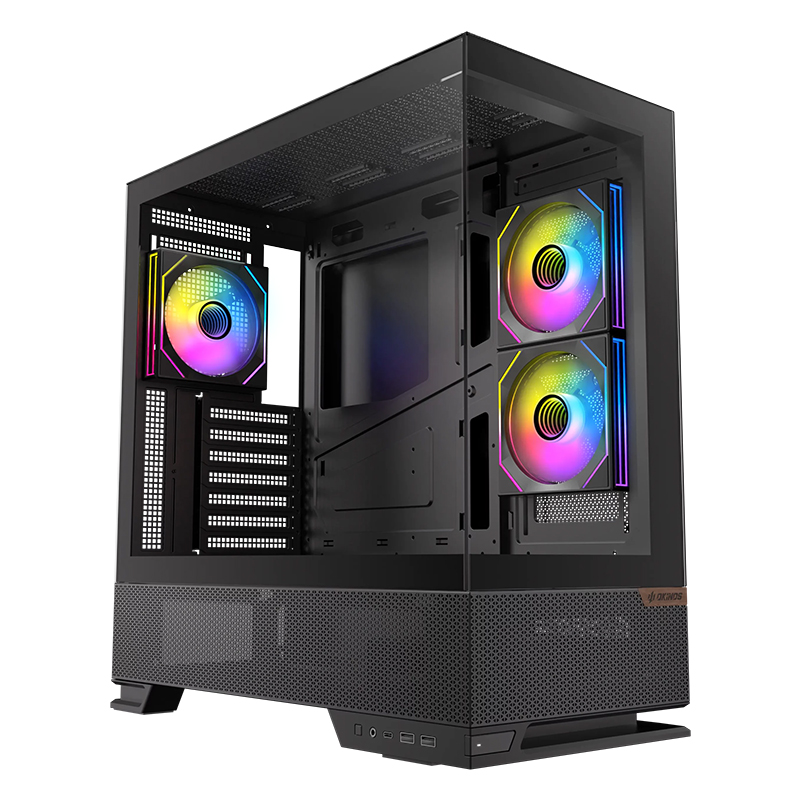

• Panoramic 270° view design with a floating case stand and a walnut wood badge on the front, offering exceptional airflow and a refined fusion of modern elegance.

• Tool-free front and left panels allow quick access, while the right panel is secured with 2 fixed screws for added stability.

• Multi-directional ventilation openings on the bottom, left, top, and right accelerate vertical airflow and improve cooling efficiency.

• Pre-installed with 3 Infinity Mirror ARGB + PWM fans, combining powerful cooling with stunning lighting for an immersive gaming experience.

• Supports 360mm top radiator for high-efficiency liquid cooling setups.

• Convenient left-side lower IO with Type-C 3.2 Gen 2 (10Gbps) for easy desktop access.

• Full-size magnetic filters are included on the top (with a convenient handle), right side, and bottom, ensuring effortless cleaning and comprehensive dust protection.
