Home  > PC Parts  > Networking  > Switches > QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)

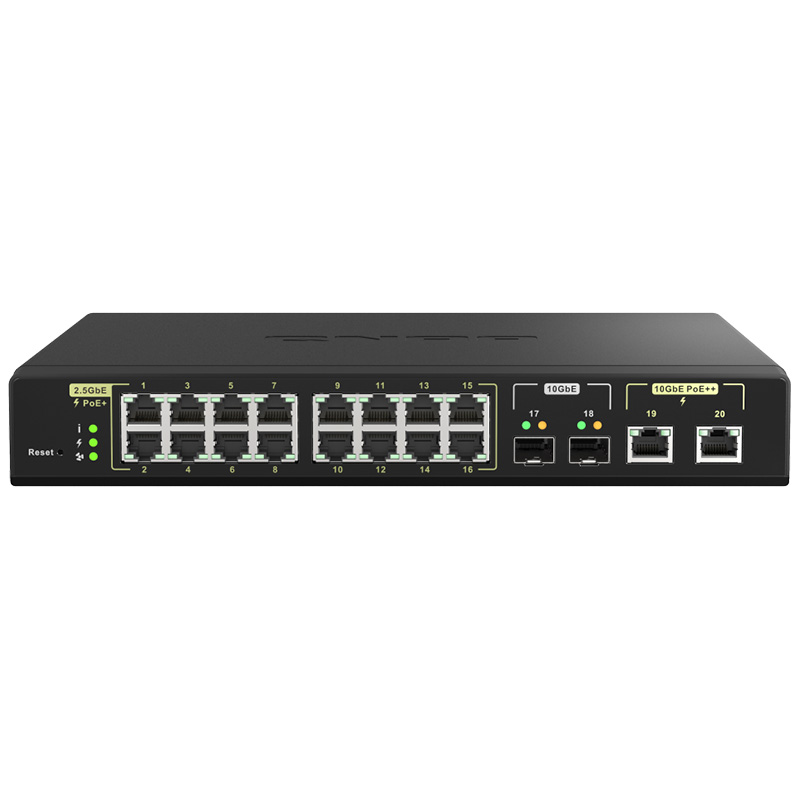

QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)

20‑port rackmount switch with 16 PoE+ (30W) and 2 PoE++ (90W) ports, 2×10GbE SFP+, 2×10GbE BASE‑T, 16×2.5GbE RJ45, 280W PoE budget, 80Gbps non‑blocking, 160Gbps capacity, web UI, LACP, VLAN, QoS, ACL, LLDP, port mirroring.

QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-7
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-3
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-4
  • Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-5
$1,595.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Carlingford New Out Of Stock
    • Crows Nest New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    • Osborne Park Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 32hrs and 33mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-1
Switches-QNAP-16-Port-90-watt-10GbE-PoE-and-30-watt-2-5GbE-PoE-Managed-Switch-QSW-M2116P-2T2S-2



SPECIFICATIONS:

HARDWARE


Management Type

Web Managed

Number of Ports

20

10GbE SFP+

2

10GbE BASE-T (RJ45)

2

2.5GbE (RJ45)

16

Total PoE Ports

18

PoE PSE (802.3af, 15.4W)

Port 1-16

PoE+ PSE (802.3at, 30W)

Port 1-16

PoE++ PSE (802.3bt, 90W)

Port 19-20

PoE Power Output

Port 1-16 (30W), Port 19-20 (90W)

Total PoE Power Budget

280W

Power Supply Description

Internal Power Supply Unit

Max. Power Consumption

350W

Input Power Type

AC

Input Voltage Range

100-240VAC, 50/60 Hz

MAC Address Table

32K

Total Non-Blocking Throughput

80Gbps

Switching Capacity

160Gbps

Management Interface

Web

Console

RJ45

Fan

PWM double ball bearing fan x 2

Supported Standards

IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10G BASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.3af/at/bt Power-over-Ethernet (PoE)

Form Factor

Rackmount

LED Indicators

Per Port: Speed/Link/Activity
Per System: Status/PoE/Fan

Buttons

Reset button

Dimensions (HxWxD)

43.5 x 285 x 234.8 mm

Weight (Net)

2.08 kg

Weight (Gross)

2.13 kg

Operating Temperature

0˚C to 40°C (32°F to 104°F)

Relative Humidity

5~95% Non-condensing

Certifications

CE, FCC, VCCI, BSMI

Electromagnetic Compliance

CLASS A

Jumbo Frames

9K

SOFTWARE


Standards Compliance

IEEE 802.3 Ethernet

IEEE 802.3u 100BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3bz 2.5G/5GBase-T

IEEE 802.3an 10G BASE-T

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3ae 10G Fiber

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.1Q VLAN Tagging

IEEE 802.3ad LACP

IEEE 802.1AB LLDP

IEEE 802.3af/at/bt Power over Ethernet(PoE)

Port Management

Port status

Port statistics

Port configuration

Jumbo frame support

IEEE 802.3x flow control

Auto-negotiation of speed and duplex modes

PoE

Power consumption monitor

Port configuration

PoE scheduling

VLAN

VLAN configuration

IEEE 802.1Q-based VLAN

Layer 2 Features

LACP

IGMP snooping v2

QoS

Port-based QoS

VLAN-based QoS

Traffic

MAC address table

Rate limit

Security

Access Control Lists (ACL): ACL by IP address

Firmware management

Firmware Live Update

Firmware Manual Update

Other Features

Link Layer Discovery Protocol (LLDP): LLDP remote device

Interface: Web UI

SNTP, DNS, DHCP client entry

Loop protection

Port mirror

OTHERS


Package Content

QSW-M2116P-2T2S

Power Cord

Rackmount kit

Rubber feet

Quick Installation Guide




  • Product Name:
    QNAP 16-Port 90-watt 10GbE PoE++ and 30-watt 2.5GbE PoE+ Managed Switch (QSW-M2116P-2T2S)
  • Model Number:
    QSW-M2116P-2T2S
  • Brand:
    QNAP QNAP
  • Warranty Period:
    2 Year
