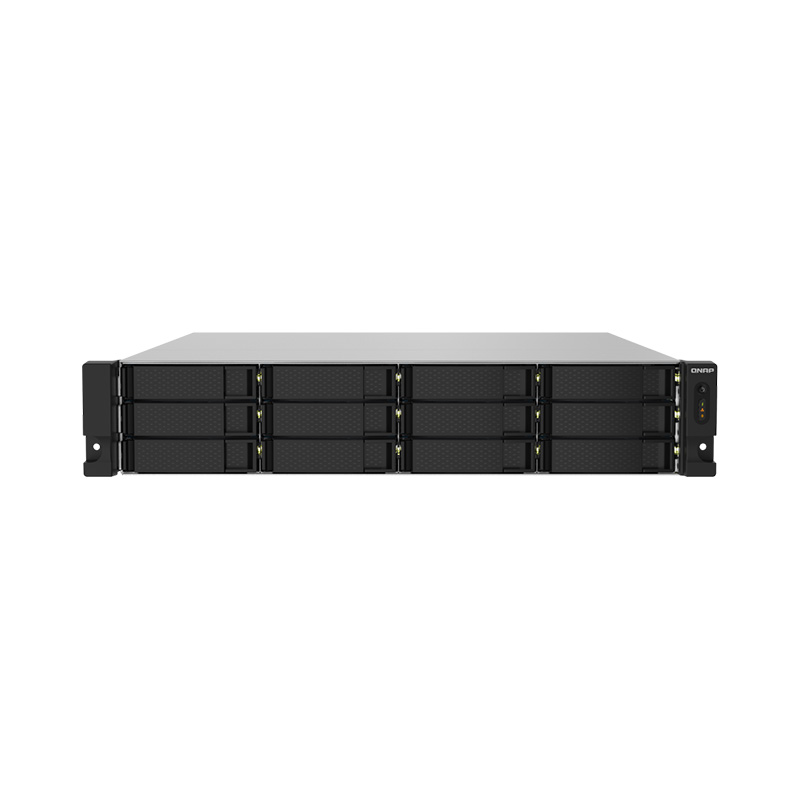

QNAP TS-1232PXU-RP-4G 3.5in SATA AL324 1.7GHz Quad Core 4GB DDR4 UDIMM - 2U

CPU Architecture

64-bit ARM

Floating Point Unit

✓

Encryption Engine

✓

System Memory

4 GB UDIMM DDR4 (1 x 4 GB)

Maximum Memory

16 GB (1 x 16 GB)

Memory Slot

1 x UDIMM DDR4

Flash Memory

512 MB (Dual boot OS protection)

Drive Bay

12 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

✓

SSD Cache Acceleration Support

✓

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (2.5G/1G/100M/10M)

10 Gigabit Ethernet Port

2 x 10GbE SFP+

Wake on LAN (WOL)

Only the 2.5GbE port

Jumbo Frame

✓

PCIe Slot

1
Slot 1: PCIe Gen 2 x2

PCIe bandwidth limitations will restrict the NAS 10GbE performance.
Card dimensions for PCIe slot：220 x 68.9x 18.76 mm / 8.67 x 2.71 x 0.74   inches.

USB 3.2 Gen 1 port

4

Form Factor

2U Rackmount

LED Indicators

HDD 1-12, Status, LAN, Storage expansion

Buttons

Power, Reset

Dimensions (HxWxD)

89 × 482 × 534 mm

Excludes ear hook and the protruding part of the Power Supply Unit.

Weight (Net)

11.34 kg

Weight (Gross)

17.27 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

250W (x2) PSU, 100 - 240V

Power Consumption: Operating Mode, Typical

83.57 W

Tested with drives fully populated.

Fan

2 x 70mm, 12VDC

System Warning

Buzzer

Max. Number of Concurrent Connections (CIFS)

- with Max. Memory

700
