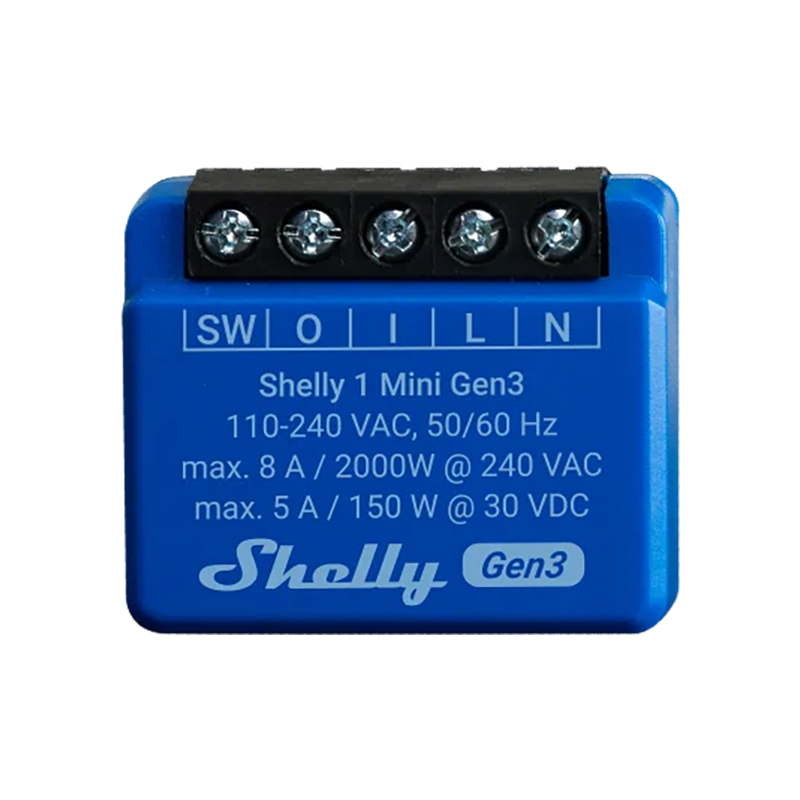

Shelly 1 Mini Gen3 Wi-Fi Relay Switch (SH-SHELLY1-M)

Size (HxWxD)

29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 in

Weight

19 ±1 g / 0.65 ±0.04 oz

Screw terminals max torque

0.4 Nm / 3.5 lbin

Conductor cross section

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in

Mounting

Wall box

Shell material

Plastic

Shell color

Blue, C-95%; M-53%; Y-0%; K-0%

Terminal Color

Black

ENVIRONMENTAL

Ambient working temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply

110 - 240 VAC

Relay

Dry, NO contact, 1-pole, µ contact

Power consumption

< 1.2 W

External protection

Tripping characteristic B or C,
10A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3

OUTPUT CIRCUITS RATINGS

Max. switching voltage

Max. switching current

Max. output power

Voltage protection / Cutoff

No

Current protection / Cutoff

No

Max power protection / Cutoff

No

SENSORS, METERS

Internal-temperature sensor

Yes

RADIO

WI-FI

Protocol

802.1  b/g/n

RF band

2401 - 2495 МHz

Max. RF power

< 20 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

4.2

RF band

2400 - 2483.5 MHz

Max. RF power

< 4 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

ESP-Shelly-C38F

Flash

8 MB

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

UDP

Yes

Advanced schedules

Yes

KVS (Key-Value Store)

Yes
