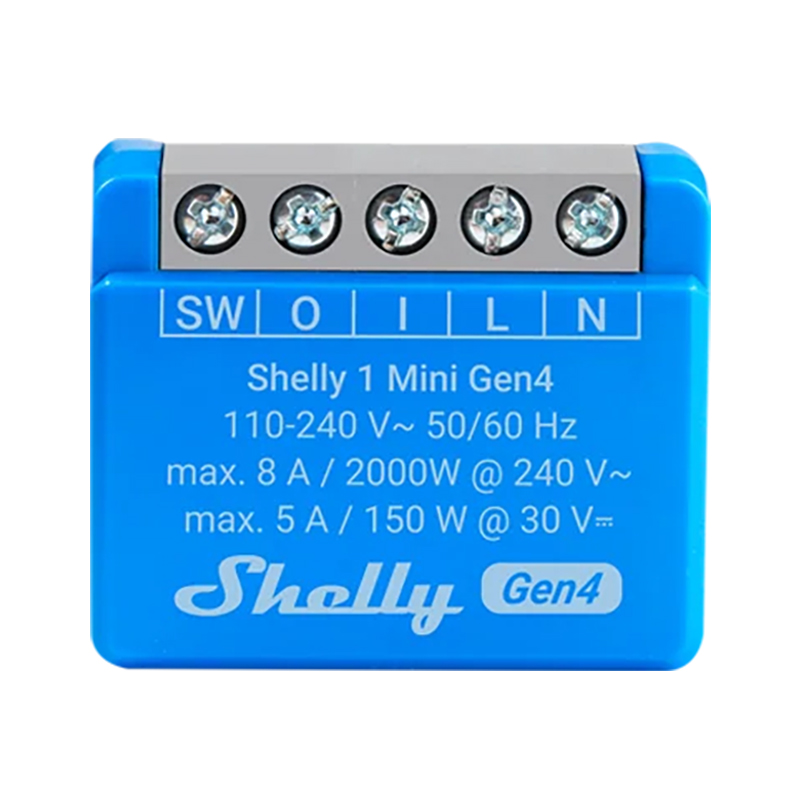

Shelly 1 Mini Gen4 One-channel Dry Contact Smart Switch for Controlling Lights and Appliances (SH-SHELLY1-MG4)

Size (HxWxD)

29x34x16 ±0.5 mm / 1.34x1.11x0.63 ±0.02 inch

Weight

19 ±1 g / 0.65 ±0.04 oz

Screw terminals max torque

0.4 Nm / 3.5 lbin

Conductor cross section

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in

Mounting

Wall box

Shell material

Plastic

Shell color

Blue, C-95%; M-53%; Y-0%; K-0%

Connectors color

Grey (Mouse Grey)

ENVIRONMENTAL

Ambient working temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply

110 - 240 V~

Relay

Dry, NO contact, 1-pole, µ contact

Power consumption

< 1.2 W

External protection

Tripping characteristic B or C,
max. 10A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3

OUTPUT CIRCUITS RATINGS

Max. switching voltage

240 V~

30 V⎓

Max. switching current

8 A/240 V~

5 A/30 V⎓

Max. output power

2000 W/240 V~

150 W/30 V⎓

Voltage protection / Cutoff

No

Current protection / Cutoff

No

Max power protection / Cutoff

No

SENSORS, METERS

Internal-temperature sensor

Yes

RADIO

WI-FI

Protocol

802.11 b/g/n/ax

RF band

2412 - 2472 МHz

Max. RF power

< 20 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

5.0

RF band

2402 - 2480 MHz

Max. RF power

< 4 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

ZIGBEE

Protocol

802.15.4

RF bands

2400 to 2483.5 MHz

Max. RF power

< 20 dBm

Range

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

ESP-Shelly-C68F

Flash

8 MB

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes
