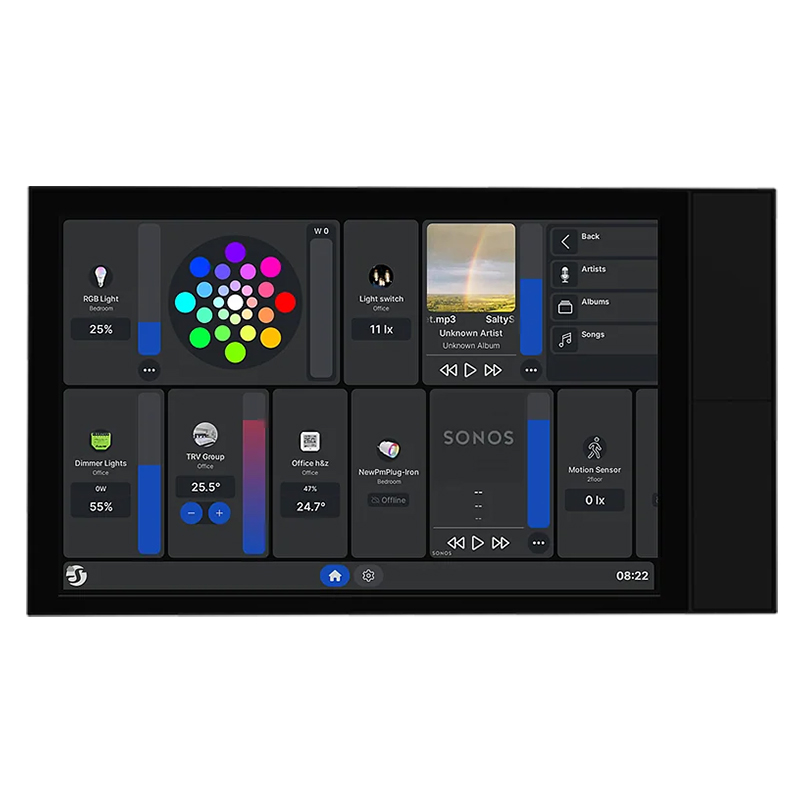

Shelly 10.1in HD Touch Wall Display XL Black (SH-SHELLYWALLBXL)

Size (HxWxD)

155,8x272,5x38,3 mm / 6.13x10.7x1.50 inch

Weight

920 g / 32.45 oz

Touch Screen

5-point capacity screen, G+FF touch

Screen resolution

1280x752 px

Screw terminals max torque

0.4 Nm / 3.5 lbin

Conductor cross section

0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 15 mm / 0.24 to 0.59 in

Mounting

Wall box

Shell material

Metal stamping, PC with coating, glass

Shell color

Black

Speaker

2x 2 W (BOX sound cavity)

ENVIRONMENTAL

Ambient working temperature

-20°C to 40°C / -5°F to 105°F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply

100 - 240 V~ 50/60Hz

Power consumption

< 15 W

USB TYPE-C power supply

5 V⎓ / 3 A

Power Button

1 button for turning On/Off the screen

OUTPUT CIRCUITS RATINGS

Max. switching voltage

240 V~

Max. switching current

5 A

Output (AC)

100 - 240 V~ 50/60Hz

Output (USB TYPE-C)

5 V⎓ / 0.5 A

SENSORS, METERS

Internal-temperature sensor

No

Ambient temperature sensor

No

Humidity sensor

No

Light sensor

Yes

Microphone

Yes (Four-microphone line array)

G-sensor

No

Motion sensor

Yes (≤1 meter)

RADIO

WI-FI

Protocol

Wi-Fi 6 Dual Band

RF band

2412 – 2472 MHz

5150 – 5850 MHz

Max. RF power

< 14 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

5.4

RF band

2402 - 2480 MHz

Max. RF power

< 4 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

Rockchip RK3566 Quad core Cortex-A55 1.8GHz

RAM

2 GB

Flash

32 GB

System

Android 11

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

No

MQTT

Yes
