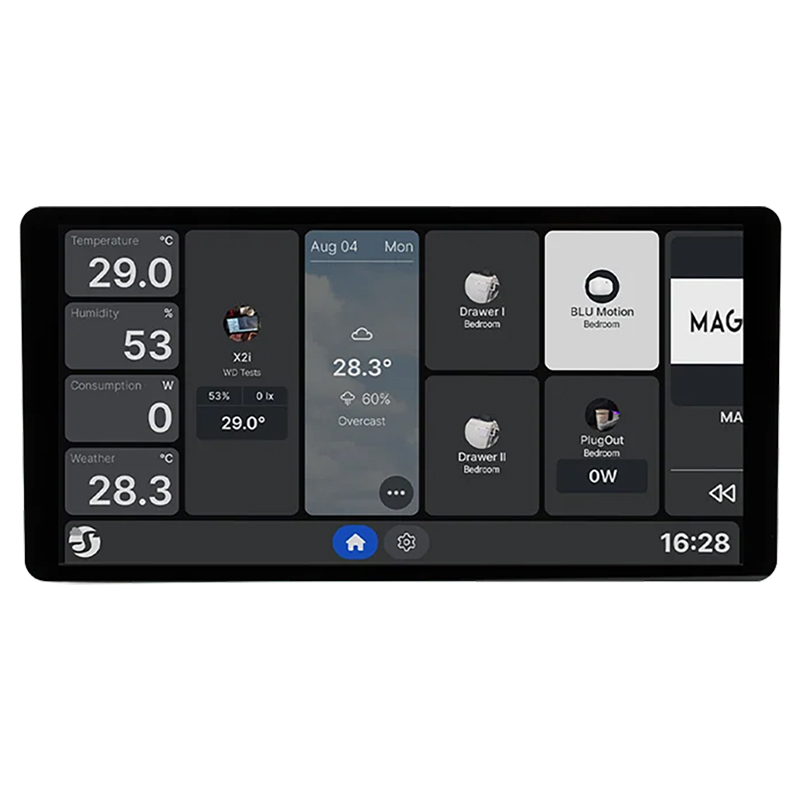

Shelly 6.9in Touch Wall Display X2i - Black (SH-SHELLYWALLBX2I)

Size (HxWxD)

With power base: 87x178x36 mm / 3.43x7x1.42 inch

Without power base: 87x178x11 / 3.43x7x0.43 inch

Weight

With power base: 292 g / 10.3 oz

Without power base: 246 g / 8.68 oz

Touch Screen

5-point capacitive

Screen resolution, px

1440x720p

Screw terminals max torque

0.4 Nm / 3.5 lbin

Conductor cross section

0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 inch

Mounting

Wall box

Shell material

Plastic, aluminum, glass

Shell color

Display: Black

1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%)

Speaker

0.8W*1

ENVIRONMENTAL

Ambient working temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply

100-240 V~, 50/60Hz

Power consumption

< 5 W

USB TYPE-C power supply

5 V⎓, 1 A

OUTPUT CIRCUITS RATINGS

Max. switching voltage

240 ~

Max. switching current

5 A

USB TYPE-C, voltage

5 V⎓

USB TYPE-C, current

0.5 A

SENSORS, METERS

Light sensor

Yes

Microphone

Yes

G-sensor

Yes

Proximity sensor

Yes

RADIO

WI-FI

Protocol

Wi-Fi 6 Dual Band

RF band

2412 – 2472 MHz

5150 – 5850 MHz

Max. RF power

< 20 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

5.0

RF band

2402 - 2480 MHz

Max. RF power

< 4 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

Rockchip RK3326-S Quad core Cortex-A35 1.5GHz

RAM

2 GB

Flash

8 GB

System

Android 11

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 2 URLs per hook…

Scripting

No

MQTT

Yes
