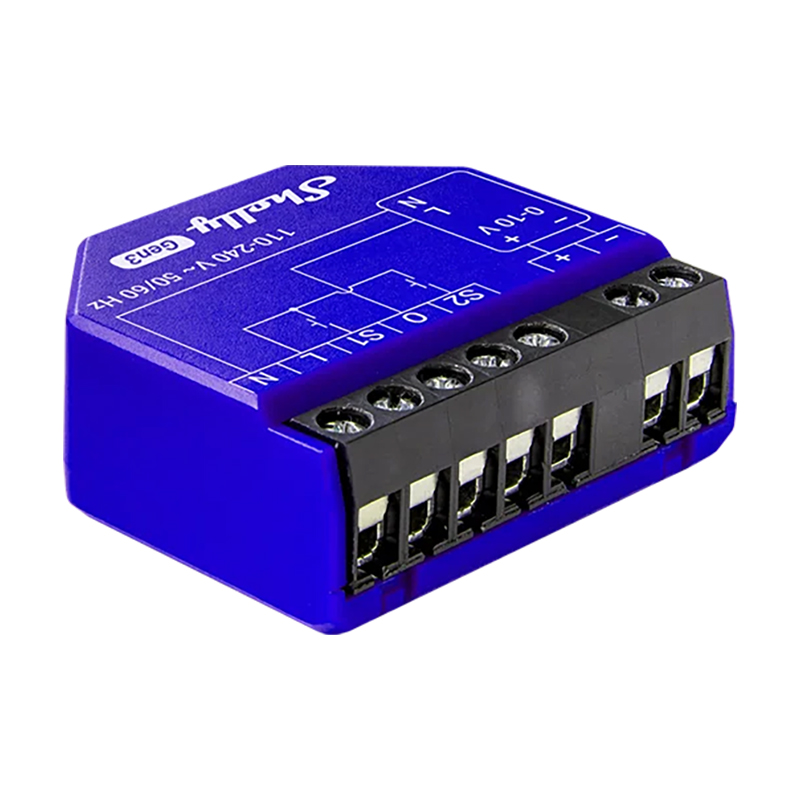

Shelly Dimmer 0/1-10V Gen3 Wi-Fi Dimmer Controller with Power Measurement (SH-SHELLY-01DIM)

Size (HxWxD)

38.5x43.5x17mm / 1.52x1.71x0.67in

Weight

28.5 g / 0.99 oz

Screw terminals max torque

0.4 Nm / 3.5 lbin

Conductor cross section

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

5 to 6 mm / 0.20 to 0.24 in

Mounting

Wall console/behind wall/ceiling construction

Shell   material

Plastic

Shell color

Shell: Pantone 2736C (blue)

Print: White

Connector color

Black

ENVIRONMENTAL

Ambient working temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply

110-240 V~ 50/60 Hz

Power consumption

< 1.5 W

Neutral not needed

No

0-10V/1-10V voltage control type

Current sourcing

External protection

16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3

OUTPUT CIRCUITS RATINGS

Max. switching voltage

240 V~

Max. switching current

13 A

Max. control current

35 mA

SENSORS, METERS

Voltmeter (AC)

110 V - 240 V

Voltmeter accuracy

±10 %

Ammeter (AC)

50 mA - 16 A

Ammeter accuracy

±10 %

Power and energy meters

Active and apparent power

Active and apparent energy

Power factor

Measurement data storage

No

Internal-temperature sensor

Yes

RADIO

Wi-Fi

Protocol

802.11 b/g/n

RF band

2401 - 2495 МHz

Max. RF power

< 20 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

4.2

RF band

2400 - 2483.5 MHz

Max. RF power

< 4 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

Shelly ESP32 C3

Clock frequency

40 Mhz

Flash

8 MB

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

Advanced schedules

Yes

KVS (Key-Value Store)

Yes
