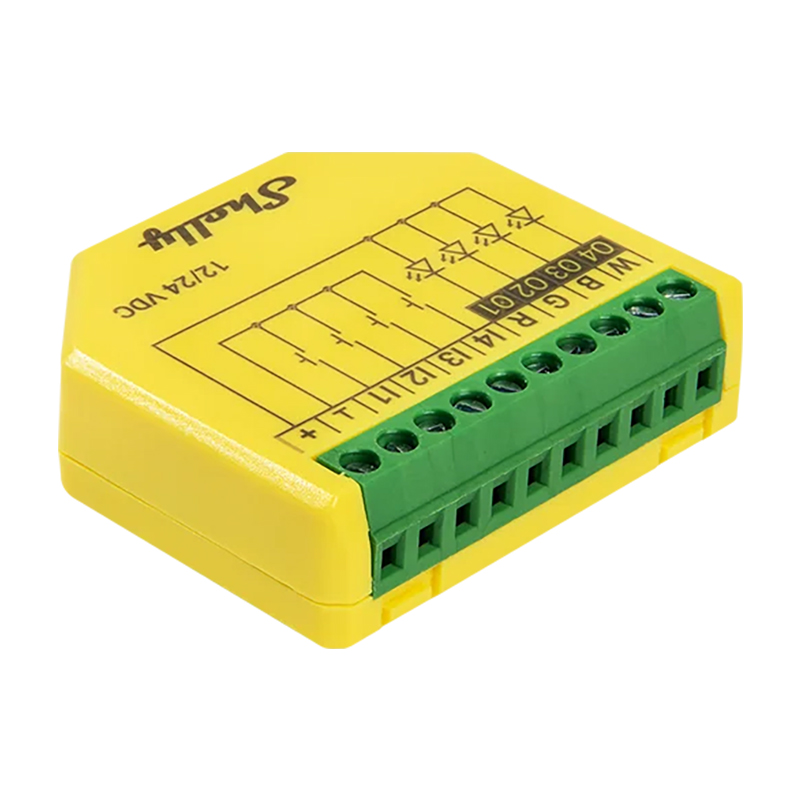

Shelly Plus RGBW PM Wi-Fi LED Controller with Power Measurement (SH-SHELLYRGBWPM)

Size (HxWxD)

42x37x12 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in

Weight

17 g / 0.60 oz

Screw terminals max torque

0.2 Nm / 1.8 lbin

Conductor cross section

0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length

6 mm / 0.24 in

Mounting

In-wall

Shell material

Plastic

Shell color

Yellow

Connectors color

Green

ENVIRONMENTAL

Ambient working temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

ELECTRICAL

Power supply

12/24 VDC

Power consumption

< 1.2 W

OUTPUT CIRCUITS RATINGS

Max. control voltage

24 VDC

Max. control current

4 A per channel (10 A total)

PWM frequency

833 Hz

SENSORS, METERS

Voltmeter

0-24 V

Voltmeter accuracy

± 5%

Ammeter

0-10 A

Ammeter accuracy

± 10%

Power and energy meters

Power measurement

No load threshold

0.5 VA per channel

Internal-temperature sensor

Yes

RADIO

WI-FI

RF band

IEEE 802.11b/g/n HT20: 2412–2472 MHz

IEEE 802.11n HT40: 2422-2462 MHz

Max. RF power

< 20 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

4.2

RF band

2400 - 2483.5 MHz

Max. RF power

< 4 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

ESP-Shelly C38F

Clock frequency

160 Mhz

RAM

400 KB

Flash

4 MB

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

Scripting

Yes
