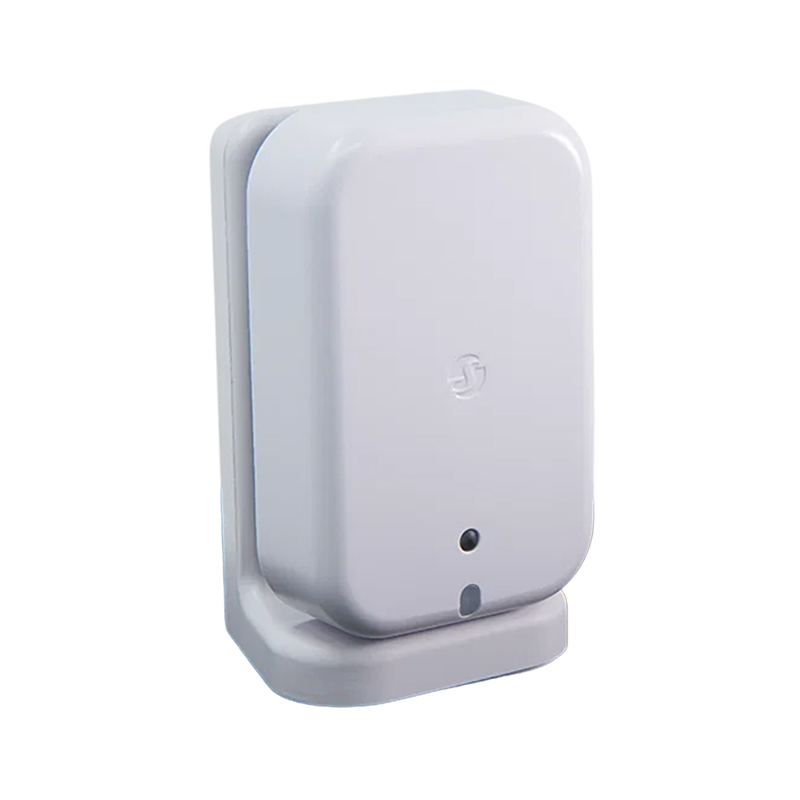

Shelly Presence Gen4 - White (SH-SHELLYPRESW)

Size (HxWxD)

64x41x26 mm / 2.49x1.59x1.02 inch (without stand)

73x41x37 mm / 2.87x1.61x1.46 inch (with stand)

Weight

42 g / 1.48 oz (without stand)

85 g / 3.00 oz (with stand)

Mounting

Freestanding base - for horizontal placement on shelves, tables, or wardrobes

Adhesive tape - for tool-free installation on flat surfaces

Screws and wall plugs - for installation on walls or other solid surfaces

Shell material

Plastic with aluminum back

Shell color

White

ENVIRONMENTAL

Ambient working temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000  m / 6562 ft

ELECTRICAL

Power supply

5 VDC via USB-C, 1 A

Power consumption

2.5 W (nominal)

3.5 W (max)

SENSORS, METERS

Light sensor

Yes

Radar sensor

Yes

RADIO

WI-FI

Protocol

802.11 b/g/n/ax

RF band

2401 - 2483 МHz

Max. RF power

< 20 dBm

Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

BLUETOOTH

Protocol

5 (LE)

RF band

2402 - 2480 MHz

Max. RF power

< 20 dBm

Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

ZIGBEE

Protocol

802.15.4

RF bands

2405 to 2480 MHz

Max. RF power

< 20 dBm

Range

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors

(Depends on local conditions)

MICROCONTROLLER UNIT

CPU

ESP-Shelly-C68F

Flash

8 MB

FIRMWARE CAPABILITIES

Schedules

20

Advanced schedules

Yes

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

UDP

Yes

Encryption

Yes

KVS (Key-Value Store)

Yes

RADAR SPECIFIC

Radar frequency

60-64 GHz

Object detection

Yes, up to 6 objects (people)

Wall mount coverage

140 degrees horizontal (70 degrees on each side), 8 x 8 m

120 degrees vertical

Corner mount coverage

90 degrees (45 degrees on each side), 7 x 7 m

Still detection

Yes, up to 3 m
