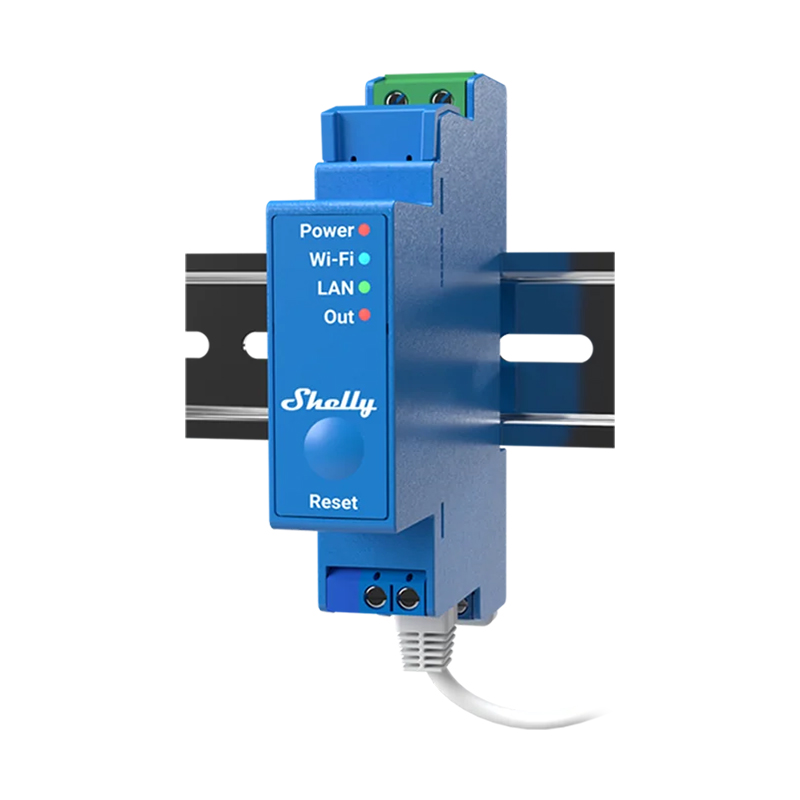

Shelly Pro1 Relay Switch (SH-SHELLYPRO1)

Compact DIN‑rail smart relay (94×19×69 mm, 63 g) with 16 A / 240 V AC switching, internal temperature sensor, ESP32‑based Wi‑Fi (802.11b/g/n) and Bluetooth 4.2, 20 schedules, webhooks, scripting and MQTT support.

Shelly Pro1 Relay Switch (SH-SHELLYPRO1)
  • Smart-Home-Automation-Shelly-Pro1-Relay-Switch-SH-SHELLYPRO1-2
$98.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Crows Nest New Out Of Stock
    • Carlingford New Out Of Stock
    • Hurstville New Out Of Stock
    • Mosman New Out Of Stock
    • Parramatta New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    • Holden Hill Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 41hrs and 9mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

SPECIFICATIONS:

PHYSICAL

Size (HxWxD)

94x19x69 ±0.5 mm / 3.70x0.75x2.71 ±0.02 in

Weight

63 g / 2.22 oz.

Mounting

DIN rail

Screw terminals max torque

0.4 Nm / 3.54 lbin

Conductor cross section

0.5 to 2.5 mm² / 20 to 14 AWG (green connector)
0.5 to 1.5 mm² / 20 to 16 AWG (blue connectors)

Conductor stripped length

6 to 7 mm / 0.24 to 0.28 in (green connector)
5 to 6 mm / 0.20 to 0.24 in (blue connectors)

Shell material

Plastic

Color

Blue

ENVIRONMENTAL

Ambient temperature

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

ELECTRICAL

Power supply voltage AC

110 - 240 V

Power supply voltage DC

N/A

Power consumption

< 3 W

Neutral not needed

No

OUTPUT CIRCUITS RATINGS

Max switching voltage AC

240 V

Max switching voltage DC

N/A

Max switching current AC

16 A

Max switching current DC

N/A

SENSORS, METERS

Internal-temperature sensor

Yes

RADIO

RF band

2400 - 2495 MHz

Max. RF power

<20 dBm

Wi-Fi protocol

802.11 b/g/n

Wi-Fi Range

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth Protocol

4.2

Bluetooth Range

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

MCU

CPU

ESP32-D0WDQ6

Flash

8 MB

FIRMWARE CAPABILITIES

Schedules

20

Webhooks (URL actions)

20 with 5 URLs per hook

Scripting

Yes

MQTT

Yes

CoAP

No




  • Product Name:
    Shelly Pro1 Relay Switch (SH-SHELLYPRO1)
  • Model Number:
    SH-SHELLYPRO1
  • Brand:
    Shelly
  • Warranty Period:
    5 Year
