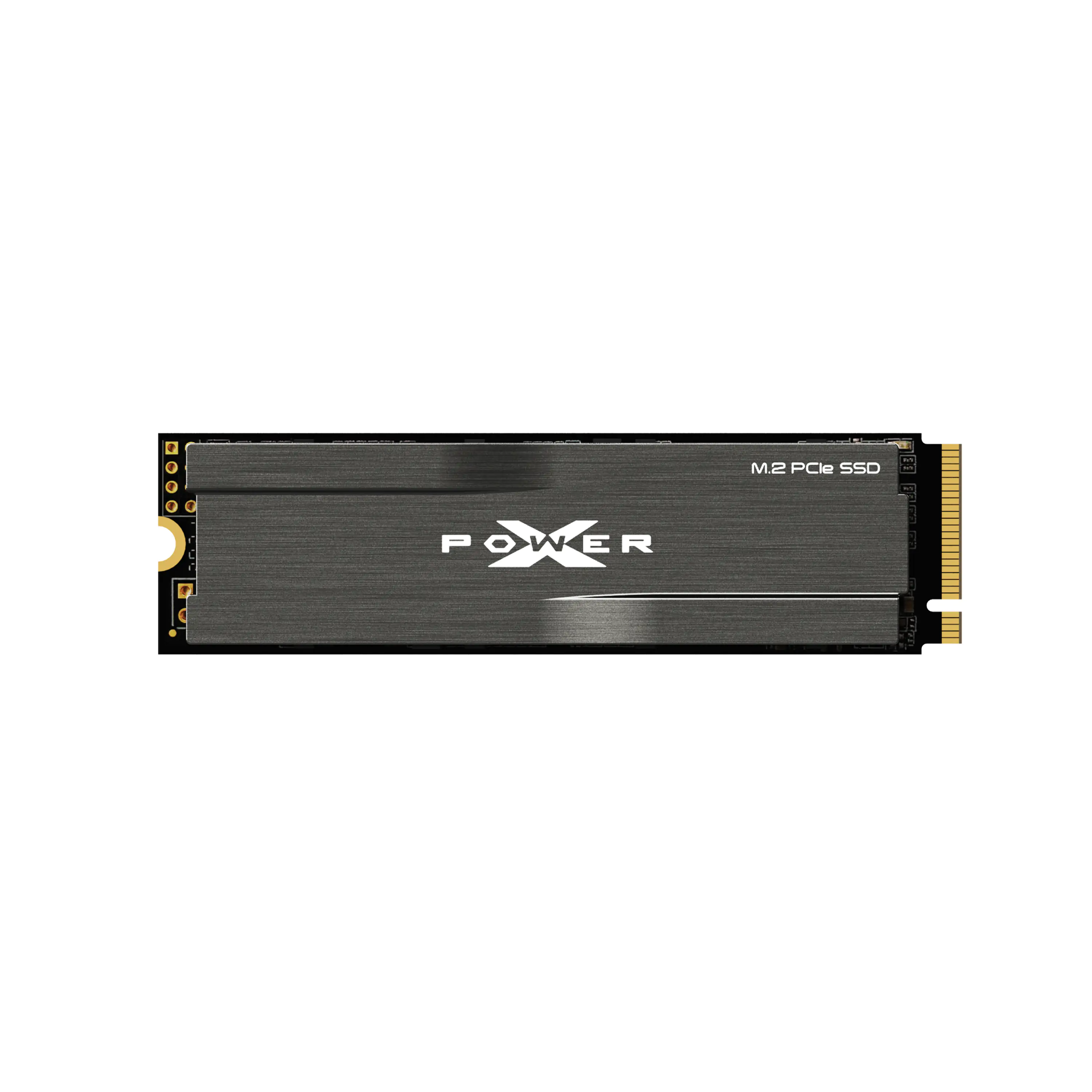

Silicon Power 1TB XD80 Gen3x4 TLC Heatsink R/W up to 3,400/3,000 MB/s PCIe M.2 NVMe SSD
|
Capacity | 256GB, 512GB,1TB, 2TB |
Dimensions | 22.0 x 80.0 x 3.5mm |
Weight | 8g |
Interface | PCIe Gen3x4 |
Performance Read(max.) | up to 3,400 MB/s |
Performance Write(max.) | up to 3,000 MB/s |
Operating Temperature | 0℃- 70℃ |
Shock Resistance Test | 1500G/0.5ms |
Certification | CE/FCC/BSMI/Green dot/WEEE/RoHS/KCC |
System Requirement | Computer with M.2 slots supporting PCIe interface, and one of the following operating systems:Windows 8.1/ Windows 10 |
TBW (TB) | 800 |
Warranty | 5 - years warranty or 800 TBW limited warranty ( Please click here for more information about Silicon Power Warranty Policy. ) |
Features
● PCIe Gen3x4 interface with read speeds up to 3,400MB/s and write speeds up to 3,000MB/s
● Ideal for performance enthusiasts building custom gaming rigs or desktops
● NVMe 1.3 support allows for higher performance, lower latency, and lower power consumption
● Available in massive storage capacity options ranging from 256GB to 2TB
● Supports SLC Caching and DRAM Cache Buffer to improve sequential read/write and random read/write performance
● Supports RAID engine technology for enhanced data integrity and stability
● Small form factor M.2 2280 (80mm) allows for easy installation in laptops and small form factor PC systems
● Durable aluminum heatsink provides maximum heat dissipation and thermal management with temperatures up to 20% lower than SSDs without a heatsink
