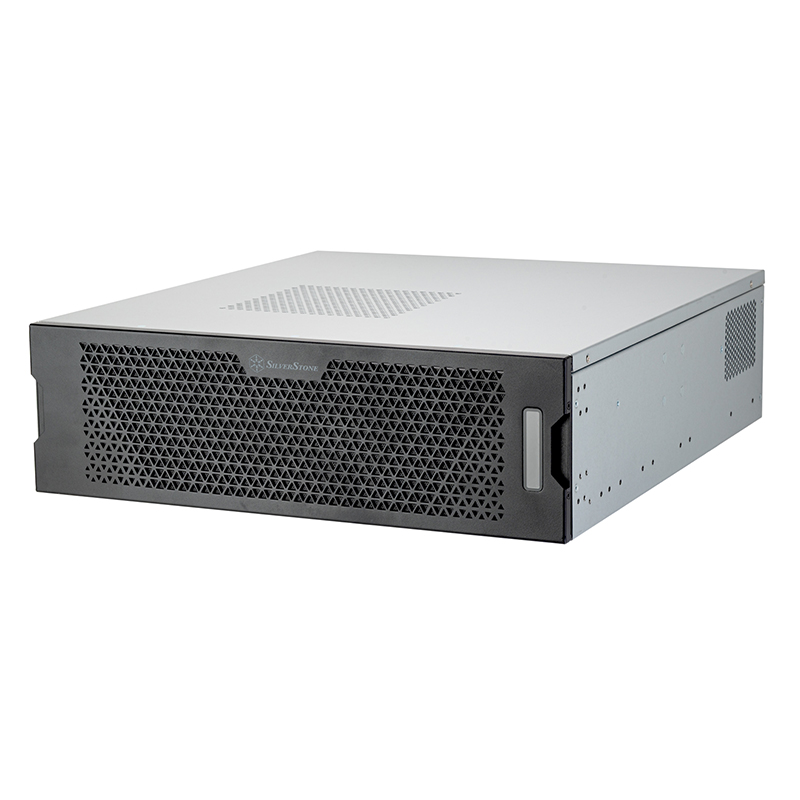

SilverStone 3U Rackmount Server Chassis Supporting 4-Slot High-End Graphics Cards and 360mm Radiators (SST-RM32)

Material

Steel

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Drive bay

Internal: 3.5"x2 or 2.5"x2, 2.5"x3

Cooling system

Front

120mm x 3

Rear

Rear I/O:

60mm x 2

Radiator support

Front

120mm / 240mm / 360mm

(Fans + radiators up to 80mm thickness)

Limitation of CPU cooler

110mm

86mm (If the CPU Cooler area is located below the riser cable)

Expansion slot

4

Limitation of expansion card

Length

360mm

Width

177mm (with SFX-L PSU)

162mm (with SilverStone 2U CRPS redundant PSU)

Power supply

SFX/SFX-L / SilverStone 2U CRPS Redundant

Limitation of PSU

250mm (Removal of 3.5" drive cage eliminates PSU depth limitation)

Front I/O port

USB Type-C x 1

USB 3.0 x 2

LED Indicators

Power status x 1: Blue

HDD activity x 1: White

LAN activity x 2: Green

Dimension

438mm (W) x 132mm (H) x 488mm (D)

Notes

* Side switch for chassis intrusion security

* Compatible with rail slide – RMS01/RMS09-20 RMS series rail slide compatibility

* Includes PCIe 5.0 x16 riser cable

* The included PCIe adapter card does not support PCIe 6.0. By setting the   motherboard BIOS / UEFI to operate in PCIe 5.0 mode, various PCIe 6.0 add-in cards can still be used with the motherboard.
