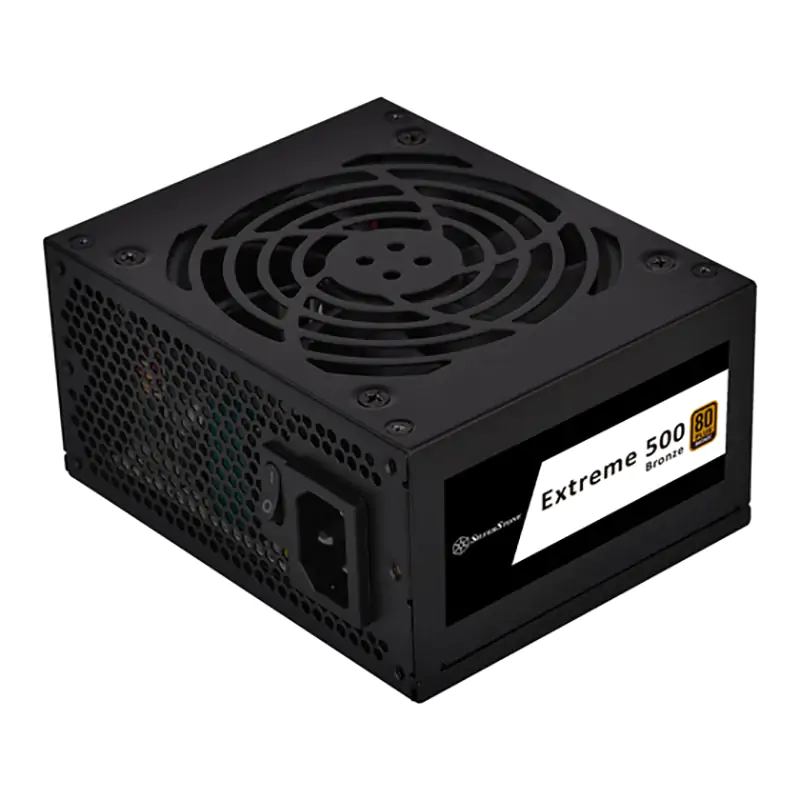

SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )

SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
$99.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Free Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 24hrs and 2mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Click & Collect.

Specifications

  • Product Name:
    SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )
  • Model Number:
    SST-EX500-B
  • Brand:
  • Manufacturer Warranty:
    5 Year
  • Description

    SilverStone 500W Extreme 80+ Bronze SFX Power Supply (SST-EX500-B )



    SPECIFICATIONS:

    Max. DC Output

    500W

    Power density

    630W per litre

    Model (safety certification)

    SST-SX0500FCBR-A

    Colour

    Black (lead-free paint)

    Combined +3.3V & +5V

    120W

    Combined +12V

    499.2W

    Input Voltage

    90 ~ 264 Vrms

    Input Frequency Range

    47Hz ~ 63Hz

    PFC

    Active PFCPF>0.9 at   Full Load

    Efficiency

    82% ~ 85% at 20% ~ 100% loading

    MTBF

    100,000 hours

    Operating temperature

    0°C ~ 40°C

    Protection

    Over Current Protection
      Over Power Protection
      Over Voltage Protection
      Short Circuit Protection
      Over Temperature Protection

    Connectors

    1 x 24 / 20-Pin motherboard connector
      1 x 8-Pin EPS / ATX 12V connector
      1 x 8 / 4-Pin EPS / ATX 12V connector
      2 x 8 / 6-Pin PCIe connectors
      3 x SATA connectors
      2 x 4-Pin Peripheral connectors
      1 x 4-Pin Floppy connector

    Cooling System

    Silent 92mm fan

    Form factor

    SFX

    Noise Level

    18 dBA minimum

    Dimension

    125 mm (W) x 63.5 mm (H) x 100 mm (D)
      4.92" (W) x 2.5" (H) x 3.94" (D)

    Weight

    1.02 kg

    Certification

    80 PLUS Bronze

    Other

    GPU Support list
      Compatible with ATX12V v2.4



    Load Range






    Output

    +3.3V

    +5V

    +12V

    +5VSB

    -12V

    Max.(Amps)

    20A

    20A

    41.66A

    2.5A

    0.3A

    Min.(Amps)

    0.0A

    0.0A

    0.0A

    0.0A

    0.0A

    Range (%)

    ±5%

    ±5%

    ±5%

    ±5%

    ±10%

    Line Reg.(%)

    ±1%

    ±1%

    ±1%

    ±1%

    ±1%

    Ripple(mVp-p)

    50mV

    50mV

    120mV

    50mV

    120mV
