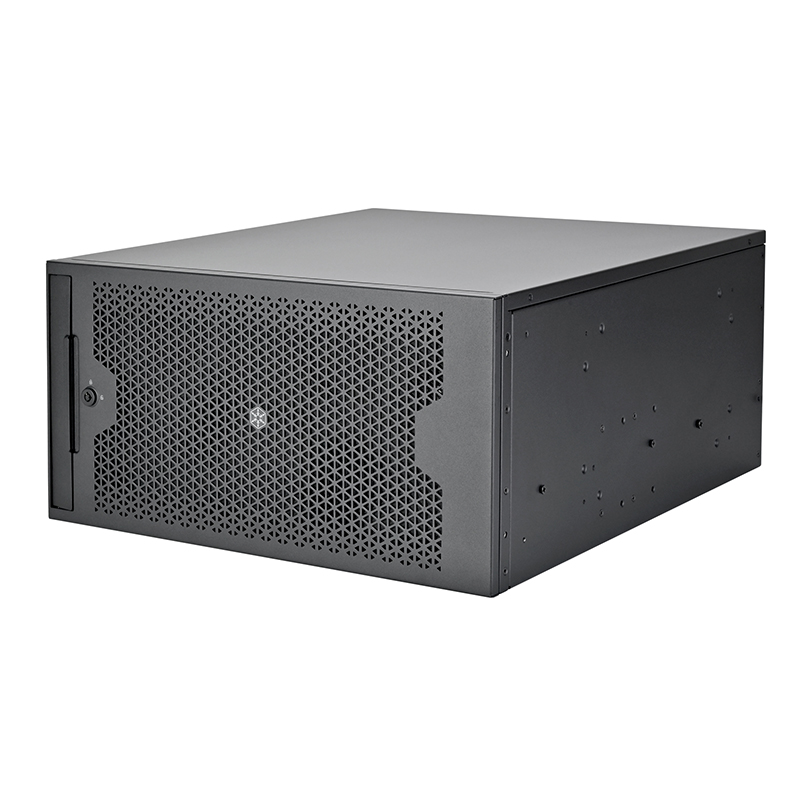

SilverStone 5U Rackmount Server Chassis (SST-RM53-502)

5U steel chassis supports SSI‑EEB, ATX, Micro‑ATX & Mini‑ITX. Holds 2×5.25” external, up to 5×2.5” internal drives. Front: 3×120 mm & 3×80 mm fans (2 included); rear: 1×140 mm (incl.) + 2×80 mm cage. Radiator up to 360 mm front, 120 mm rear. 8 slots, PS2/ATX primary, SFX secondary PSU, USB‑C, 2×USB 3.0, power/HDD/LAN LEDs.

SilverStone 5U Rackmount Server Chassis (SST-RM53-502)
  • Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-8
  • Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-4
  • Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-2
  • Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-5
  • Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-3
  • Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-6
$479.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Next Day Dispatch   Question Mark

Order within 14hrs and 32mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    SilverStone 5U Rackmount Server Chassis (SST-RM53-502)
  • Model Number:
    SST-RM53-502
  • Brand:
  • Warranty Period:
    1 Year

Description

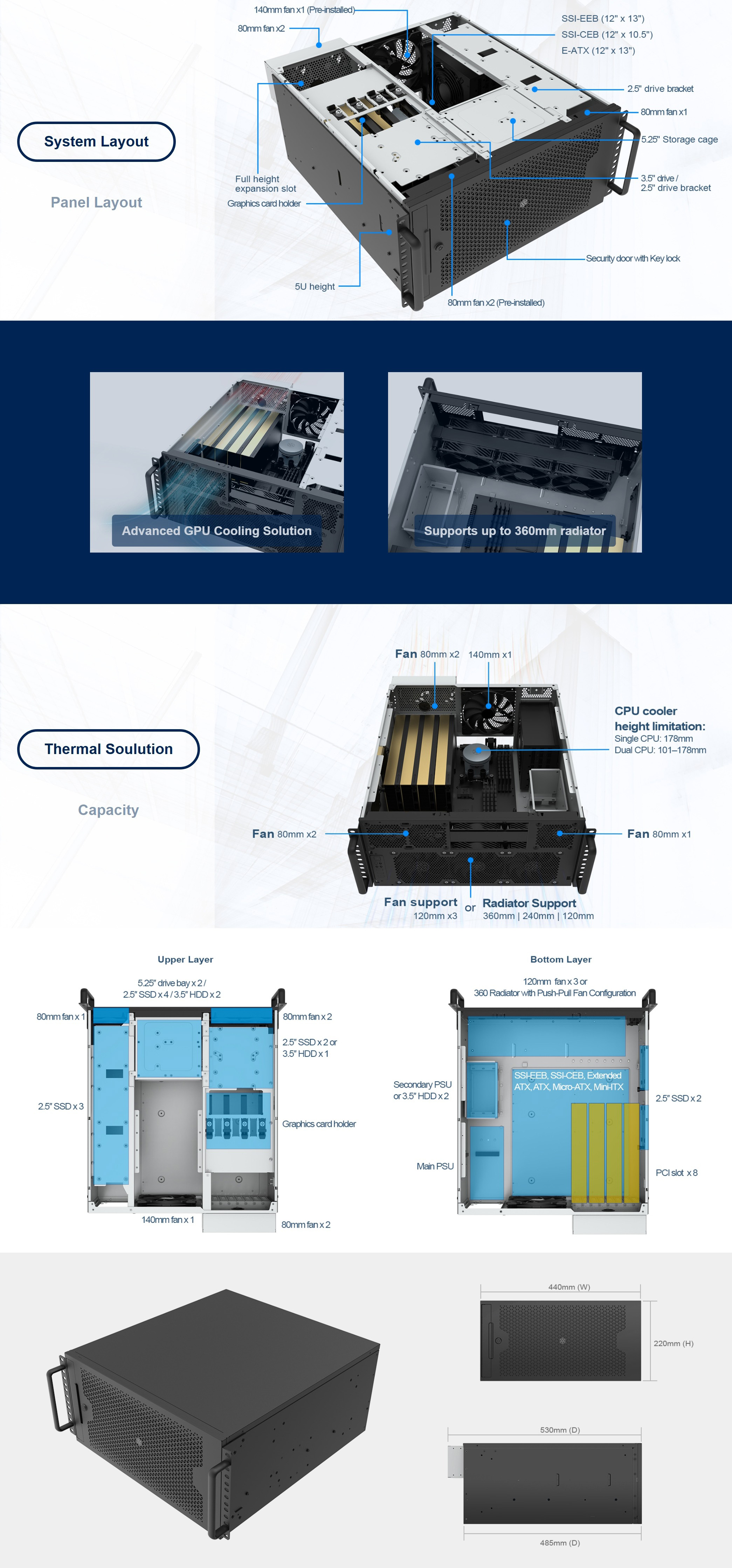

Silverstone-Cases-SilverStone-5U-Rackmount-Server-Chassis-SST-RM53-502-1




SPECIFICATIONS:

Chassis form factor

5U

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Material

Steel

Drive Support

External

5.25" x 2 (compatible with 2.5" x 4 or 3.5" x 2)



Internal

3.5” x 1 (compatible with 2.5” x 2)

3.5” x 2 (compatible with SFX PSU x 1)

2.5” x 5 (two expansion cards occupy the 8th slot position)

Cooling system

Front

120mm x 3, 80mm x 3 (2 x 80mm fans included)



Rear

Rear I/O:

120mm x 1 / 140mm x 1 (1 x 140mm fans included)

Rear fan cage:

80mm x 2

Radiator support

Front

120mm / 240mm / 360mm



Rear

120mm

Limitation of CPU cooler

Single CPU: 178mm

Dual CPU: 101–178mm *

Expansion Slot

8

Limitation of expansion card

Length: 454mm (without installing front fans, radiators)

Width: w/ GPU holder: 160mm ; w/o GPU holder: 185mm

Power Supply

Primary PSU slot:

PS2 (ATX) / Mini Redundant / 2U CRPS Redundant

Secondary PSU slot:

SFX (occupies 3.5" bracket)

Limitation of PSU

Primary PSU slot: 190mm (Removal of 3.5" drive cage eliminates PSU depth limitation)

Secondary PSU slot: 130mm

Front I/O Port

USB Type-C x 1

USB 3.0 x 2

LED Indicators

Power status x 1

HDD activity x 1

LAN activity x 2

Dimension

Incl. rear fan cage:

440mm (W) x 220mm (H) x 530mm (D), 51.3 liters

Excl. rear fan cage:

440mm (W) x 220mm (H) x 485mm (D), 46.95 liters

Net Weight

11.47 kg

Extra

Side switch for chassis intrusion security

Notes

* For dual CPU cooler installation, please refer to the manual for detailed limitations.

* See RMS series rail slide compatibility
