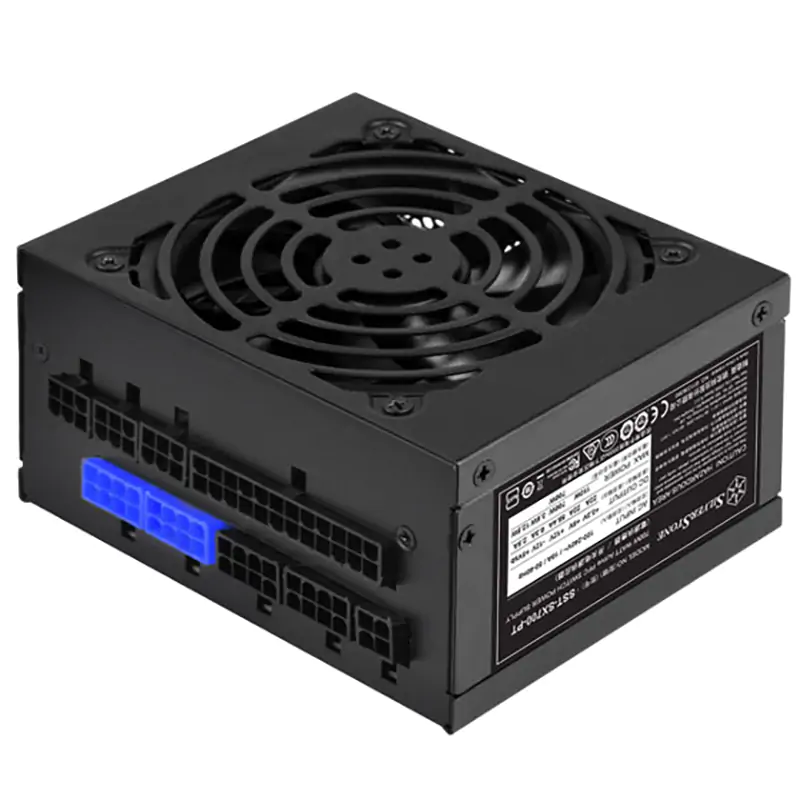

Silverstone 700w 80+ Platinum Modular SFX Power Supply (SST-SX700-PT)

Silverstone 700w 80+ Platinum Modular SFX Power Supply (SST-SX700-PT)
  • 52909_thumb_P_1574383211934
  • 52909_thumb_P_1574383233776
  • 52909_thumb_P_1574383234396
  • 52909_thumb_P_1574383234035
  • 52909_thumb_P_1574383234961
  • 52909_thumb_P_1574383235177
  • 52909_thumb_P_1574383235513
$198.50
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Carlingford New Out Of Stock
    • Crows Nest New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    • Osborne Park Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 24hrs and 57mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Silverstone 700w 80+ Platinum Modular SFX Power Supply (SST-SX700-PT)

? Support standard SFX form factor

? Silent running 92mm FDB fan with 18 dBA minimum

? All Japanese capacitors

? High efficiency with 80 PLUS Platinum certification

? Class-leading single +12V rail

? Strict ±3% voltage regulation and low ripple & noise

? 100% modular cables

? All cable with flexible flat arrays


1574383273209418

1574383273288575

1574383275484745

1574383276390820

1574383277338566

1574383277258928

1574383278428782

1574383279998877

1574383279182744


SPECIFICATIONS:

Model No.SST-SX700-PT
Max. DC Output700W
Power density882W per liter
Load Range

+3.3V+5V+12V+5VSB-12V
Max.(Amps)22A22A58.4A2.5A0.3A
Peak (Amps)/////
Min.(Amps)0A0A0A0A0A
Range (%)±3%±3%±3%±5%±10%
Line Reg.(%)±1%±1%±1%±1%±1%
Ripple(mVp-p)50mA50mA120mV50mV120mV
ColorBlack?Lead-Free Paint?
Combined +3.3V &   +5V110W
Combined +12V700W
Input Voltage90V ~ 264V
Input Frequency   Range47Hz ~ 63Hz
PFCActive PFC?PF>0.9 at full load?
Efficiency87% ~ 90% at 20% ~ 100% loading
MTBF100,000 hours
Operating   temperature0°C ~ 40°C
ProtectionOver current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors1 x 24 / 20-Pin motherboard connector   (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
2 x 8 / 6-Pin PCIE connector (400mm / 150mm)
2 x 8 / 6-Pin PCIE connector (550mm / 150mm)
6 x SATA connector ("300mm / 220mm /   100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm /   200mm)
1 x 4-Pin Floppy connector (100mm)
Cooling SystemSingle 92mm FDB fan
Form factorSFX
Noise Level18 dBA minimum
Dimension125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
Weight0.96 Kg
Certification80 PLUS Platinum
OtherGPU Support list
Compatible with ATX12V v2.4


  • Product Name:
    Silverstone 700w 80+ Platinum Modular SFX Power Supply (SST-SX700-PT)
  • Model Number:
    SST-SX700-PT
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    5 Year
