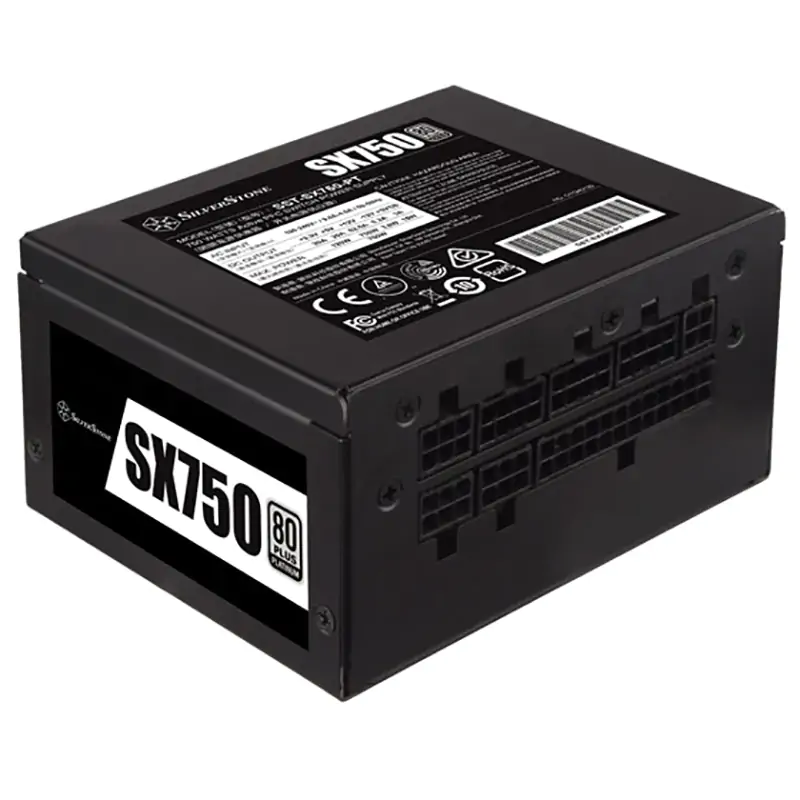

SilverStone 750W SFX 80+ Platinum Fully Modular SFX Power Supply (SX750-PT)

Max. DC Output

750W

Power density

882W per liter

Load Range

+3.3V

+5V

+12V

+5VSB

-12V

Max.(Amps)

20A

20A

62.5A

3A

0.3A

Peak (Amps)

/

/

/

/

/

Min.(Amps)

0A

0A

0A

0A

0A

Range (%)

±3%

±3%

±3%

±5%

±10%

Line Reg.(%)

±1%

±1%

±1%

±1%

±1%

Ripple(mVp-p)

40mV

40mV

80mV

50mV

80mV

Model (on safety)

SST-SX750-PT

Color

Black（Lead-Free Paint）

Combined +3.3V   & +5V

120W

Combined +12V

750W

Input Voltage

90V ~ 264V

Input Frequency   Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

87% ~ 90% at 20%   ~ 100% loading

MTBF

100,000 hours

Operating   temperature

0°C ~ 40°C

Protection

Over Power   Protection

Over Voltage   Protection

Short Circuit   Protection

Over Temperature   Protection

Over Current   Protection

Connectors

1 x 24 / 20-Pin   motherboard connector（300mm）

1 x 8 / 4-Pin EPS   / ATX 12V connector（400mm）

2 x 8 / 4-Pin EPS   / ATX 12V connector（400mm / 150mm）

4 x 8 / 6-Pin   PCIE connector（”400mm / 150mm” x   2）

8 x SATA   connector（”300mm / 200mm /   100mm / 100mm” x 2）

3 x 4-Pin   Peripheral connector（300mm / 200mm /   200mm）

Cooling System

Single 92mm dual   ball bearing fan

Form factor

SFX

Noise Level

0 dBA minimum

Dimension

125 mm (W) x 63.5   mm (H) x 100 mm (D)

4.92" (W) x   2.5" (H) x 3.94" (D)

Weight

1.01 Kg

Certification

80 PLUS Platinum

Other

GPU Support list

Compatible with   ATX12V v2.4
