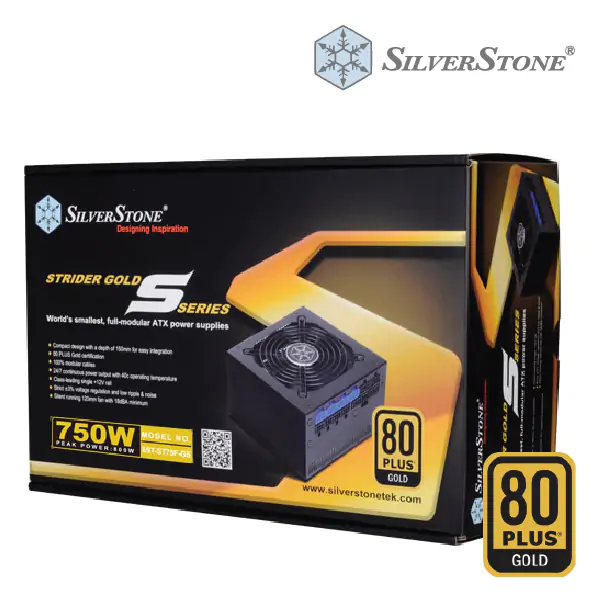

SilverStone 750W Strider 80+ Gold Modular Power Supply (ST75F-GS)

SilverStone Strider Gold S 750W PSU (SST-ST75F‑GS): ultra‑compact 150 mm depth, 80 PLUS Gold (88‑91% efficiency), 100% modular, single high‑amp +12 V rail, ±3% regulation, low ripple, silent 120 mm fan (≥18 dBA), 24/7 @40 °C operation.

SilverStone 750W Strider 80+ Gold Modular Power Supply (ST75F-GS)
  • 19278
$134.50
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post Out Of Stock
    QLD Pickup & Post
    • Post Out Of Stock
    • Mansfield Robot Super StoreIcon 3 Out Of Stock
    • Milton Out Of Stock
    • Eight Mile Plains Out Of Stock
    • Chermside Out Of Stock
    • Maroochydore Out Of Stock
    • Southport Out Of Stock
    • Hillcrest Out Of Stock
    NSW Pickup & Post
    • Post Out Of Stock
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    • West Ryde Out Of Stock
    • Ultimo Out Of Stock
    • Auburn Out Of Stock
    • Annandale Out Of Stock
    • Parramatta New Out Of Stock
    • Mosman New Out Of Stock
    • Hurstville New Out Of Stock
    • Carlingford New Out Of Stock
    • Crows Nest New Out Of Stock
    • Goulburn New Out Of Stock
    VIC Pickup & Post
    • Post Out Of Stock
    • Mulgrave Robot Super StoreIcon 3 Out Of Stock
    • Mitcham Out Of Stock
    • Essendon Out Of Stock
    • Dandenong South Out Of Stock
    ACT Pickup
    • Fyshwick Out Of Stock
    SA Pickup & Post
    • Post Out Of Stock
    • Croydon Robot Super StoreIcon 3 Out Of Stock
    • Holden Hill Out Of Stock
    • Adelaide CBD Icon 3 Out Of Stock
    WA Pickup & Post
    • Post Out Of Stock
    • Belmont Robot Super StoreIcon 3 Out Of Stock
    • Balcatta Out Of Stock
    • Osborne Park Out Of Stock
    TAS Post
    • Post Out Of Stock
    • Glenorchy

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 35hrs and 48mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.




To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels.

     The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world™s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40Ć’ continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.


   SPECIAL FEATURES

  • Compact design with a depth of 150mm for easy integration
  • 80 PLUS Gold certification
  • 100% modular cables
  • 24/7 continuous power output with 40Ć’ operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Silent running 120mm fan with 18dBA minimum



Model No.SST-ST75F-GS
Max. DC Output750W (Peak 800W)
 Load Range         +3.3V+5V+12V+5VSB-12VMax.(Amps)22A25A62A3.5A0.3AMin.(Amps)0.5A0.3A1A0.1A0ARange (%)±3%±3%±3%±5%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)50mV50mV120mV50mV120mV
combined +3.3, +5V150W
combined +12V744W
Input Voltage90V~264V
Input Frequency Range47Hz ~ 63Hz
PFCActive PFC.ˆPF>0.95 at Full Load‰
Efficiency88%~91% at 20%~100% loading
MTBF100,000 hours
Operating temperature0°C ~ 40°C
ProtectionOver current protection
   Over power protection
   Over voltage protection
   Over Temperature Protection
   Under voltage protection
   Short circuit protection
Connectors1 x 24 / 20-Pin motherboard connectorˆ550mm‰
   1 x 8 / 4-Pin EPS / ATX 12V connectorˆ750mm‰
   4 x 8 / 6-Pin PCIE connectorˆ550mm‰
   8 x SATA connectorˆ600mm / 150mm / 150mm / 150mmÂť x 2‰
   6 x 4-Pin Peripheral connector ˆ600mm / 150mm / 150mmÂť x 2‰
   2 x 4-Pin Floppy connectorˆ600mm / 150mm / 150mm / 150mmÂť x 2‰
ColorBlack (lead-free paint)
Cooling SystemSingle 120mm silent fan
Noise Level18 dBA minimum
Dimension150 mm (W) x 86 mm (H) x 150 mm (D)
Weight2.5 kg
Form factorATX
Certification80 PLUS Gold
OtherGPU Support list
   Haswell CPU support

* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.

19278
  • Product Name:
    SilverStone 750W Strider 80+ Gold Modular Power Supply (ST75F-GS)
  • Model Number:
    ST75F-GS
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    5 Year
