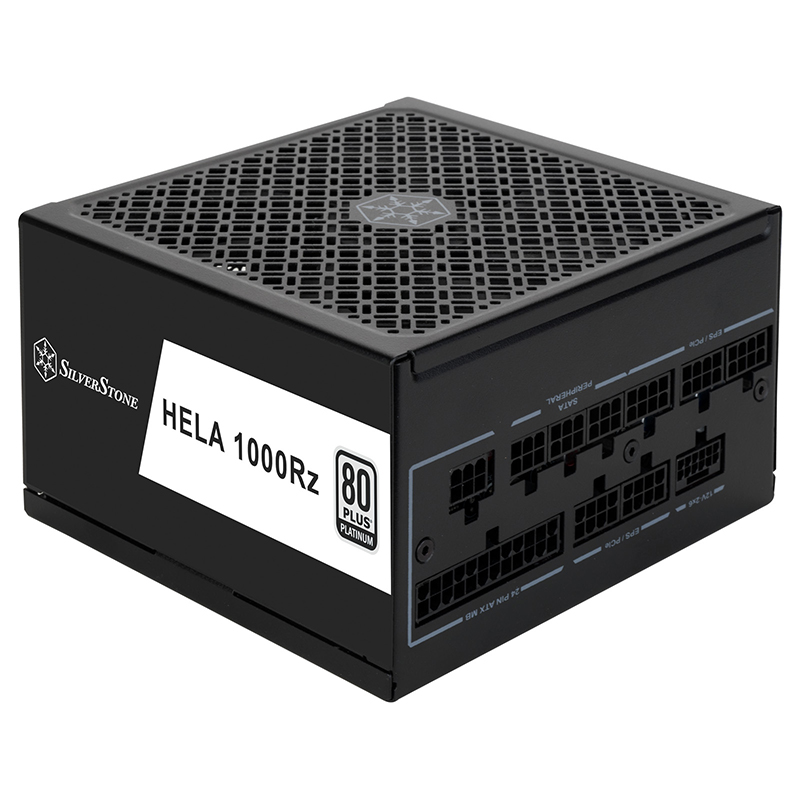

SilverStone HELA 1000Rz 1000W 80+ Platinum ATX 3.1 and PCIe 5 Fully Modular ATX Power Supply (SST-HA1000R-PM)

1000W ATX PSU in black, 80 PLUS Platinum (89‑92% efficiency), active PFC (PF>0.9), 553.5 W/L power density, 135 mm FDB fan at 18 dBA, 5×PCIe, 8×SATA, 2×8‑pin EPS, 1×24‑pin, 110 W +3.3/5V, 999.6 W +12V, full over‑/short‑circuit protection.

SilverStone HELA 1000Rz 1000W 80+ Platinum ATX 3.1 and PCIe 5 Fully Modular ATX Power Supply (SST-HA1000R-PM)
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-11
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-4
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-3
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-5
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-7
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-6
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-8
  • Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-9
$239.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post In Stock
    QLD Pickup & Post
    • Post In Stock
    • Mansfield Robot Super StoreIcon 3 In Stock
    • Milton 1-2 Hours
    • Eight Mile Plains In Stock
    • Chermside 2-3 Hours
    • Maroochydore Next Business Day
    • Southport Next Business Day
    • Hillcrest 2-3 Hours
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 1-2 Days
    • West Ryde 1-2 Days
    • Ultimo 1-2 Days
    • Auburn 1-2 Days
    • Annandale 1-2 Days
    • Parramatta New 1-3 Days
    • Mosman New 1-3 Days
    • Hurstville New 1-3 Days
    • Carlingford New 1-3 Days
    • Crows Nest New 1-3 Days
    • Goulburn New 2-3 Days
    VIC Pickup & Post
    • Post In Stock
    • Mulgrave Robot Super StoreIcon 3 2-3 Days
    • Mitcham 2-3 Days
    • Essendon 2-3 Days
    • Dandenong South 2-3 Days
    ACT Pickup
    • Fyshwick 2-3 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 4-6 business days
    • Holden Hill 4-6 business days
    • Adelaide CBD Icon 3 4-6 business days
    WA Pickup & Post
    • Post In Stock
    • Belmont Robot Super StoreIcon 3 8-10 business days
    • Balcatta 8-10 business days
    • Osborne Park 8-10 business days
    TAS Post
    • Post In Stock
    • Glenorchy

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 7hrs and 38mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-1
Power-Supply-PSU-SilverStone-HELA-1000Rz-1000W-80-Platinum-ATX-3-1-and-PCIe-5-Fully-Modular-ATX-Power-Supply-SST-HA1000R-PM-2



SPECIFICATIONS:

Color

Black (lead-free paint)

Max. DC Output

1000W

Power density

553.5 W/L

Combined +3.3V & +5V

110W

Combined +12V

999.6W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

89% ~ 92% (at 20% ~ 100% loading)

MTBF

100,000   hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection

Over current protection

Over voltage protection

Short circuit protection

Over Temperature protection

Connectors

1 x 24/20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

1 x 12+4-Pin 12V-2x6 connector

5 x 8 / 6-Pin PCIe connectors

8 x SATA connector

4 x 4-Pin Peripheral connector

Cooling System

Single 135mm FDB fan

Noise Level

18 dBA min.

Certification

80 PLUS Platinum

Form factor

ATX

Dimension

150mm (W) x 86mm (H) x 140mm (D)

Other

GPU Support list

Note

This PSU’s motherboard connector includes a 4pin sense wire that needs to be   connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.




  • Product Name:
    SilverStone HELA 1000Rz 1000W 80+ Platinum ATX 3.1 and PCIe 5 Fully Modular ATX Power Supply (SST-HA1000R-PM)
  • Model Number:
    SST-HA1000R-PM
  • Brand:
    SilverStone SilverStone
  • Warranty Period:
    5 Year
