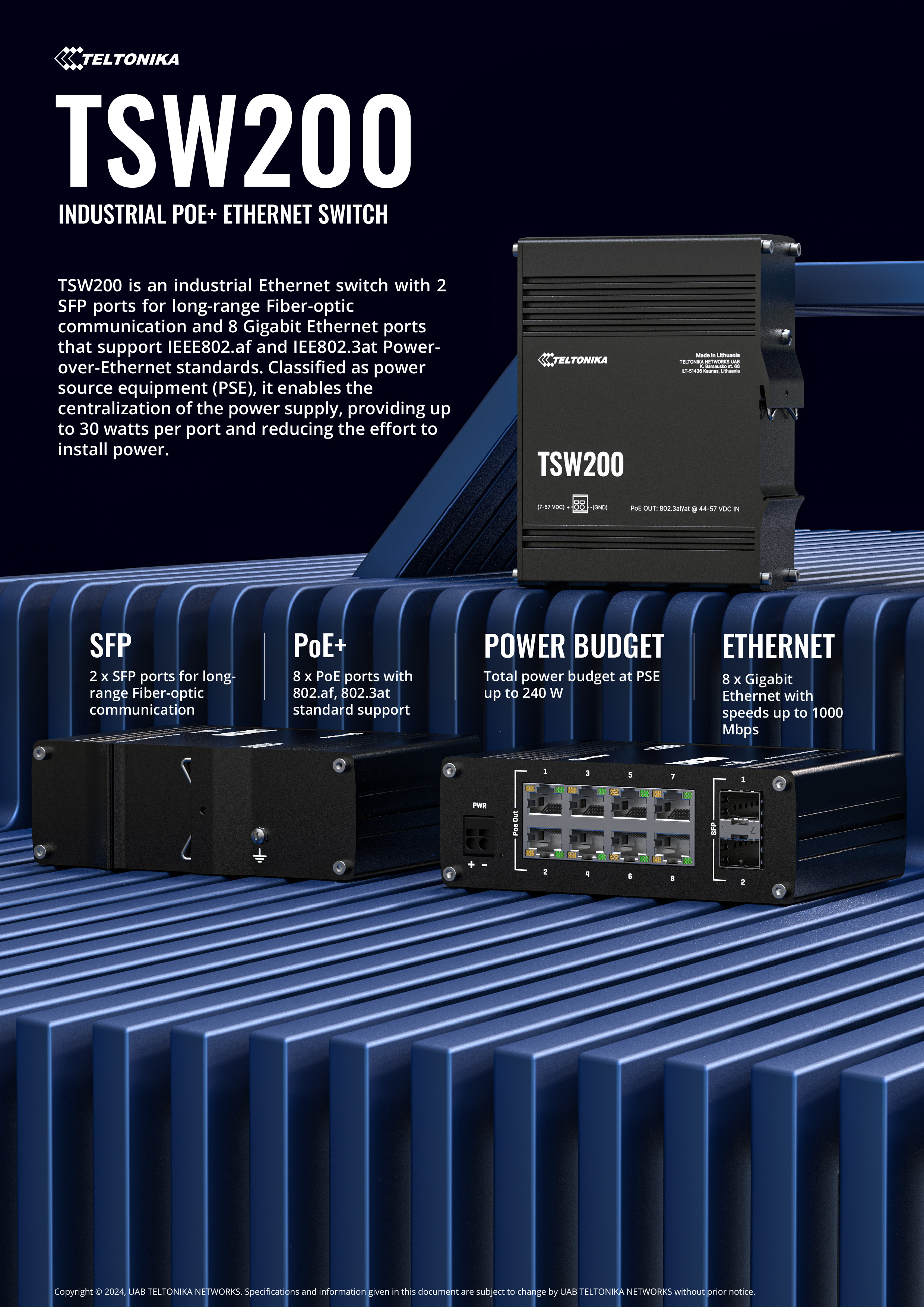

ETH

8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Fibre

2 x SFP ports

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class A conformance (available with optional order code)

POE OUT

PoE ports

Port 1 - 8

PoE standards

802.3af and 802.3at Alternative A (From batch 42)

802.3af and 802.3at Alternative B (From batch 1-41)

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

240 W

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

POWER

Connector

2-pin industrial DC power socket

Input voltage range

7 – 57 VDC

PoE-Out input voltage range

44 – 57 VDC

Power consumption

Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W

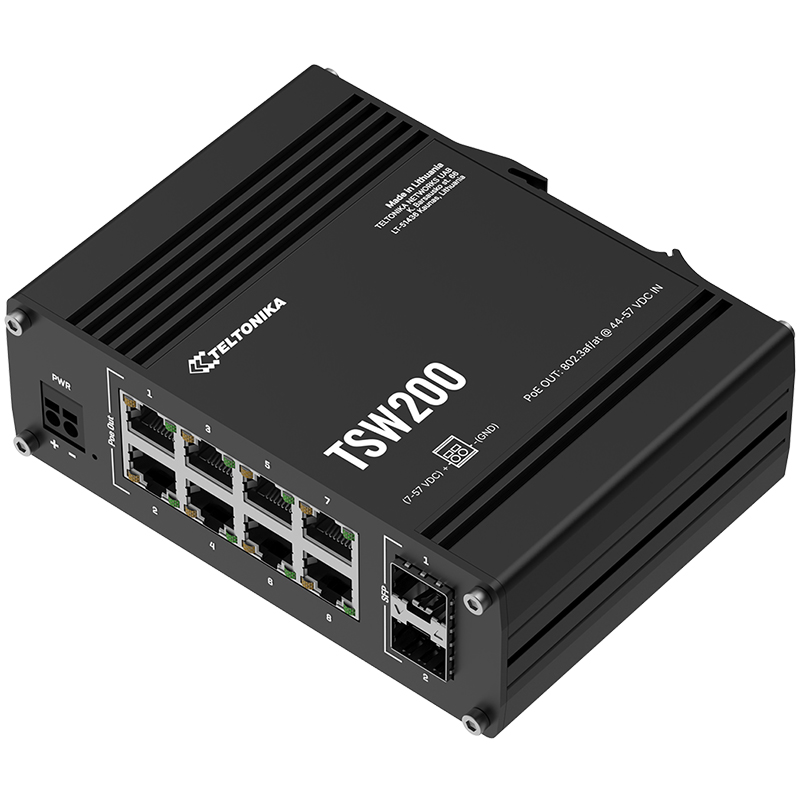

PHYSICAL INTERFACES

Ethernet

8 x RJ45 ports, 10/100/1000 Mbps

Fibre

2 x SFP ports

Status LEDs

1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material

Full aluminum housing

Dimensions (W x H x D)

132 x 44.2 x 95.1 mm

Weight

517 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

OPERATING ENVIRONMENT

Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

REGULATORY & TYPE APPROVALS

Regulatory

CE, UKCA, CITC, ANRT, FCC, IC, CB

EMC EMISSIONS & IMMUNITY

Standards

EN 55032:2015 + A1:2020

EN 55035:2017 + A11:2020

EN IEC 61000-3-2:2019 + A1:2021

EN 61000-3-3:2013 + A1:2019

ESD

EN 61000-4-2:2009

Radiated Immunity

EN IEC 61000-4-3:2020

EFT

EN 61000-4-4:2012

Surge Immunity (AC Mains Power Port)

EN 61000-4-5:2014 + A1:2017

CS

EN 61000-4-6:2014

DIP

EN IEC 61000-4-11:2020

SAFETY

Standards

IEC 62368-1:2018

EN IEC 62368-1:2020+A11:2020
