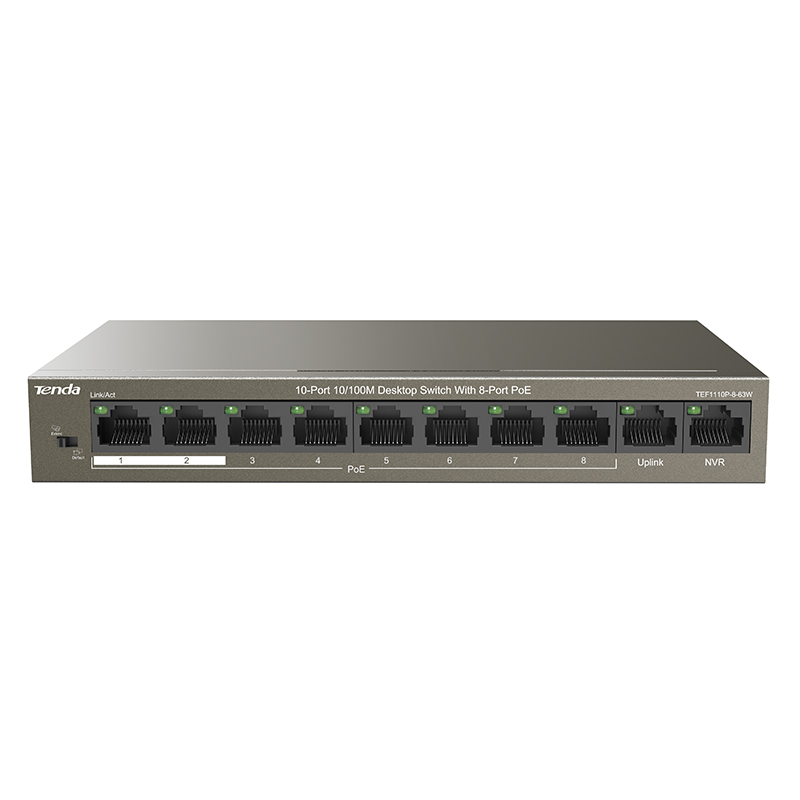

Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)

8‑port 10/100 Mbps PoE (IEEE 802.3af/at) + 2 data ports, 1.6 Gbps store‑and‑forward switching, 1.48 Mpps, 58 W PoE budget, 10 link/ack LEDs + power LED, desktop/wall mount, 177.5×104×26 mm, CAT5e recommended.

Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)
  • Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-5
  • Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-2
  • Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-3
$63.0 Question Mark
Was: $69.0  WAS Tips    8% Off!
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 29hrs and 51mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    Tenda 10-Port 10/100M Desktop Switch with 8-Port PoE (TEF1110P-8-63W)
  • Model Number:
    TEF1110P-8-63W
  • Brand:
  • Warranty Period:
    3 Year

Description

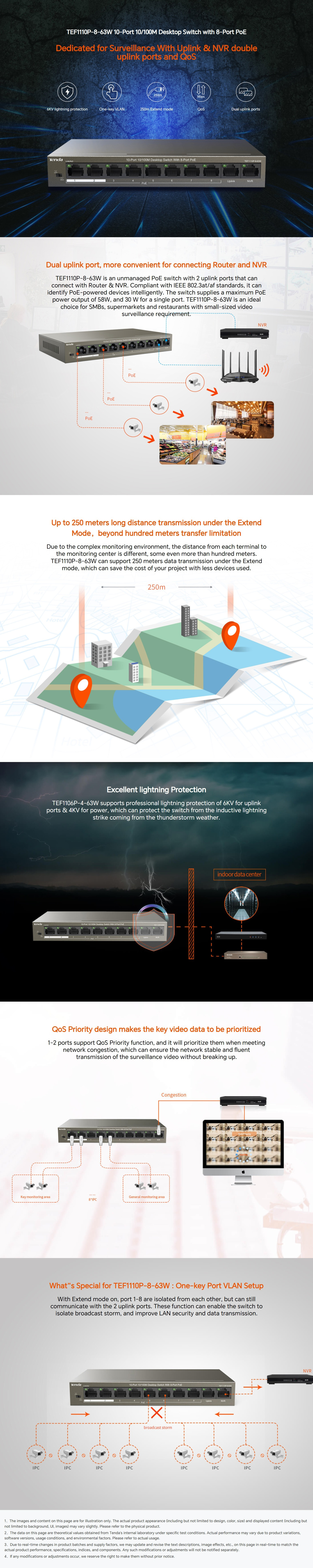

Switches-Tenda-10-Port-10-100M-Desktop-Switch-with-8-Port-PoE-TEF1110P-8-63W-1



SPECIFICATIONS:

HARDWARE


Network standards

IEEE 802.3/3u/3x, IEEE 802.3af/at

LED Indicator

10* Link/Ack LED indicators

1 * Power LED indicator

Interfaces

8 * 10/100 Base-TX Ethernet ports (Data/Power)

2 * 10/100 Base-TX Ethernet ports (Data)

Transmission media

Recommended: CAT5/5e UTP or better

Dimension

177.5mmx104.0mmx26.0mm

Level of protection

Lightning protection for ports: 6KV

Lightning protection for power: 4KV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1.6 Gbps

Packet forwarding rate

1.48Mpps

Buffer

448K

MAC address table

1K

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 58W

Input voltage

100240V AC 50/60Hz

51V /1.25A DCPower Adapter

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting: non-support

Environment

Operating Temperature: 0~45

Storage Temperature: -40~70

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCCCERoHS

SOFTWARE


Functions

Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.

Extend Mode: VLAN isolation is enabled. Port 1-8 will be isolated respectively (10/100Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps)
