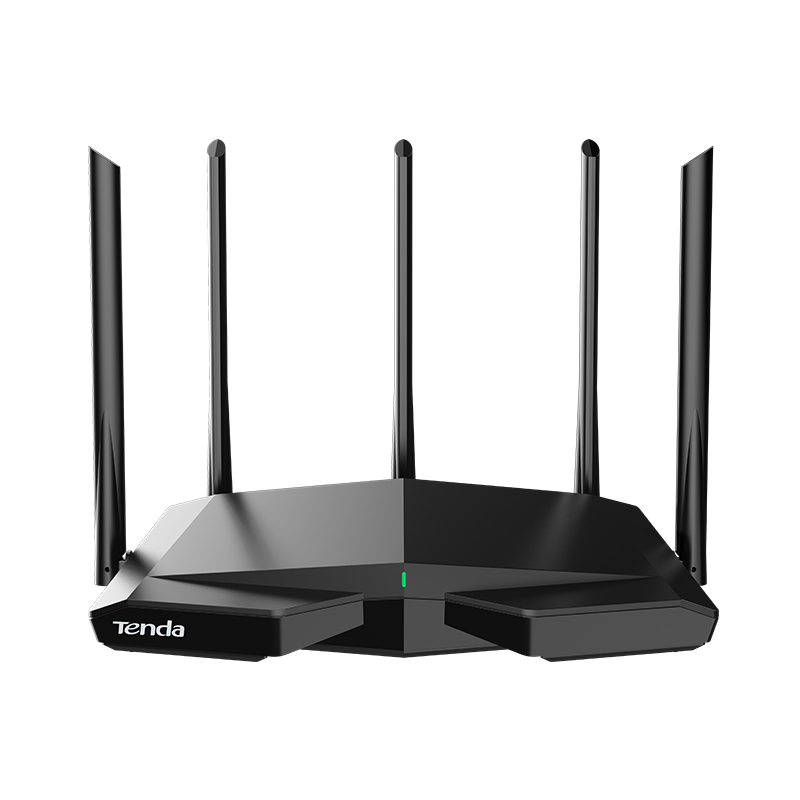

Tenda AXE5700 Tri-Band Gigabit Wi-Fi 6E Router
TX27 Pro is a Gigabit Wi-Fi 6E router designed for users who are looking for a performance experience. It supports Wi-Fi 6E, which can bring more bandwidth, faster speeds, and near-zero latency. With a concurrent rate of up to 5665 Mbps (6GHz: 2402 Mbps, 5GHz: 2402 Mbps, 2.4GHz: 861 Mbps). Besides, TX27 Pro is equipped with 7 high-power FEMS, Wi-Fi signal is more powerful to penetrate walls which means it can achieve a longer transmission distance. And It's equipped with Broadcom 1.7GHz quad-core CPU, delivering powerful computing power, and stable operation. With the OFDMA and MU-MIMO technology, more devices can access the Internet at the same time, the transmission efficiency is significantly improved, and the delay is greatly reduced.
SPECIFICATIONS:
HARDWARE FEATURES |
| Standard&Protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab | CPU | 1.7GHz quad-core processor | RAM/Flash | 128MB NAND flash and 256MB DDR3 SDRAM | Interface | 10/100/1000Mbps WAN ports*1 10/100/1000Mbps LAN ports*3 | Antenna | 5*6dbi external antennas | Button | 1*WPS/Reset button | Power | Input：AC 100-240V~50/60Hz Output：DC 12V 2A | LED indicator | SYS*1 | Dimensions | (L*W*H)261*168*60mm | WIRELESS FEATURES |
| Wireless Standards | WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 6E (802.11ax) | Frequency | 2.4GHz & 5GHz & 6GHz | Data Rate | 6GHz: 2402 Mbps 5GHz:2402Mbps 2.4GHz:861Mbps | Basic Functions | SSID broadcasting and hiding MU-MIMO Beamforming signal directional transmission technology | Wireless Security | 2.4G/5G：WPA2-PSK;WPA3-SAE/WPA2-PSK 6G：WPA3-SAE Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption | SOFTWARE FUNCTION |
| Internet Connection Type | PPPOE, Dynamic IP, Static IP | Network Protocol | IPv4&IPv6 | Operating Mode | Wireless Router Mode AP Mode Wireless Repeater（Client+AP,WISP） | DHCP | DHCP Server DHCP Client List DHCP Static IP Address Reservation and Allocation | Security | Client Filter Parental Control Remote Web Management | Firewall | ICMP Flood Attack Defense TCP Flood Attack Defense UDP Flood Attack Defense Ignore Ping Packet From WAN Port | DDNS | NO-IP, Oray.com | VPN | IPSec Transparent Transmission PPTP Transparent Transmission L2TP Transparent Transmission PPTP VPN Server PPTP VPN Client L2TP VPN Client | Features | Alexa WiFi+(Mesh System) TR069 VLAN ID Smart diagnosis | Other Function | IPTV Smart Traffic Prioritisation PPPoE Username/password Clone Tenda App Bandwidth Control Guest Network System Log MAC Clone Backup & Restore configurations Support automatic access detection Firmware upgrade online Firmware upgradeable via browser | OTHER FEATURES |
| Temperature | Operating Temperature:0℃ ~ 40℃ Storage Temperature : -40C ~70℃ | Humidity | Operating Humidity : 10 %~90% RH non-condensing Storage Humidity : 5 %~ 90%RH non-condensing | Certifications | CE, RoHS, FCC | Package Content | Wireless Router*1 Ethernet Cable*1 Power Adapter*1 Installation Guide*1 |
|
