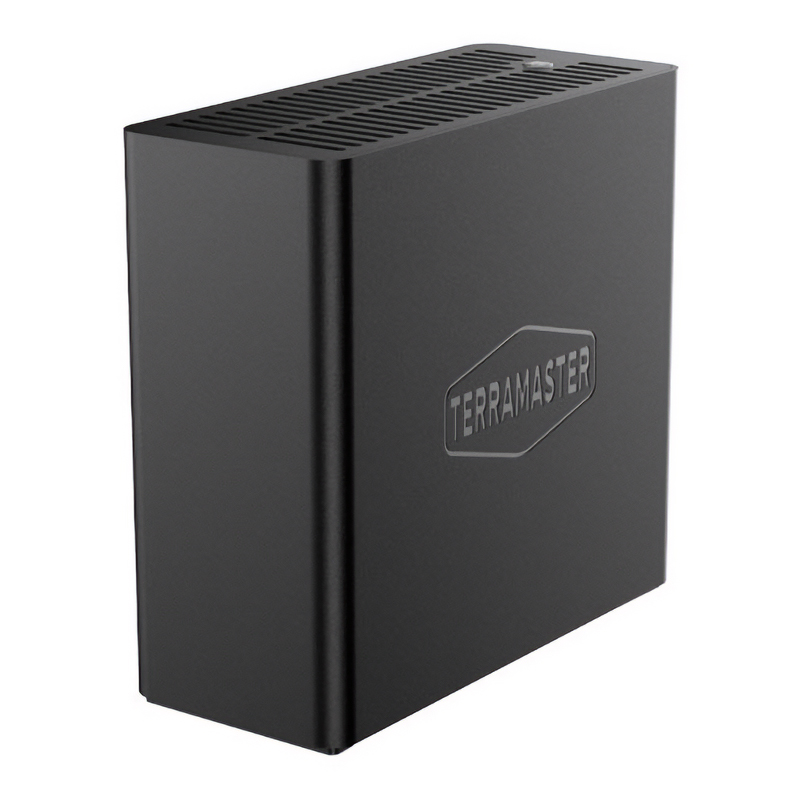

TerraMaster D4 SSD 4 Bay NVMe M.2 SSD Enclosure (D4 SSD)

TerraMaster D4 SSD 4 Bay NVMe M.2 SSD Enclosure (D4 SSD)
  • Enclosures-Docking-TerraMaster-D4-SSD-4-Bay-NVMe-M-2-SSD-Enclosure-D4-SSD-6
  • Enclosures-Docking-TerraMaster-D4-SSD-4-Bay-NVMe-M-2-SSD-Enclosure-D4-SSD-3
  • Enclosures-Docking-TerraMaster-D4-SSD-4-Bay-NVMe-M-2-SSD-Enclosure-D4-SSD-4
$499.0
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is back in stock?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 5hrs and 33mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Specifications

  • Product Name:
    TerraMaster D4 SSD 4 Bay NVMe M.2 SSD Enclosure (D4 SSD)
  • Model Number:
    D4 SSD
  • Brand:
  • Warranty Period:
    2 Year

Description

Enclosures-Docking-TerraMaster-D4-SSD-4-Bay-NVMe-M-2-SSD-Enclosure-D4-SSD-1
Enclosures-Docking-TerraMaster-D4-SSD-4-Bay-NVMe-M-2-SSD-Enclosure-D4-SSD-2



SPECIFICATIONS:

STORAGE


Disk Slot Number

4

Compatible Disk Types

PCIe NVMe M.2 2280 SSD

File System

NTFS, APFS, Mac OS, FAT32, EXT4, exFAT

Maximum Internal Raw Capacity

32 TB (8TB SSD * 4)

RAIDs Supported

SINGLE DISK

USB

USB4 40Gbps

READING/WRITING SPEED (MAX.)


Reading Speed (max.)

3257 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1600MB/s (Samsung 990 Pro 4TB*1)

Writing Speed (max.)

3192 MB/s (Samsung 990 Pro 4TB*4_RAID0); 1500MB/s (Samsung 990 Pro 4TB*1)

APPEARANCE


Size (H*W*D)

138 x 60 x 140 mm

Packaging Size (H*W*D)

185 x 172 x 152 mm

Weight

Net weight: 392g, Gross Weight: 891g

OTHERS


System fan

50 x 50 x 10mm 2PCS

Fan mode

Smart

Noise Level

19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m)

POWER SUPPLY


Power Supply

24 W

AC Input Voltage

100V to 240V AC

Current Frequency

50/60 Hz, Single Phase

Power Consumption

15.0 W (Fully loaded Seagate 2TB M.2 SSDs in read/write state)

6.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation)

ENVIRONMENT TEMPERATURE


Working Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-5°F ~ 140°F)

Relative Humidity

5% ~ 95% RH

Supported OS

Mac OSWindows 11(24H2 or later version)

Certificate

CE, FCC, CCC, KC

Environment

RoHS compliance

PACKAGE CONTENTS


Package Contents

Host unit (x1)

USB4 Cable C to C 0.8m (x1)

Quick Installation Guide (x1)

Power adapter (x1)

Screws (several)

Limited Warranty Note (x1)
