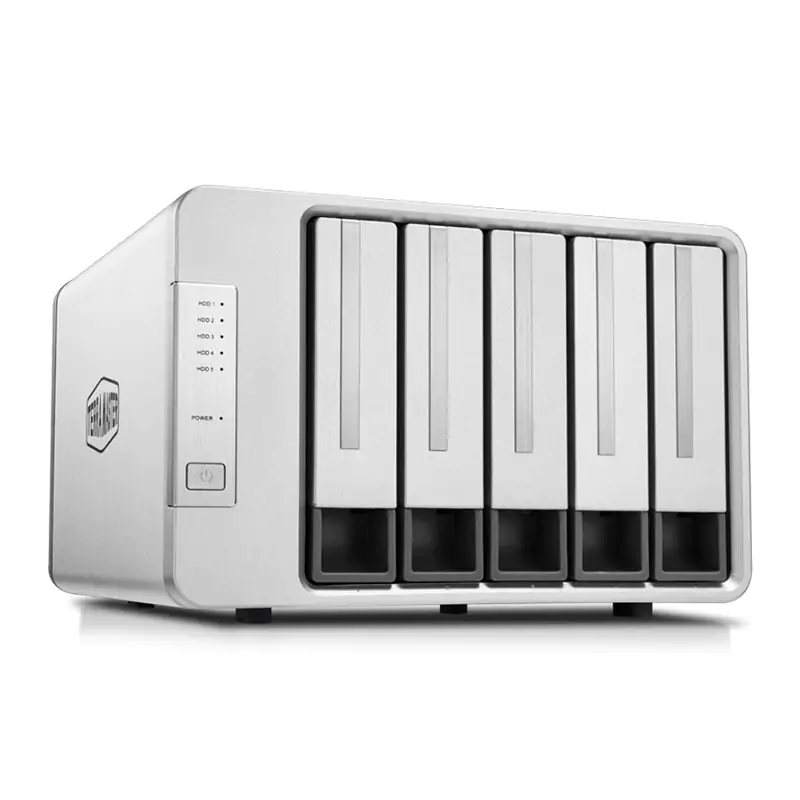

TerraMaster D5-300 5 Bay USB-C RAID Enclosure

TerraMaster D5-300 5 Bay USB-C RAID Enclosure
  • TerraMaster D5-300 5 Bay USB-C RAID Enclosure
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want to be notified when this item is available for order?

Please enter a valid email address

By clicking Let me know, you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 41hrs and 20mins

Question Mark

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Click & Collect.


  • Product Name:
    TerraMaster D5-300 5 Bay USB-C RAID Enclosure
  • Model Number:
  • Brand:
  • Manufacturer Warranty:
    2 Year
  • Description


    USB Type-C interface

    D5-300 equipped with brand new USB type-C high-speed interface and compatible with Mac and Windows computers.

    Real super speed with USB3.0 Transport Protocol!

    D5-300 adopts USB3.0 5Gbps) SUPERSPEED protocol. In RAID 0, with desktop SSHD hard drives, the speed is up to 210MB/s (Read, max), and 190MB/s (Write, max).

    Up to 40TB storage capacity

    D5-300 can support five (5) SATA hard drives, is compatible with 8TB 3.5 inch SATA hard drive, and has a total storage capacity up to 40TB. (Note: users need to purchase their own hard drives. These are not included.)

    Compatible with various hard drives

    D5-300 is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5 SATA hard drives, and 2.5 SATA SSD.

    Support multiple RAID

    D5-300 Support RAID0 and RAID5 ,do not support JBOD,SingleDisk,RAID1 and RAID10.

    Aluminum Enclosure

    D5-300 adopts aluminum enclosure and low-noise fan, which is firm and reliable, of good heat dissipation, and low noise.

    Various applications

    D5-300 is usable for various data application including video editing, photo backup, research and development, technical document preservation, file backup, music library, financial records, video surveillance, and corporate data storage.

    Offical Product  LinkOpen Link
    Storage Drive Bay(s)
    Compatible Drive Type
    2x 3.5 or 2.5 SATA 6Gb/s, SATA 3Gb/s Hard disk or SSD
    supports hard disk group mode
    Support RAID0 and RAID5 ,do not support JBOD,SingleDisk,RAID1 and RAID10
    Maximum Internal Raw Capacity
    40 TB (8 TB HDD * 5) (Capacity may vary by RAID types)
    External Ports Data transmission interface
    USB type-C x 1
    Data transmission cable
    USB Type-A - USB Type-C›Length1M
    Power Port
    1ˆDC IN 12V‰
    File System Internal Drives
    FAT 32/16NTFS
    Read/write speed(max‰
    Read210MB/sWrite190MB/s (2 SSHD RAID0 mode)
    Appearance Size (Height X Width X Depth)
    227 x 225 x 136 mm
    Housing material
    net weight: 2.16 Kg
    Power AC Input Power Voltage
    100V to 240V AC
    Power Frequency
    50/60 HZ, Single Phase
    Power Consumption
    Power Supply Unit / Adapter
    Please check the detailed specifications on the power adapter.
    Environment Temperature Operating Temperature
    5°C to 35°C (40°F to 95°F)
    Storage Temperature
    -10°C to 70°C (15°F to 155°F)
    2 Years
    Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
    Environment RoHS Compliant
    Packaging Content
    Main Unit X 1

    Welcome Note X 1

    Accessory Pack X 1

    AC Power Adapter X 1

    Adapter Cable * 1

    USB Type-Cable * 1

    * Specifications are subject to change without notice.
      * Specifications may vary.
      * The product picture(s) is only for your reference, it may differ from the actual product.
