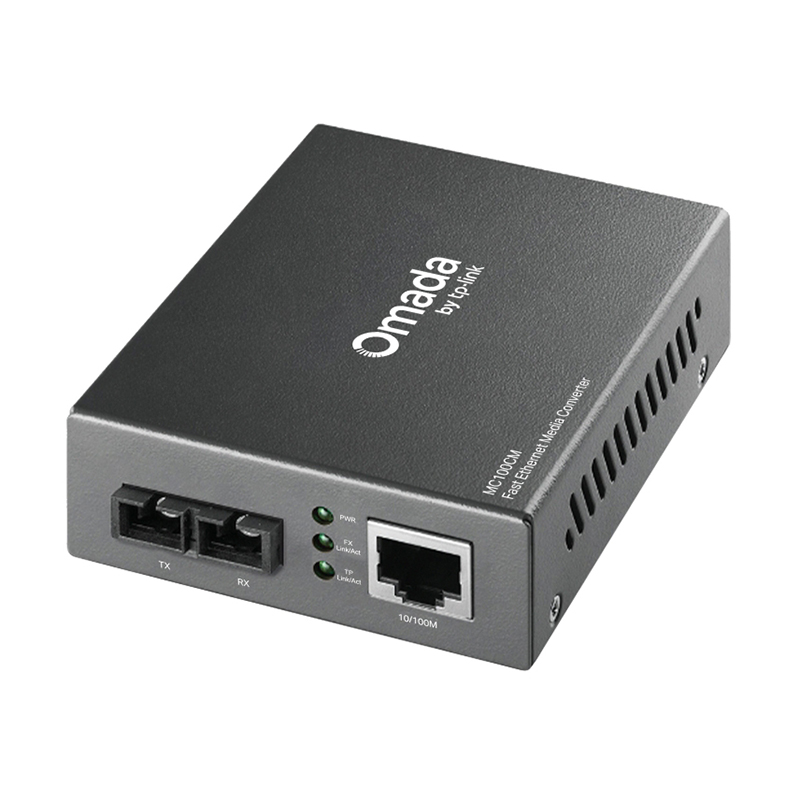

TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30 (MC100CM UN/6.30)

TP‑Link MC100CM media converter: 100BASE‑FX to 100BASE‑TX, 2× 100M SC/UPC, 1× 10/100M RJ45 (Auto‑MDI/MDIX), 1310 nm LX laser, up to 2 km multimode, auto‑negotiates duplex, 9 V/0.6 A, 1.19 W max.

TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30 (MC100CM UN/6.30)
  • Fiber-Convertor-TP-Link-10-100M-RJ45-to-100M-Multi-mode-SC-Fiber-Converter-UN-6-30-MC100CM-UN-6-30-2
$33.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

    • DELIVERY
    • Post In Stock
    QLD Pickup & Post
    • Post In Stock
    • Mansfield Robot Super StoreIcon 3 In Stock
    • Milton 1-2 Hours
    • Eight Mile Plains In Stock
    • Chermside 2-3 Hours
    • Maroochydore Next Business Day
    • Southport Next Business Day
    • Hillcrest 2-3 Hours
    NSW Pickup & Post
    • Post In Stock
    • Villawood Robot Super StoreIcon 3 In Stock
    • West Ryde 2-3 Hours
    • Ultimo 3-4 Hours
    • Auburn 2-3 hours
    • Annandale 3-4 Hours
    • Parramatta New 3-5 Hours
    • Mosman New 3-5 Hours
    • Hurstville New 3-5 Hours
    • Carlingford New 3-5 Hours
    • Crows Nest New 3-5 Hours
    • Goulburn New 1-3 Days
    VIC Pickup & Post
    • Post In Stock
    • Mulgrave Robot Super StoreIcon 3 2-3 Days
    • Mitcham 2-3 Days
    • Essendon 2-3 Days
    • Dandenong South 2-3 Days
    ACT Pickup
    • Fyshwick 1-3 Days
    SA Pickup & Post
    • Post In Stock
    • Croydon Robot Super StoreIcon 3 4-6 business days
    • Holden Hill 4-6 business days
    • Adelaide CBD Icon 3 4-6 business days
    WA Pickup & Post
    • Post In Stock
    • Belmont Robot Super StoreIcon 3 8-10 business days
    • Balcatta 8-10 business days
    • Osborne Park 8-10 business days
    TAS Post
    • Post In Stock
    • Glenorchy

Loading... Contact Store

   Same Day Dispatch   Question Mark

Order within 1hrs and 33mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.





SPECIFICATIONS:

Standards and Protocols

IEEE802.3i, IEEE802.3u

Basic Function

• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Full Duplex Flow Control (IEEE 802.3x)
• Half Duplex Flow Control (Backpressure)
• Extends fiber distance up to 2km

Interface

• 2× 100M SC/UPC ports
• 1× 10/100M RJ45 port (Auto MDI/MDIX)

Wave Length

1310nm

Network Media 10BASE-T

2-pair UTP/STP of Cat. 3 or above (≤100m)

Network Media 100BASE-T

2-pair UTP/STP of Cat. 5 or above (≤100m)

Dimensions ( W x D x H )

3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply

9V/0.6A

Max. Power Consumption

1.19W

LED

PWR, FX Link/Act, TP Link/Act

Safety & Emission

FCC, CE, RoHS

Package Content

• MC100CM
• Power Adapter
• Installation Guide

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing




  • Product Name:
    TP-Link 10/100M RJ45 to 100M Multi-mode SC Fiber Converter - UN/6.30 (MC100CM UN/6.30)
  • Model Number:
    MC100CM UN/6.30
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year
