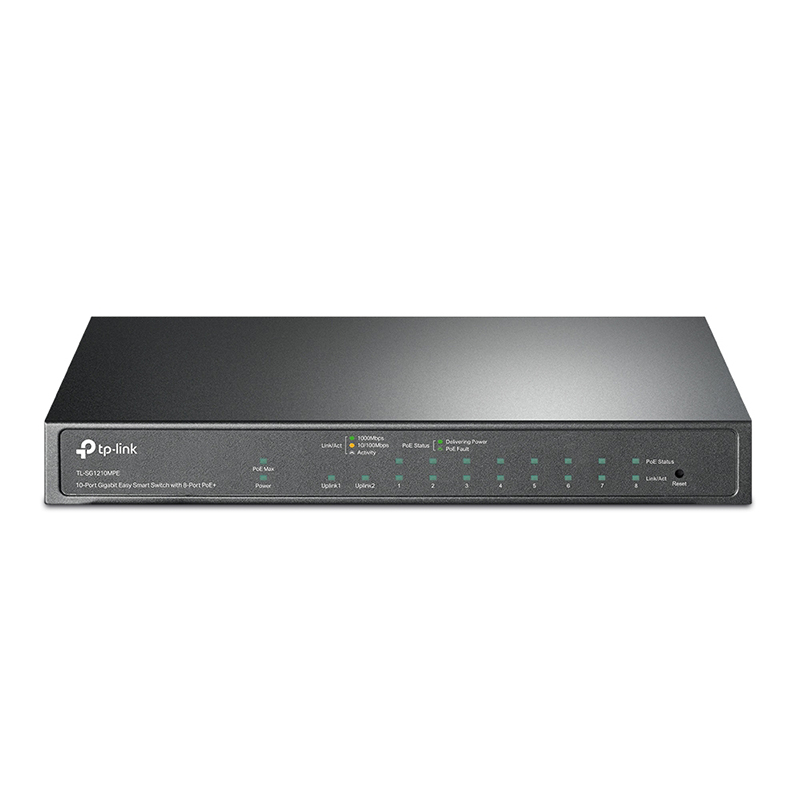

TP-Link 10 Port Gigabit Easy Smart Switch with 8 Port PoE+ - UN/3.40 (TL-SG1210MPE UN/3.40)

TP-Link 10 Port Gigabit Easy Smart Switch with 8 Port PoE+ - UN/3.40 (TL-SG1210MPE UN/3.40)
  • Switches-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-10
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-3
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-5
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-4
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-7
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-8
  • Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-6
$177.00
or 4x fortnightly payments of $330 with ZipPay
Learn more
- +
Want a stock alert?

Please enter a valid email address

By clicking 'Notify Me', you agree to our Terms & Conditions and to receive email updates and exclusive promotions, which you may unsubscribe from any time.

WishAdd to Wishlist

Buy Now, Pay Later:
Buy now with PayPal
   Click & Collect   Question Mark

Your store is set to:

Loading... Contact Store

   Monday Dispatch   Question Mark

Order within 63hrs and 18mins

Question Mark

Bell  Stock Levels May Vary

Stock is different at each store. To secure your item, order online.
Walk-ins are still welcome but stock isn’t guaranteed.

Our team is ready to help! Please contact us if you have any questions about product specifications, stock availability, or compatibility.

Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-1
Switches-and-Sockets-TP-Link-10-Port-Gigabit-Easy-Smart-Switch-with-8-Port-PoE-UN-3-40-TL-SG1210MPE-UN-3-40-2



SPECIFICATIONS:

HARDWARE FEATURES


Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface

9× 10/100/1000 Mbps RJ45 Ports

1× 1000 Mbps Combo SFP/RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 53.5 VDC/2.43 A)

PoE Ports (RJ45)

Standard: 802.3 af/at compliant

PoE Ports: Port 1- Port 8

PoE Power Budget: 123 W

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Max. Power Consumption

7.66 W (220V / 50Hz with no PD connected)

141.54 W (220V / 50Hz with 123 W PD connected)

Max. Heat Dissipation

26.12 BTU/h (220V / 50Hz with no PD connected)

482.65 BTU/h (220V / 50Hz with 123 W PD connected)

PERFORMANCE


Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Packet Forwarding Rate

14.88 Mpps

MAC Address Table

4 K

SOFTWARE FEATURES


Quality of Service

Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features

IGMP Snooping V1/V2/V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN

PoE

Extend Mode**

PoE Auto Recovery

Management Features

Web-based GUI

Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

OTHERS


Certification

FCC, CE, RoHS

Package Content

TL-SG1210MPE

Power Adapter

Installation Guide

Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90%RH non-condensing

Storage Humidity: 5%~95%RH non-condensing




  • Product Name:
    TP-Link 10 Port Gigabit Easy Smart Switch with 8 Port PoE+ - UN/3.40 (TL-SG1210MPE UN/3.40)
  • Model Number:
    TL-SG1210MPE UN/3.40
  • Brand:
  • Warranty Period:
    5 Year
